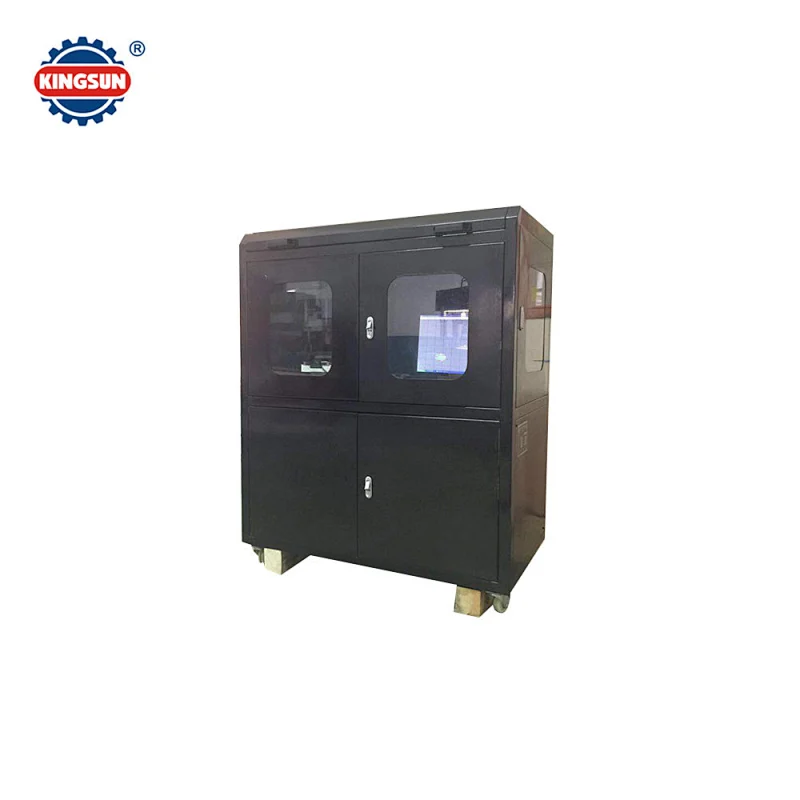

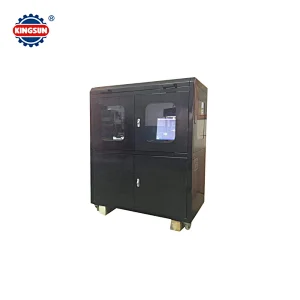

Laser Holographic Dot-matrix Machine
Laser Holographic Dot-matrix Machine

Laser Holographic Dot-matrix Machine

Model NO.

​​​​​​Laser Holographic Dot-Matrix Machine


  1. Digital laser holographic lithography plate-making system is an intelligent design and production system, with dynamic image processing and control system.
  2. With digital laser holographic lithography plate-making system, any letter and image can be designed in dynamic lattice image, which shaped into round, square, diamond, multi-part or curve and to be made as the original master; the laser image is dynamic in any viewing angle under any light.


Lithography area

X152 x Y152mm

Laser generator

Imported semi-conductor laser generator (optional)

Pixel point shape

Square, round, other

Image color separation

RGB, true color, Matte white, etc

Operation mode

PC interface

Lithography resolution

158-1270 dp adjustable

Min. angle of resolution

0.25 degree

Angle range

0-360 degree

Positioning precision

0.001 mm

Working speed

25-100 points/sec

Working mode

As per X or Y, or the shortest path(optimum)

Working control software


Treatment software


Control image

8-digital grayscale image, BMP or TIF

Control system

Step or servo control system (optional)

Working ambience

Temp: 20±3, Humidity: 30-50


220±10, 500W


700 x 600 x 580mm
