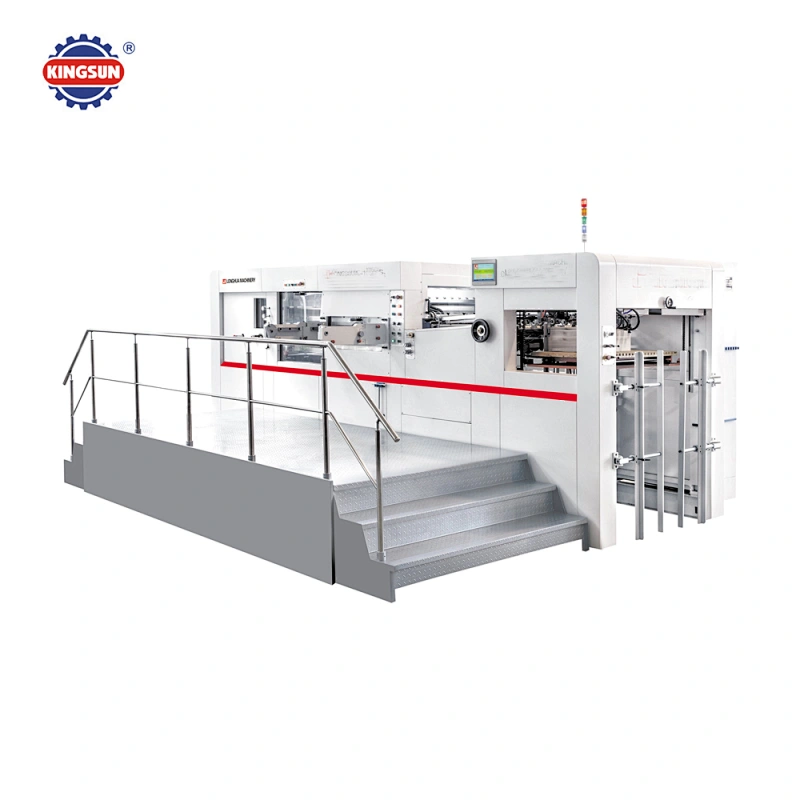

LH-1080E automatic creasing and die cutting machine
LH-1080E automatic creasing and die cutting machine
LH-1080E automatic creasing and die cutting machine

LH-1080E automatic creasing and die cutting machine

Model NO.
1050FH/FF
Quantity:

LH-1060E automatic creasing and die cutting machine

Product Description

Adopt programmable controller, it is incorporated with fully automatic feeding, die cutting, delivery, obstacle indicating, check and measuring.

Using unique cam intermittent construction designed by computer., which ensures die-cutting precision and gripper bars processing stability.

The main motor is controlled by transducer, which achieves step-less speed regulation and smooth operation.

The bearing and chain of main driving, PLC, transducer and all kinds of electric switches are imported with good quality.

Many sensors and safe devices are set on the machine to ensure the normal operation and human safety.

TECHNICAL PARAMETERS

Model

LH-1080E

Max paper size

1080*780mm

Min paper size

400*370mm

Max cutting size

1060*760mm

Max cutting speed

7500s/h

Die-cutting precision

±0.12mm

Sheet thickness

Cardboard:0.1-3mm

Corrugated paper≤4mm

Max working pressure

320T

Total power

16.65kw

Net weight

16.2T

Overall dimension

6850*3950*2160mm

Pre-delivery device


Inverter

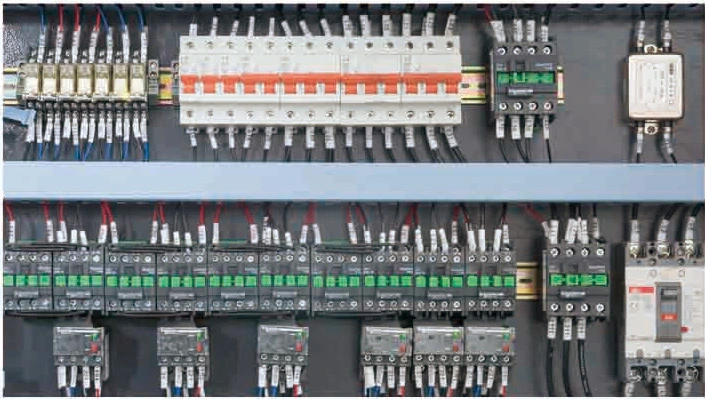

Electric appliance cabinet


Pneumatic clutch


Indexing drives


Company Information

Kingsun Company also boasts its 12 more years of experience in supplying a variety of printing and packaging machinery and materials, so we deliver goods worldwide, our teams are all university graduated and constantly with professional training with energetic and positive attitude, so we fully understand how to provide high-quality products and better services to our global customers. We continuously improve our organizational management, adopt the most advanced technologies and software system, so we have been keeping the pace with the leading position in the industry.

Kingsun Company has 15 more manufacturing factory bases, each factory focus on one or a few kind of specific printing and packaging machines production, as a result, we have the ability to meet different needs from different buyers, this way can take advantage of our machinery group and each of factory can play its own marketing or manufacturing strengths.

Our team has accumulated so many years of experience for printing and packaging machinery industries, we also have established a specialized after-sales service team and R&D team, so that we can provide our buyers with better machines and services.


FAQ

How to place an order with Kingsun Machinery

It is quite easy for the procedures of placing an order with Kingsun machinery. 1) Firstly our sales team (together with engineers) will discuss with you about the technical requirement, 2) After finalized the specification, we will issue you a proforma invoice or contract, then you make deposit and we start the production. 3) When we finish the production, we will send you video or photos for check, if everything is fine, we test run the equipment again before shipment and then prepare the shipment for you. 4) You make the payment, we ship the goods to the address you given. 5) You receive the machines, we start after sale service. For example, we send technician to visit your factory for installation etc.

What are the customers more care about?

Kingsun machinery has established good relationship with thousands of buyers from all around the world since 12 year ago. Good service and quality of equipment is most important for the buyers, we are focus on providing first class service for the buyers.

How does Kingsun company help you ?

We help you to choose suitable models, fit for your production. We are trust worthy company so you no need to worry about the safe of payment, no worry about machine quality and after sale services etc.

Why choose Kingsun company as your partner in China?

Professional service, honesty and reliable is our philosophy, win-win cooperation, we take much care of you and in view of long term relationship!
