Model NO.
HC-1500BL
Quantity:
Product Description

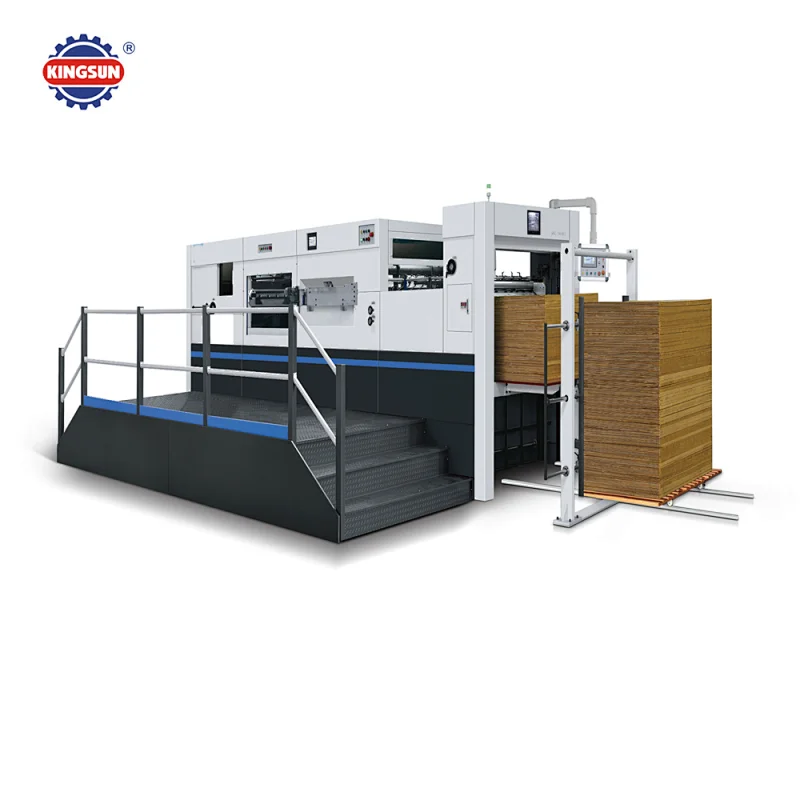

HC-BL Cheaper Semi-automatic Die Cutting Machine for corrugated

HC series semi-automatic die cutting machine is equipped with front conveyor delivery mechanism. The two groups of pressing wheels and two times positioning function will make the products more flat, and improve the accuracy and speed. The machine’s development is combined with advantages of similar products in domestic and over seas, is special equipment for packing products such as cartons and paper box.

1.Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. 2.Frontal , back and side registration mechanism ensures great precision of die –cutting .

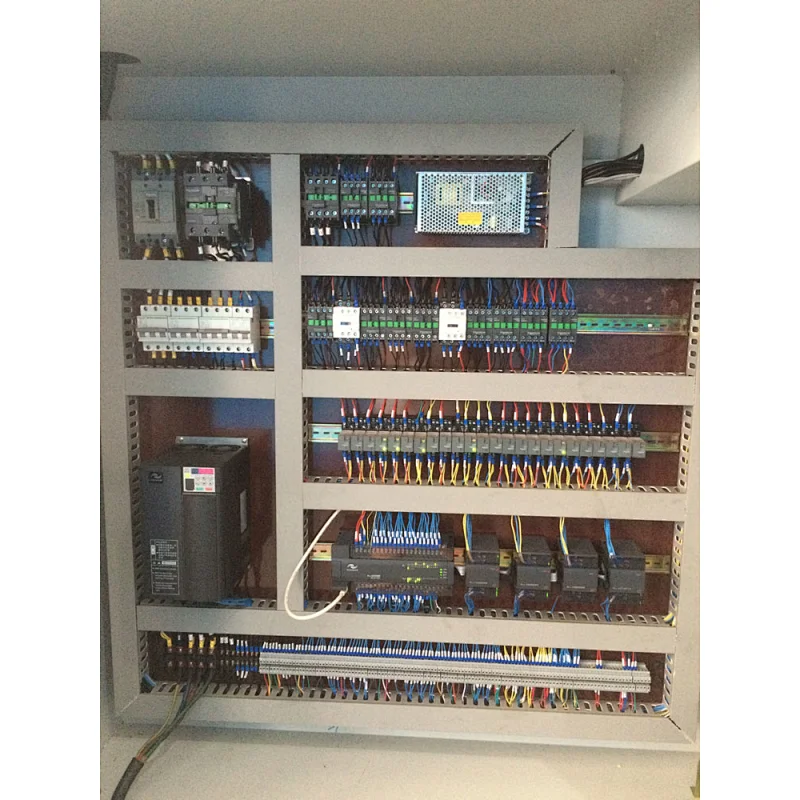

3.Other parts are adopted such as intermittent mechanism with high precision, air clutch, pneumatic locking

mechanism, programmable controller and man-machine interface.

4.The interface can display various digital information of machine such as working speed, amount of paper

processed, total running time,etc. It is easy to eliminate troubles according to the display of trouble shooting

5.Transducer is adopted to control the main motor in achieving step-less speed variation.

6. Optional: Stripping function .

Main Specifications:

Model

1100BL

1300BL

1500BL

1650BL

Max.Paper size

1100*790mm

1290*940mm

1500*1100mm

1650*1210mm

Min.Paper size

400*350mm

550*480m

m

550*480mm

650*550mm

Max.Die-cutting size

1070*770 mm

1280*930 mm

1490*1090mm

1620*1190mm

Max.Working speed

5000 sheeter/hour

4000 sheeter/hour

4000 sheeter/hour

3200 sheeter/hour

Paper Thickness

Cardboard more than 250g, corrugated less than 7mm

Corrugated :1-7mm.

Power

11 kw

13.5 kw

13.5 kw

19.7 kw

Max.Pressure

300Ton

300Ton

300Ton

300Ton

Machine Weight

14Ton

16Ton

18Ton

28Ton

Overall size

6700*4000*2300mm

7600*4400*2300mm

8000*4600*2300mm

8200*5000*2500mm

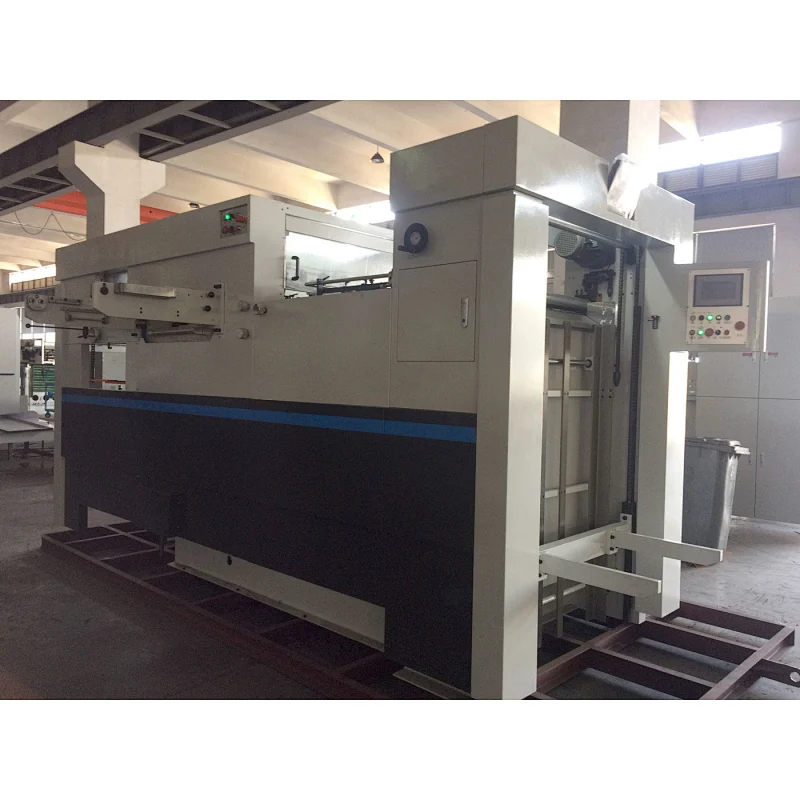

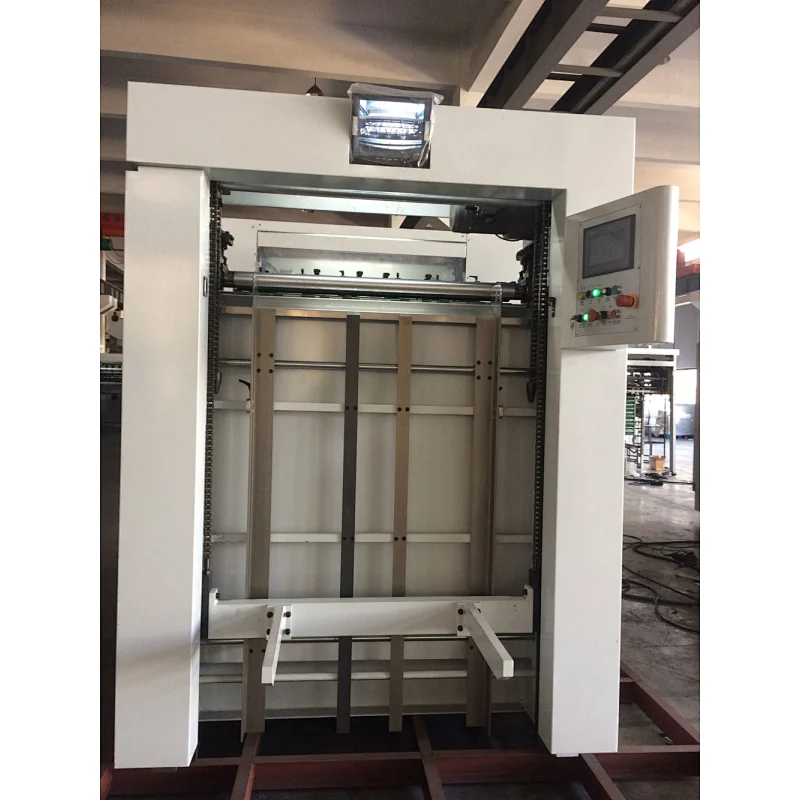

Detail of the machine:


Packaging & Shipping

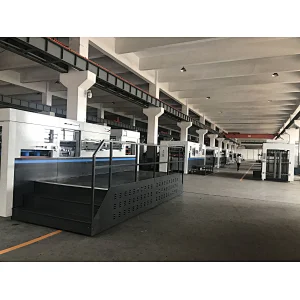

Company Information
