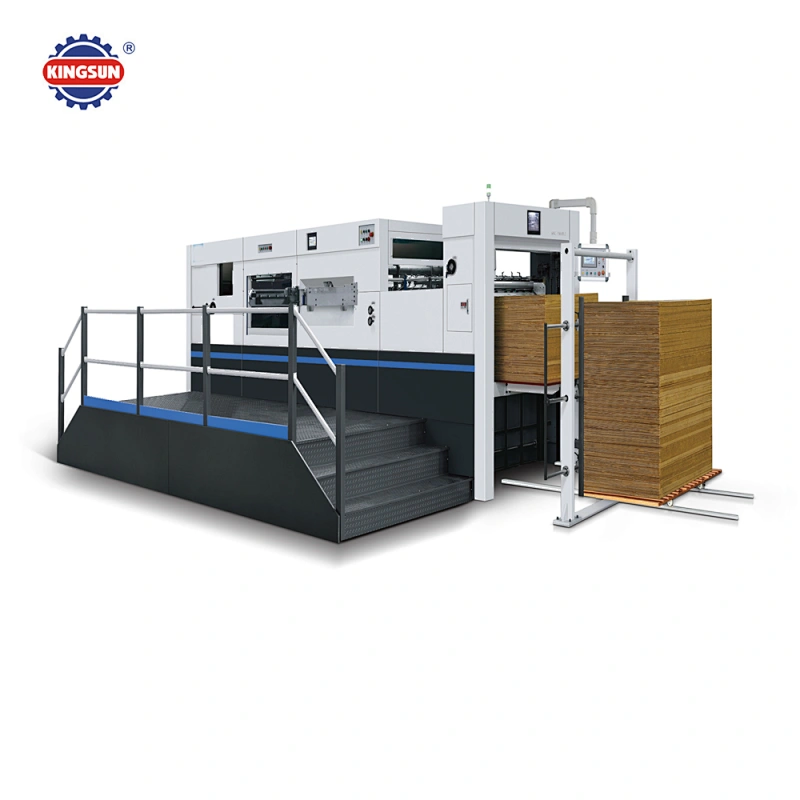

HC-BL Semi automatic Corrugated Die Cutting And Creasing Machine
HC series semi-automatic die cutting machine is equipped with front conveyor delivery mechanism. The two groups of pressing wheels and two times positioning function will make the products more flat, and improve the accuracy and speed. The machine’s development is combined with advantages of similar products in domestic and over seas, is special equipment for packing products such as cartons and paper box.
1.Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. 2.Frontal , back and side registration mechanism ensures great precision of die –cutting .

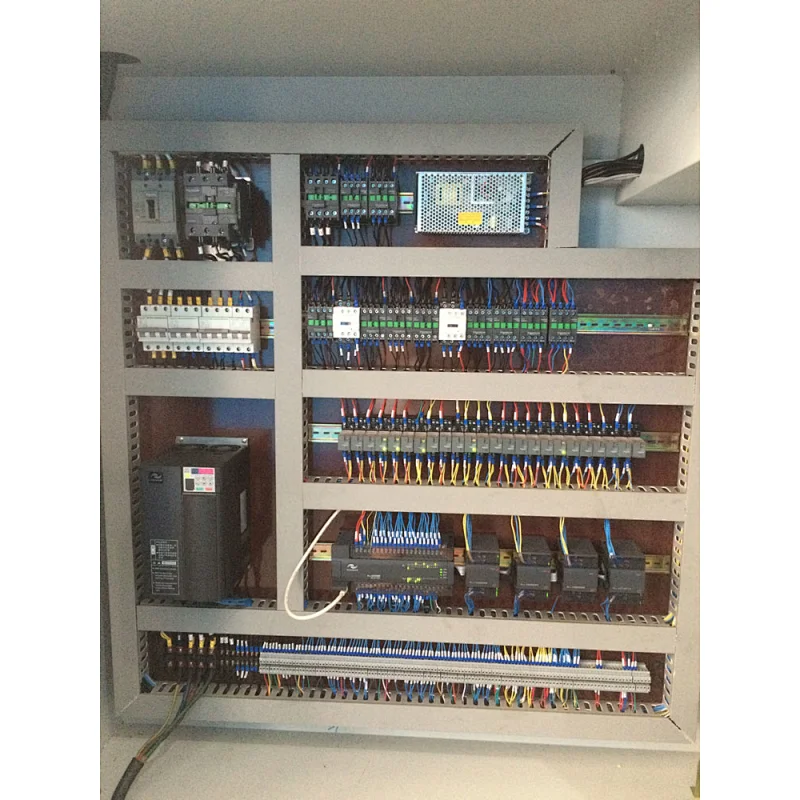

3.Other parts are adopted such as intermittent mechanism with high precision, air clutch, pneumatic locking
mechanism, programmable controller and man-machine interface.
4.The interface can display various digital information of machine such as working speed, amount of paper
processed, total running time,etc. It is easy to eliminate troubles according to the display of trouble shooting
5.Transducer is adopted to control the main motor in achieving step-less speed variation.
6. Optional: Stripping function .
Main Specifications:
Model | 1100BL | 1300BL | 1500BL | 1650BL |
Max.Paper size | 1100*790mm | 1290*940mm | 1500*1100mm | 1650*1210mm |
Min.Paper size | 400*350mm | 550*480m m | 550*480mm | 650*550mm |
Max.Die-cutting size | 1070*770 mm | 1280*930 mm | 1490*1090mm | 1620*1190mm |
Max.Working speed | 5000 sheeter/hour | 4000 sheeter/hour | 4000 sheeter/hour | 3200 sheeter/hour |
Paper Thickness | Cardboard more than 250g, corrugated less than 7mm | Corrugated :1-7mm. | ||
Power | 11 kw | 13.5 kw | 13.5 kw | 19.7 kw |
Max.Pressure | 300Ton | 300Ton | 300Ton | 300Ton |
Machine Weight | 14Ton | 16Ton | 18Ton | 28Ton |
Overall size | 6700*4000*2300mm | 7600*4400*2300mm | 8000*4600*2300mm | 8200*5000*2500mm |

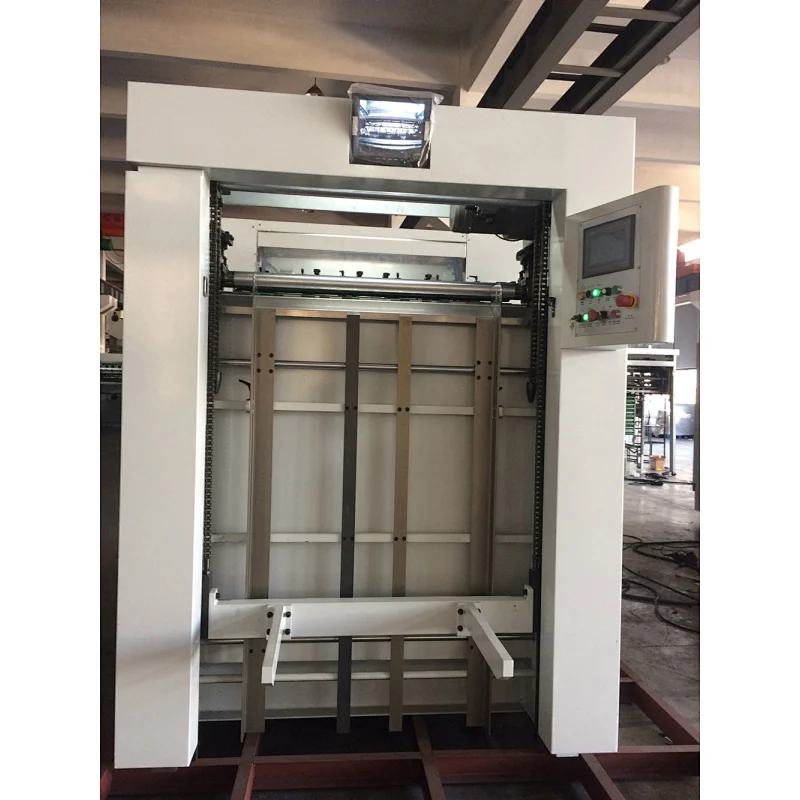

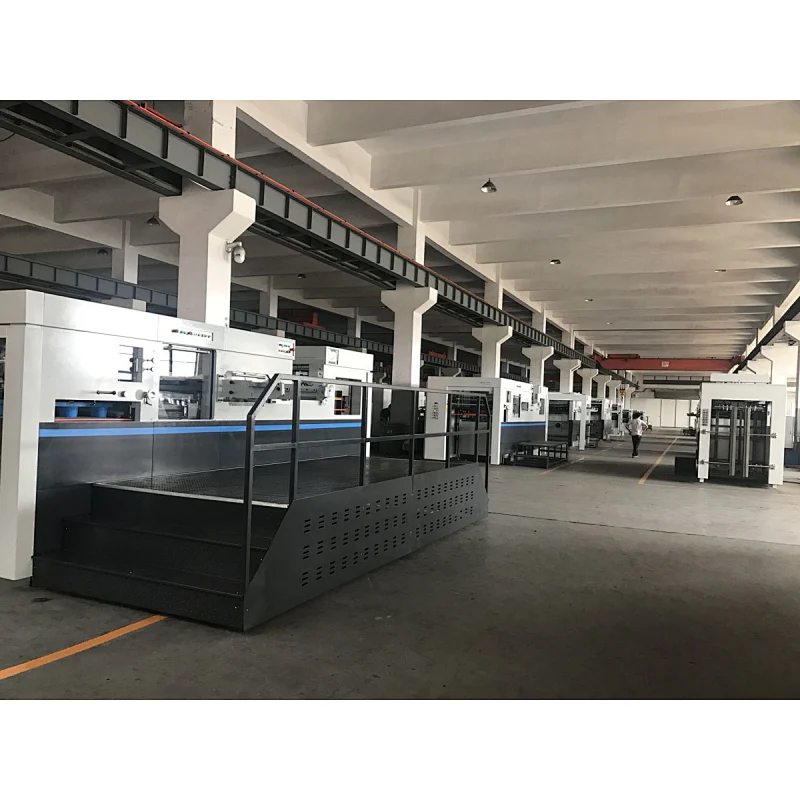

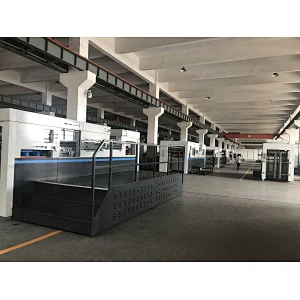

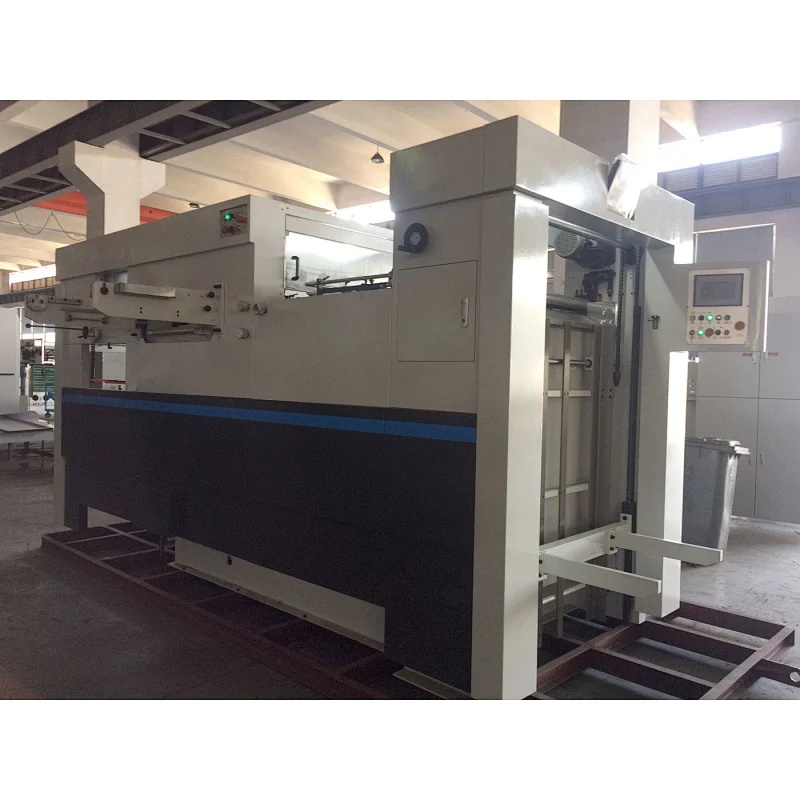

Detail of the machine:
