Model NO.
MHK-1050T/TC
Quantity:

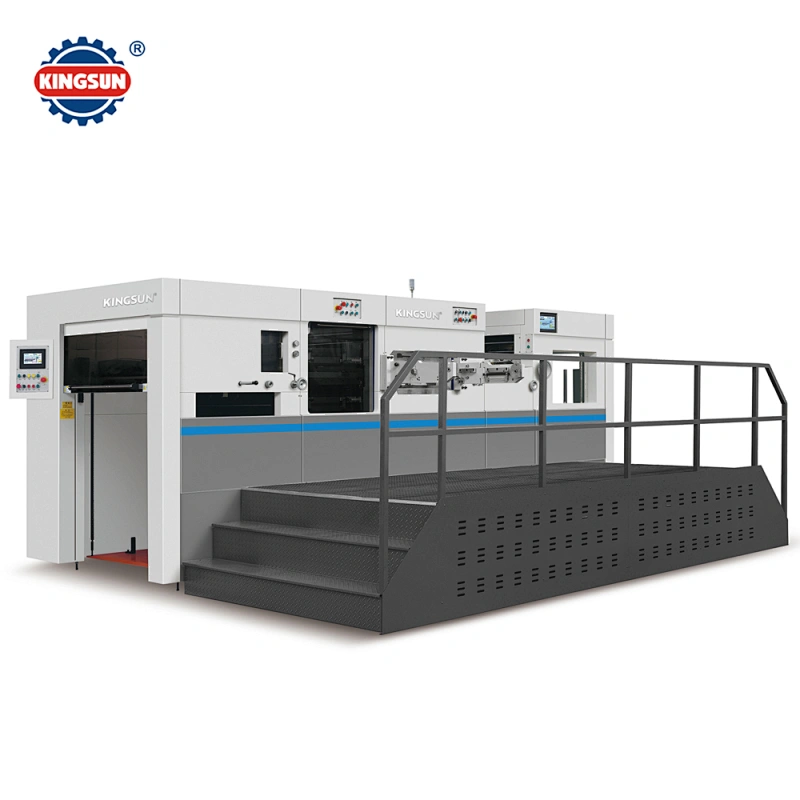

MHK-1050TAutomatic Hot Foil Stamping &Die Cutting Machine

The MHK series full-automatic/hot foil stamping/stripping/creasing die-cutting machines can efficiently complete the die cutting and embossing of products,as well as maintaining the highest precision and product quality.The MHK series full-automatic/hot foil stamping/stripping/creasing die-cutting machines are well equipped and almost can adapt to all die cutting requirements of products.

Main Features:

(1) Adopt nodular cast iron-QT500-7, the mainframe wallboard casting by special technology process, thus featuring by high strength, never deformation and ensure the safety of the mainframe wallboard.

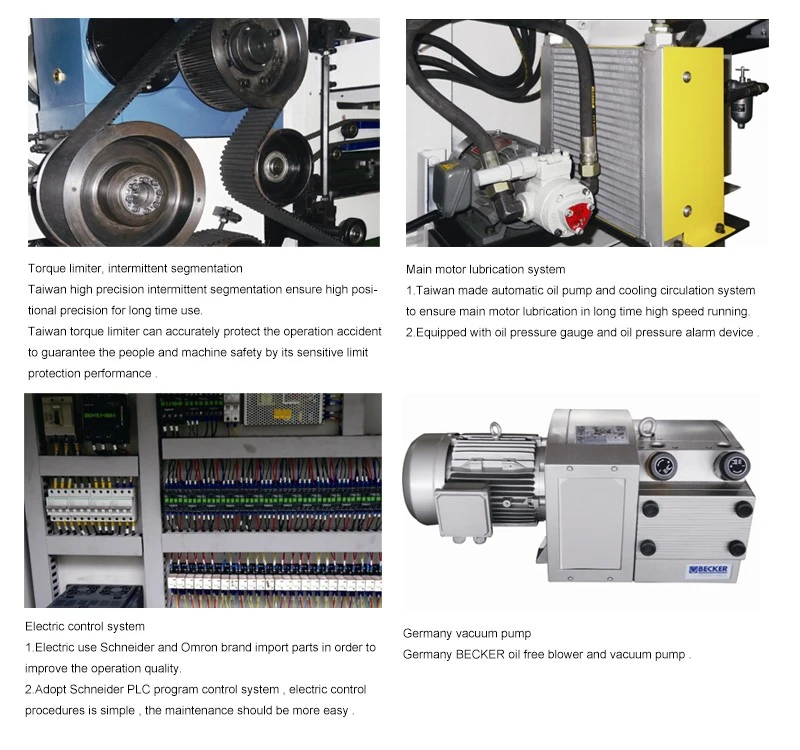

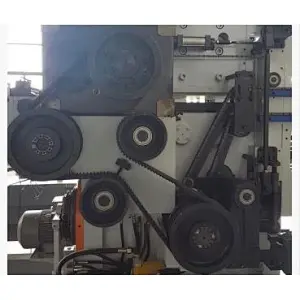

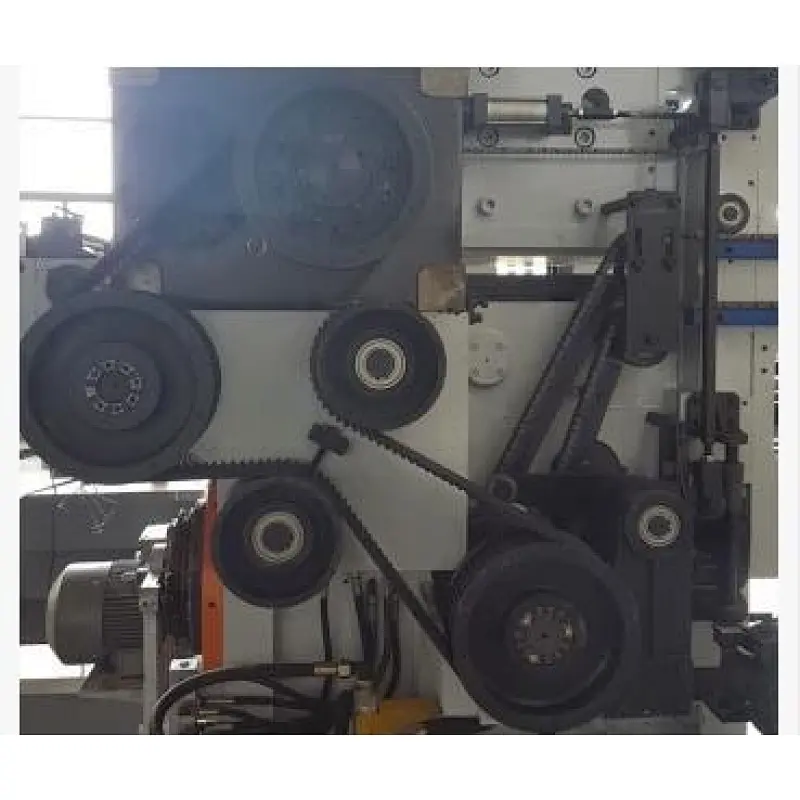

(2) Adopt Taiwan-imported intermittent mechanism to ensure that the machine operates accurately. Also, the main engine is equipped with overload protection device and torque limit clutch,to ensure that when they being impacted by external force can stops immediately to reduce the damage to the machine body and teeth precision and reduce the occurrence of failure rate.

(3) The whole machine all uses SKFNSK imported original bearing.

(4) The whole machine uses original parts imported from France Schneider,Japanese OMRON, and Japanese Mitsubishi etc.

(5) Key parts of teeth row are imported from Japan.

(6) Die cutting and hot foil stamping accuracy reach to ±0.1mm, and the highest speed of machine reaches 7500 sheets/hours.

(7) The craft shaft is adopts Germany Ni-Cr-Mo metal steel, with high precision and will never deforms.

(8) Use the centerline positioning system to realize fast plate changing of worksheet.

(9) Equiped first-developed pressure servo control device, ensure fast and smooth when they adjusting of die cutting pressure.

(10) Equip with touch-screen operation interface in both Chinese and English.

(11) All adopt Taiwan AIRTAC pneumatic components to ensure every pneumatic action performs accurately.

(12) Adopt double-sheet detector.

(13) The paper collection platform machine is equipped with automatic auxiliary paper collecting mechanism and operate without stopping the machine.

(14) The side gauge adopts photoelectric system.

(15) Adopt automatic refueling system.

(16) The oil pump adopts automatic cooling fan device.

Main technical specifications:

ModelMHK-1050T/TCMHK-1050MHK-1050CE
Max.Sheet size1050*750 mm1050*750 mm1050*750 mm
Min. Sheet size400*360 mm400*360 mm400* 360 mm
Max.Die cut size1040*720 mm1040* 720mm1040*720 mm
Max Hot stamping size1040*720mmnono
Inner chase size1080*745mm1080*745 mm1080*745 mm
Paper thickness

80-600g/m2

corrugated less than 4mm

80-600g/m2

corrugated less than 4mm

80-600g/m2

corrugated less than 4mm

Accuracyless than 0.1mmless than 0.1mmless than 0.1mm
Max. pressure300T300T300T
Max die cut speed7500s/h7500 s/h7500 s/h
Max feeder pile height1600mm(include pallet)1600mm(include pallet)1600mm(include pallet)
Max delivery pile height1400mm(include pallet)1400mm(include pallet)1400mm(include pallet)
Max.foil diameter250mm(vertical) 200mm(horizontal)NoNo
Foil width20-1020 mmNoNo
Main motor11Kw11Kw11Kw
Overall size7700*5200*2600mm6300*4600*2400mm7700*4600*2400mm
Machine weight18.5 Ton16 Ton17 Ton
Full power52 Kw16 Kw16.9 Kw
