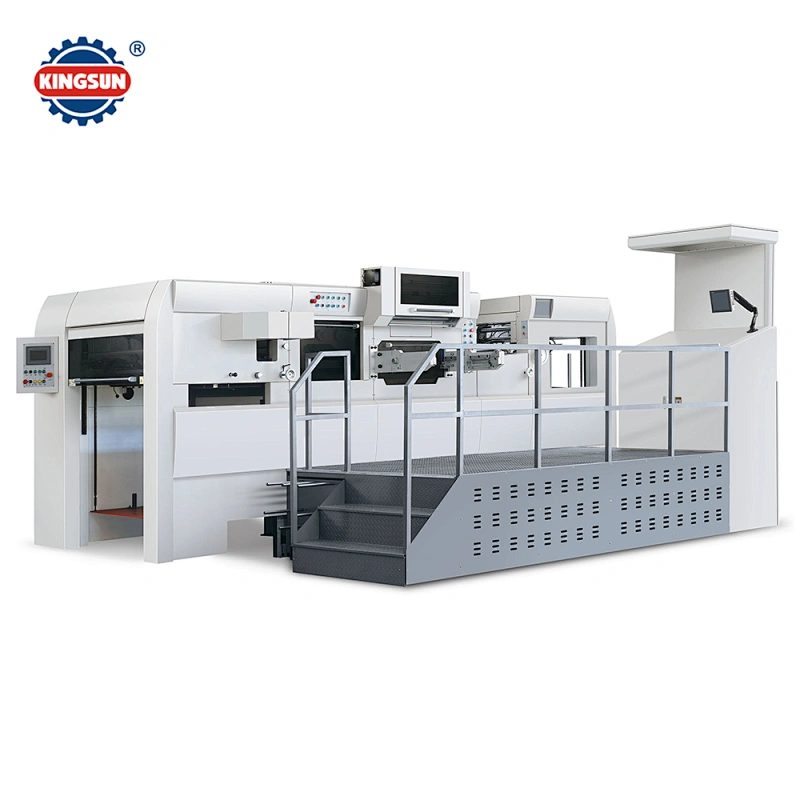

MHK-1050T/MHK-1050C Automatic Die-cutting & Hot Foil Stamping Machine
The MHK series automatic die-cutting & hot foil stamping machine /stripping/creasing die-cutting machines can efficiently complete the die cutting and embossing of products,as well as maintaining the highest precision and product quality.The MHK series automatic hot foil stamping machine/stripping/creasing die-cutting machines are well equipped and almost can adapt to all die cutting requirements of products.
Main Features:
(1) Adopt nodular cast iron-QT500-7, the mainframe wallboard casting by special technology process, thus featuring by high strength, never deformation and ensure the safety of the mainframe wallboard.
(2) Adopt Taiwan-imported intermittent mechanism to ensure that the machine operates accurately. Also, the main engine is equipped with overload protection device and torque limit clutch,to ensure that when they being impacted by external force can stops immediately to reduce the damage to the machine body and teeth precision and reduce the occurrence of failure rate.
(3) The whole machine all uses SKFNSK imported original bearing.
(4) The whole machine uses original parts imported from France Schneider,Japanese OMRON, and Japanese Mitsubishi etc.
(5) Key parts of teeth row are imported from Japan.
(6) Die cutting and hot foil stamping accuracy reach to ±0.1mm, and the highest speed of machine reaches 7500 sheets/hours.
(7) The craft shaft is adopts Germany Ni-Cr-Mo metal steel, with high precision and will never deforms.
(8) Use the centerline positioning system to realize fast plate changing of worksheet.
(9) Equiped first-developed pressure servo control device, ensure fast and smooth when they adjusting of die cutting pressure.
(10) Equip with touch-screen operation interface in both Chinese and English.
(11) All adopt Taiwan AIRTAC pneumatic components to ensure every pneumatic action performs accurately.
(12) Adopt double-sheet detector.
(13) The paper collection platform machine is equipped with automatic auxiliary paper collecting mechanism and operate without stopping the machine.
(14) The side gauge adopts photoelectric system.
(15) Adopt automatic refueling system.
(16) The oil pump adopts automatic cooling fan device.
Main technical specifications:
| Model | MHK-1050T/TC | MHK-1050 | MHK-1050CE |
| Max.Sheet size | 1050*750 mm | 1050*750 mm | 1050*750 mm |
| Min. Sheet size | 400*360 mm | 400*360 mm | 400* 360 mm |
| Max.Die cut size | 1040*720 mm | 1040* 720mm | 1040*720 mm |
| Max Hot stamping size | 1040*720mm | no | no |
| Inner chase size | 1080*745mm | 1080*745 mm | 1080*745 mm |
| Paper thickness | 80-600g/m2 corrugated less than 4mm | 80-600g/m2 corrugated less than 4mm | 80-600g/m2 corrugated less than 4mm |
| Accuracy | less than 0.1mm | less than 0.1mm | less than 0.1mm |
| Max. pressure | 300T | 300T | 300T |
| Max die cut speed | 7500s/h | 7500 s/h | 7500 s/h |
| Max feeder pile height | 1600mm(include pallet) | 1600mm(include pallet) | 1600mm(include pallet) |
| Max delivery pile height | 1400mm(include pallet) | 1400mm(include pallet) | 1400mm(include pallet) |
| Max.foil diameter | 250mm(vertical) 200mm(horizontal) | No | No |
| Foil width | 20-1020 mm | No | No |
| Main motor | 11Kw | 11Kw | 11Kw |
| Overall size | 7700*5200*2600mm | 6300*4600*2400mm | 7700*4600*2400mm |
| Machine weight | 18.5 Ton | 16 Ton | 17 Ton |
| Full power | 52 Kw | 16 Kw | 16.9 Kw |
