Model NO.
ML-1500
Quantity:

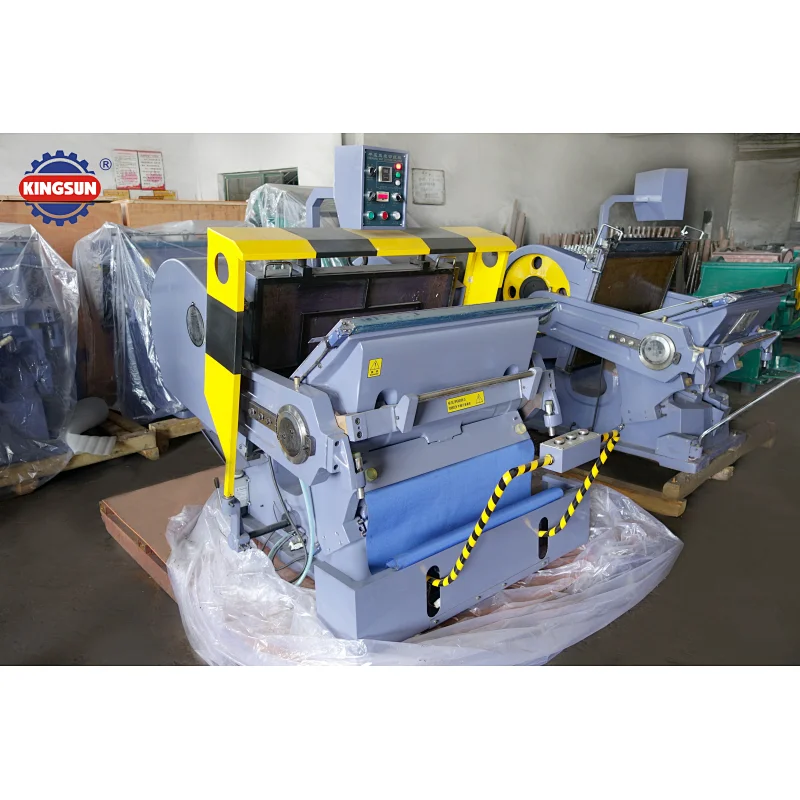

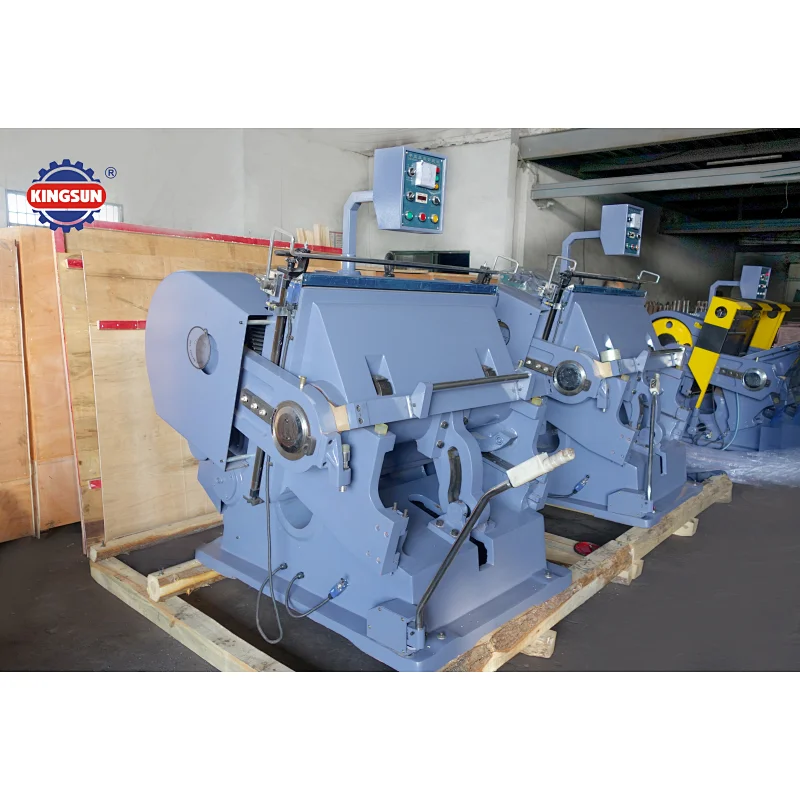

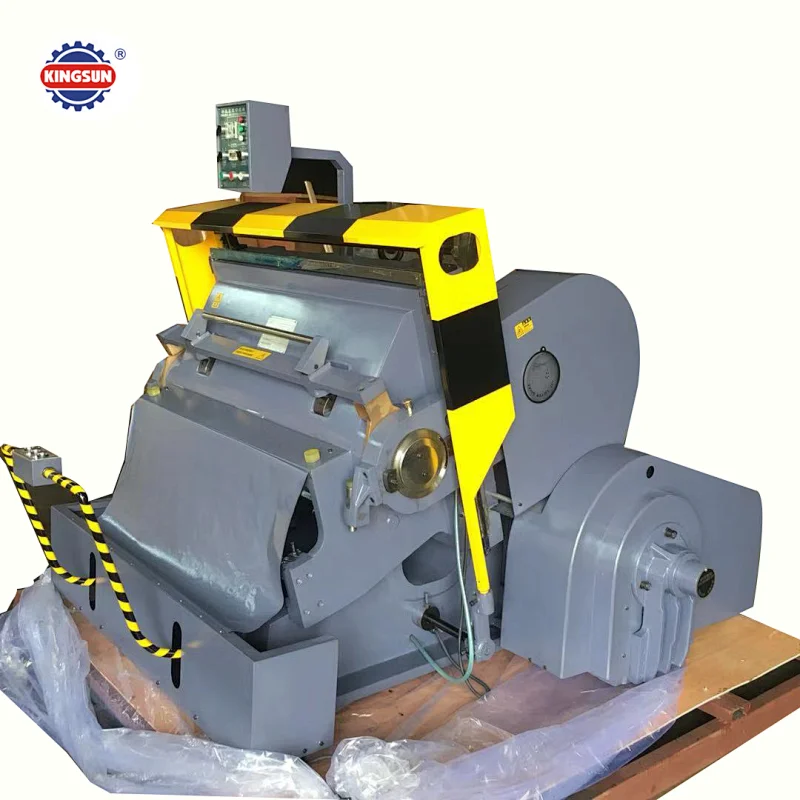

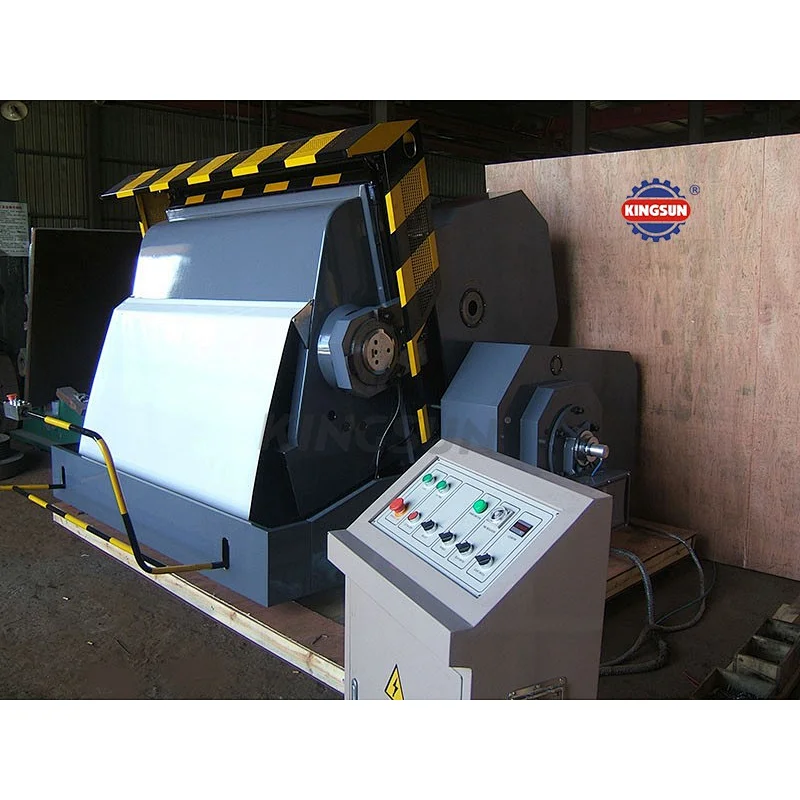

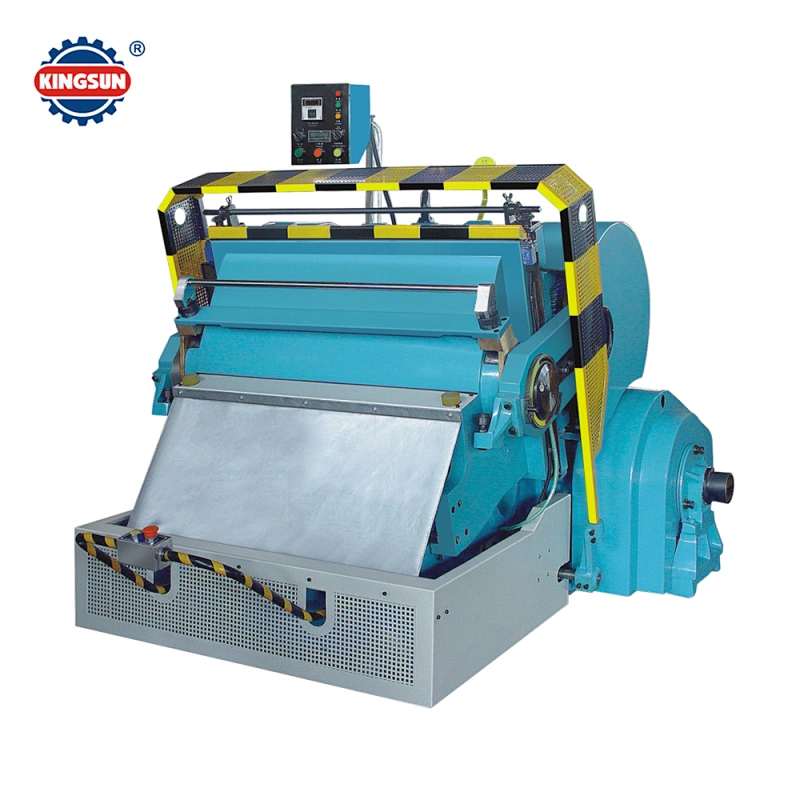

ML-1500 Manual Carton Box Paper Die Cutting Machine

ML series manual die cutting machine, also called as clam shell die cutter, is a kind of special equipment for die cutting and creasing a wide range of materials , such as paper, cardboard, corrugated board, plastic sheet and leather. It is applicable to the field of printing, packaging, decoration and plastic industries. ML series machine has been well accepted by the customers from home and abroad due to its outstanding performance, reliable in quality, easy for operating and low cost in price.

Features:

1. Sliding bearings are made of high quality alloy copper, thus to enhance the effect of anti-friction and vibration reducing.

2. Flywheel with big moment of force and large pressure.

3. High strength due to whole iron casting by using high quality material for machine body.

4. Single plate electromagnetic clutch is sensitive and reliable.

5. With functions of single piece, continuous and opening delay operating, dwell range is adjustable.

6. Operating position is reasonably designed, moving-bed can be opened to its optimum.

7. Safety protection system is reliable.

8. Can equip inner and outer movable frame and centralized lubrication device.

Main technical parameter

 Model

ML-1500

   Inner chase size

1500x1040mm

   Speed

14±2 strokes/min

   Max rule length

<48m

   Motor power

5.5kw-6H

   Machine weight

7500kg

   Overall dimension

2550x2100x2100mm
