Model NO.
ML-1600
Quantity:

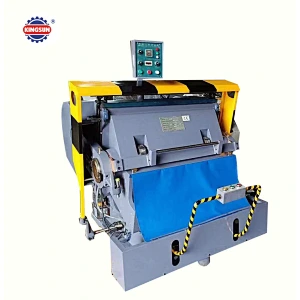

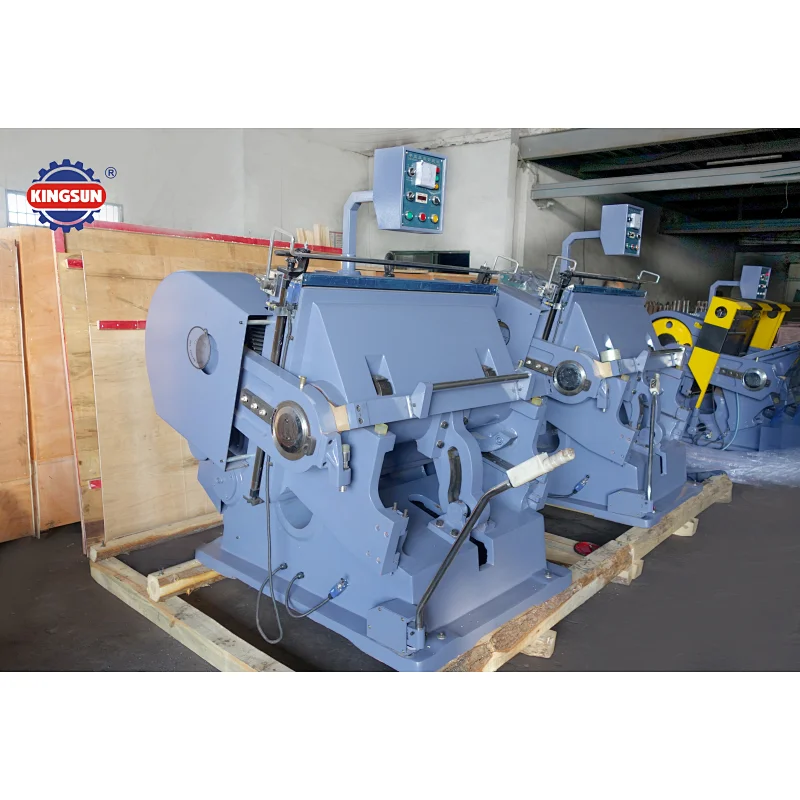

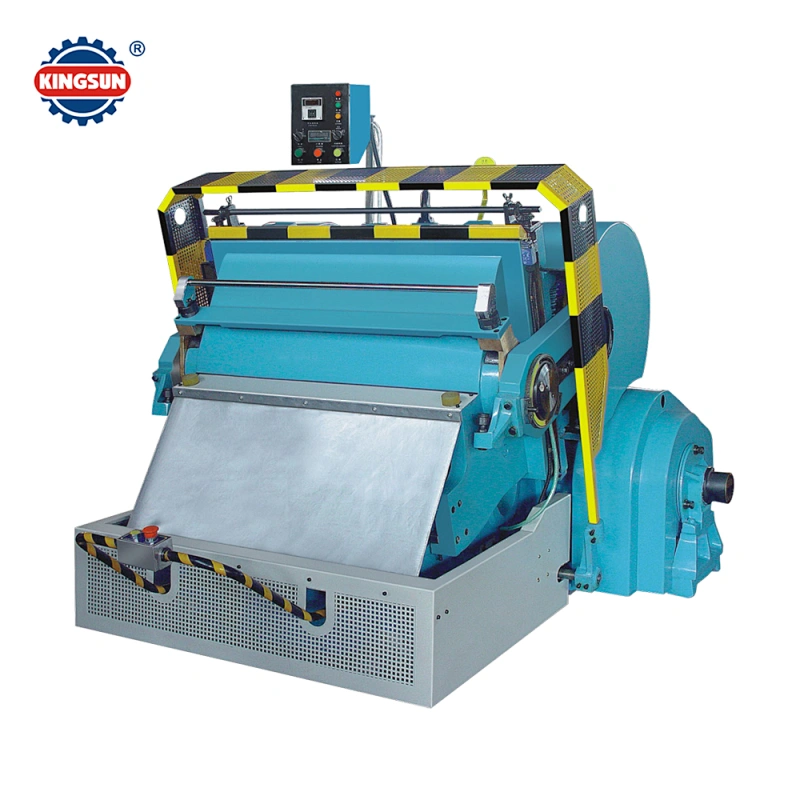

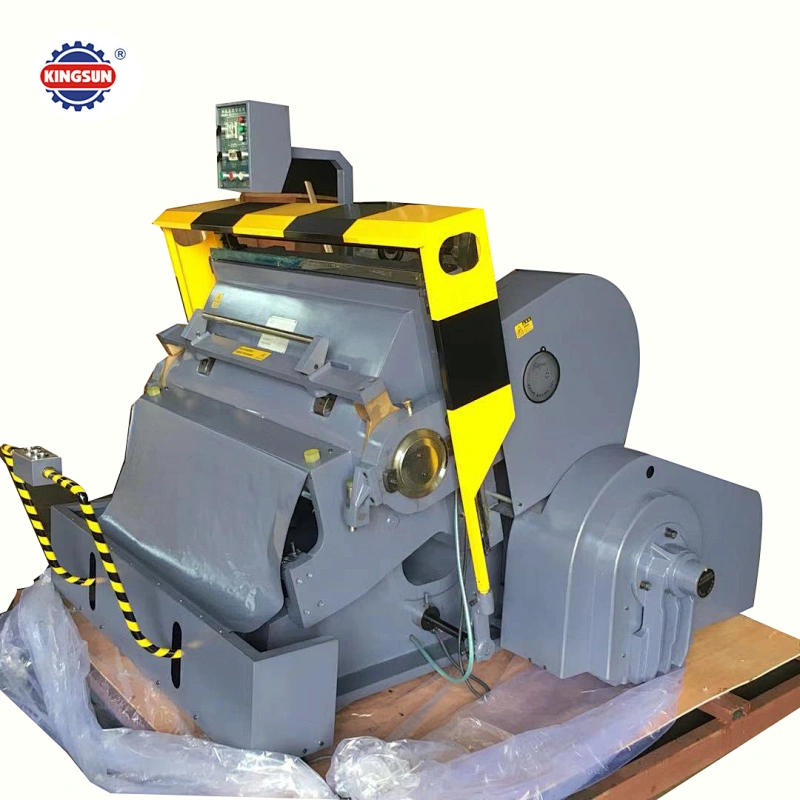

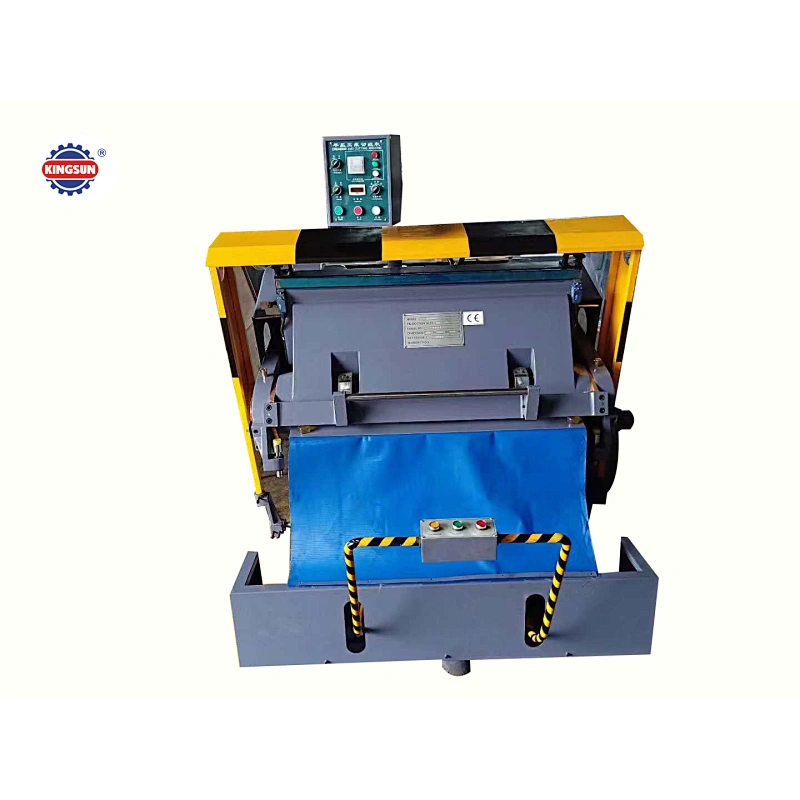

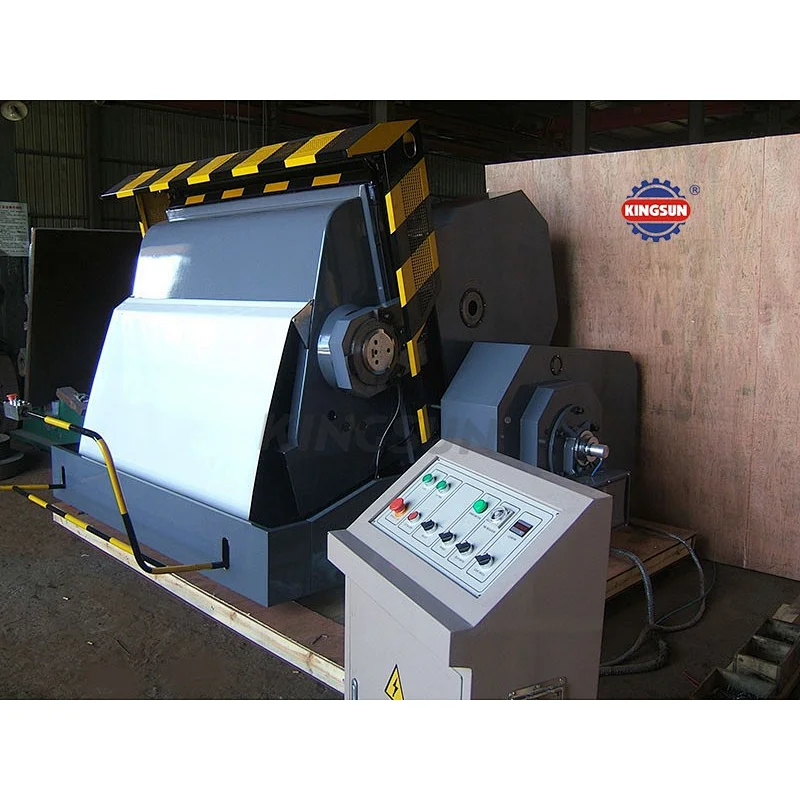

ML-1600 Small Paper Cardboard Die Cutting Machine

ML series manual die cutting machine, also called as clam shell die cutter, is a kind of special equipment for die cutting and creasing a wide range of materials , such as paper, cardboard, corrugated board, plastic sheet and leather. It is applicable to the field of printing, packaging, decoration and plastic industries. ML series machine has been well accepted by the customers from home and abroad due to its outstanding performance, reliable in quality, easy for operating and low cost in price.

Features:

1. Sliding bearings are made of high quality alloy copper, thus to enhance the effect of anti-friction and vibration reducing.

2. Flywheel with big moment of force and large pressure.

3. High strength due to whole iron casting by using high quality material for machine body.

4. Single plate electromagnetic clutch is sensitive and reliable.

5. With functions of single piece, continuous and opening delay operating, dwell range is adjustable.

6. Operating position is reasonably designed, moving-bed can be opened to its optimum.

7. Safety protection system is reliable.

8. Can equip inner and outer movable frame and centralized lubrication device.

Main technical parameter

Model

ML-1600

  Inner chase size

1600x1250mm

  Speed

13±2 strokes/min

  Max rule length

<50m

  Motor power

11kw-6H

  Machine weight

12000kg

  Overall dimension

2780x2300x2400mm
