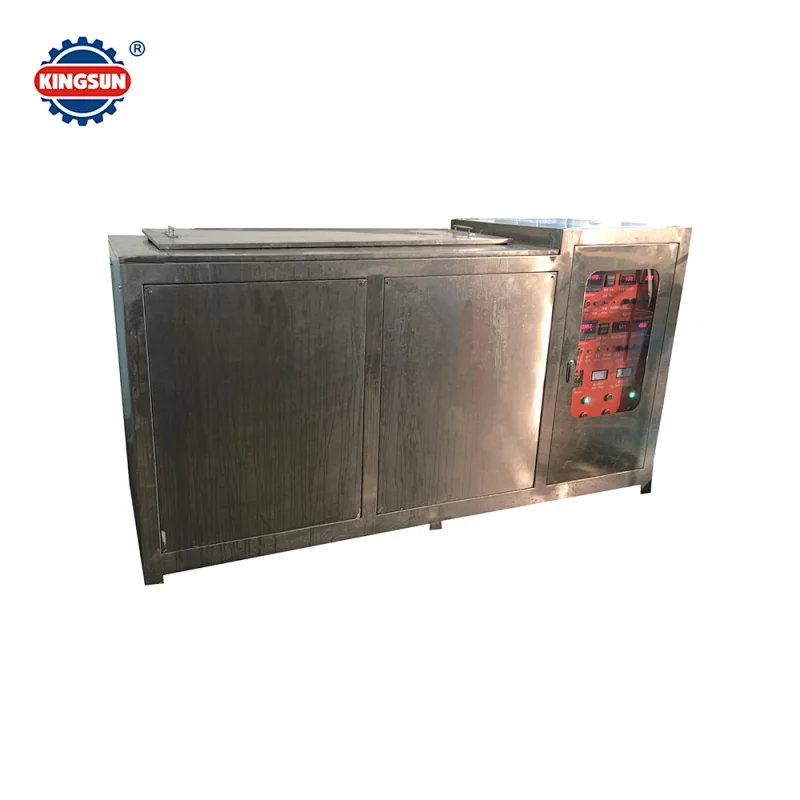

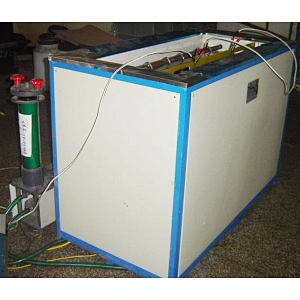

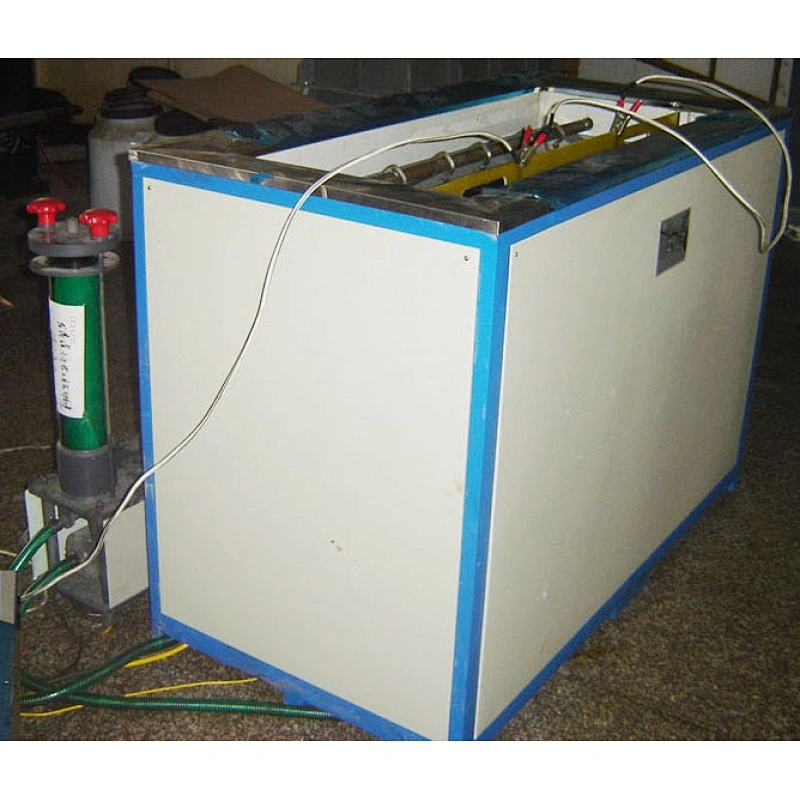

This electroforming machine is auxiliary equipment for laser holographic embossing production lines, the glitter film, cat eye mask deep lines to make special nickel plate system, with copy function, high fidelity performance, ensure the provision of high-quality version of the follow-up work on the machine embossing. High frequency DC output. 1 machine can simultaneously copy two work plates. Two systems work independently, while different current can be controlled independently. Electrotyping machine components are using international brand names.
Configuration including:

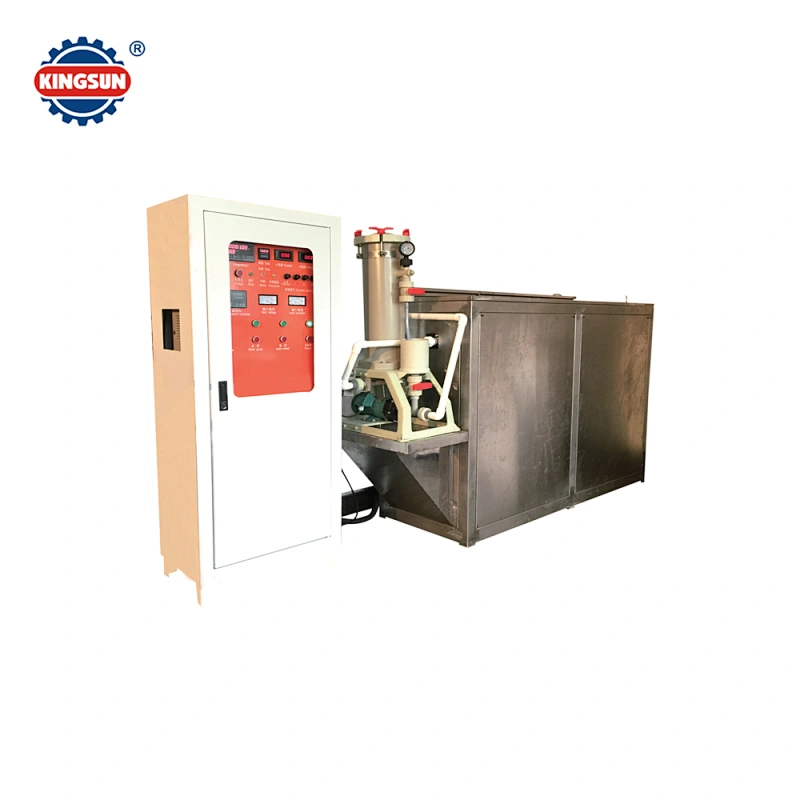

1 Machine body uses 304 stainless steel, interior tank PP material.
2 centrifugal filter pump
3 electric heaters, the anode rod
4 chemical liquid, nickel block
5 titanium anode basket
6 high frequency electronic control cabinet containing liquid chemical formulation tips
Technical parameters:
Power supply voltage: AC 380V
Rated power: 6KW
Maximum operating current: DC 200A * 2 groups
Maximum operating voltage: 15V
Cathode maximum area: 1200 × 750mm
Plating tank volume: 550L
Bath temperature: room temperature 38 ~ 55 ℃
Time setting: 0-999.9 ampere hours
Main specifications:
Model | Out dimension | Inside size | weight | filter | Titanium basket | function |
800 | 2000*800*950 | 900*500*900 | 1.3T | 2T | 3 | 2 |
800 | 2000*800*950 | 900*380*900 | 1.1T | 2T | 3 | 1 |
1000 | 2200*800*950 | 1100*500*900 | 1.5T | 3T | 3-4 | 2 |
1000 | 2200*800*950 | 1100*380*900 | 1.3T | 3T | 3-4 | 1 |
1200 | 2400*800*950 | 1300*500*900 | 1.8T | 4T | 3-4 | 2 |
1200 | 2400*800*950 | 1300*380*900 | 1.5T | 4T | 3-4 | 1 |
1500 | 2700*800*950 | 1600*500*900 | 2.1T | 4T | 4-5 | 2 |
1500 | 2700*800*950 | 1600*380*900 | 1.7T | 4T | 4-5 | 1 |
1700 | 2900*800*950 | 1800*500*900 | 2.3T | 6T | 5-6 | 2 |
