Features:

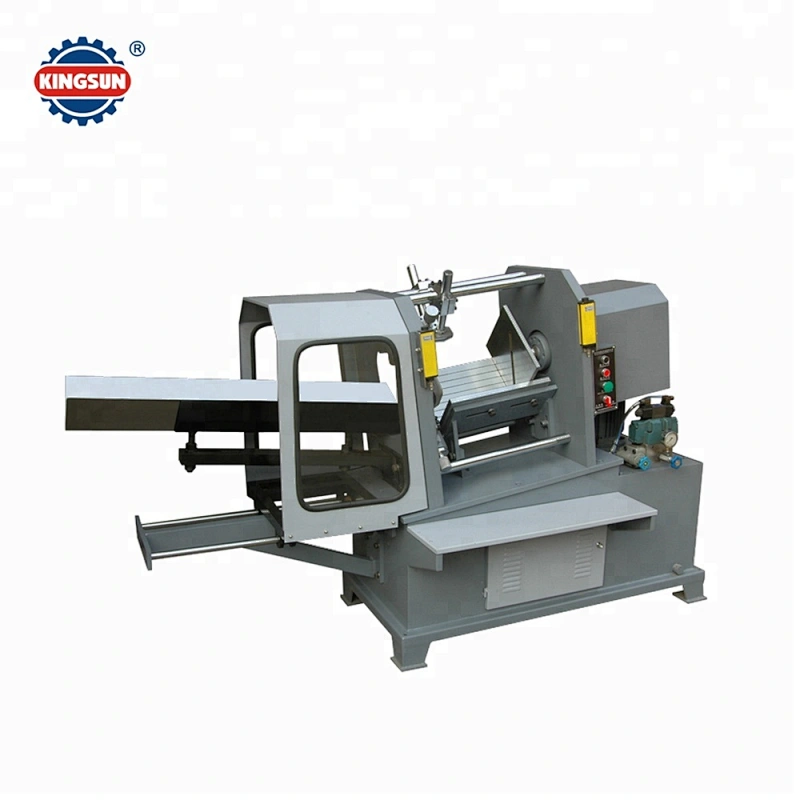

This label punching machine is widely used in the packaging related industry, widely suitable for punching various special shaped labels, playing cards, notebooks, memos, envelopes, etc.
The stable hydraulic system makes a steady operation, also a high precision. The final products are uniform in size; the surface is clear and smooth.
This hydraulic punching machine is easy for operation, and convenient for molds change to meet different designs and sizes, installed infra-red monitor highly ensures the safety, and highly improves the efficiency as well.
Various sizes for options, started from 130 to 500.
Main specifications:
Model | KLM-220 | KLM-280 | KLM-400 |
Max cutting size | 150 x 150mm | 190 x 190mm | 270 x 270mm |
Min cutting size | 95 x 60mm | 105 x 75mm | 120 x 120mm |
Punching range | 250mm | 250mm | 250mm |
Cutting pressure | 30KN | 40KN | 50KN |
Working speed | 65mm/s | 65mm/s | 65mm/s |
Power | 2.2kw | 3kw | 4kw |
Machine size | 1800 x 700 x 1360mm | 1850 x 740 x 1400mm | 1900 x 840 x 1400mm |
Machine weight | 360kg | 560kg | 900kg |
