Cake Tray Forming Making Machine
Cake Tray Forming Making Machine

Cake Tray Forming Making Machine

Model NO.
KCT
Minimum order quantity:
1 set
Quantity:

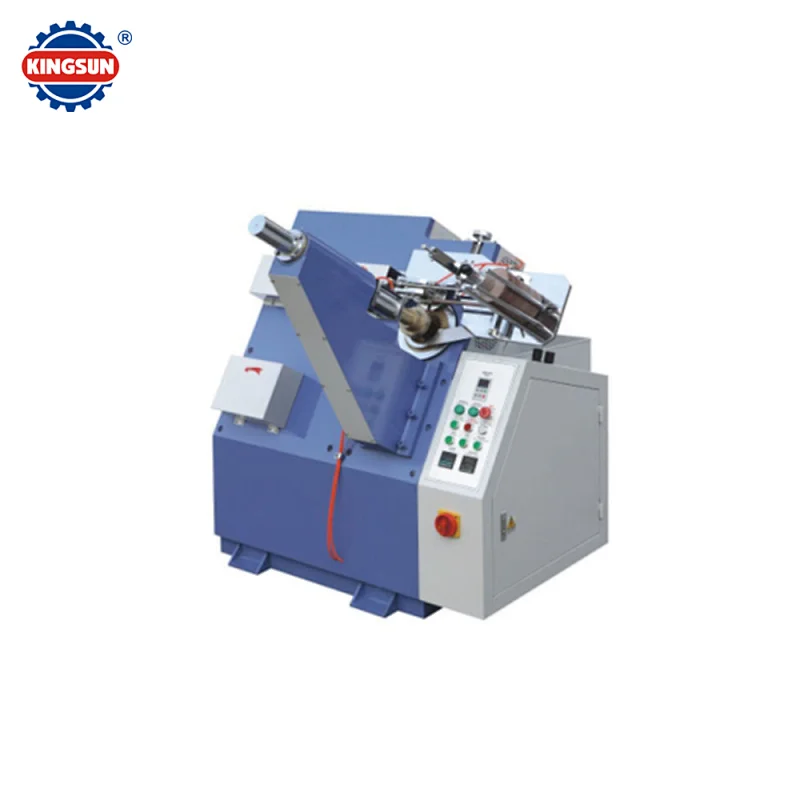

KCT Cake Tray Forming Making Machine

KCT model cake tray forming making machine pneumatically controls paper jam, paper feed, automatic paper distribution, die hot forming and ejection through manipulator chuck. The machine can produce various cake paper trays by changing molds. Besides, the simple machine adopts mechanical drive by variable frequency speed regulation and automatic heating temperature control, with simple operation, high production efficiency and stable performance.

Main technical parameter of cake tray machine

Model

KCT
Paper size (unfolded)

φ55-φ130mm

Raw material

Oil-proof paper

Paper specification

30~40g/m2

Production efficiency

20~40 times/minute, 15~20 sheets/time

Power voltage

380V

Power

2.5kw(motor: 1.5kw, electric heating: 1kw)

Angle

2-8°

Supported air source

Working pressure:0.6MPa

Working air volume:0.3 m³/min

Weight

500kg

Package size

1500*1300*1400mm
