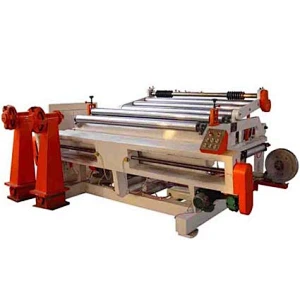

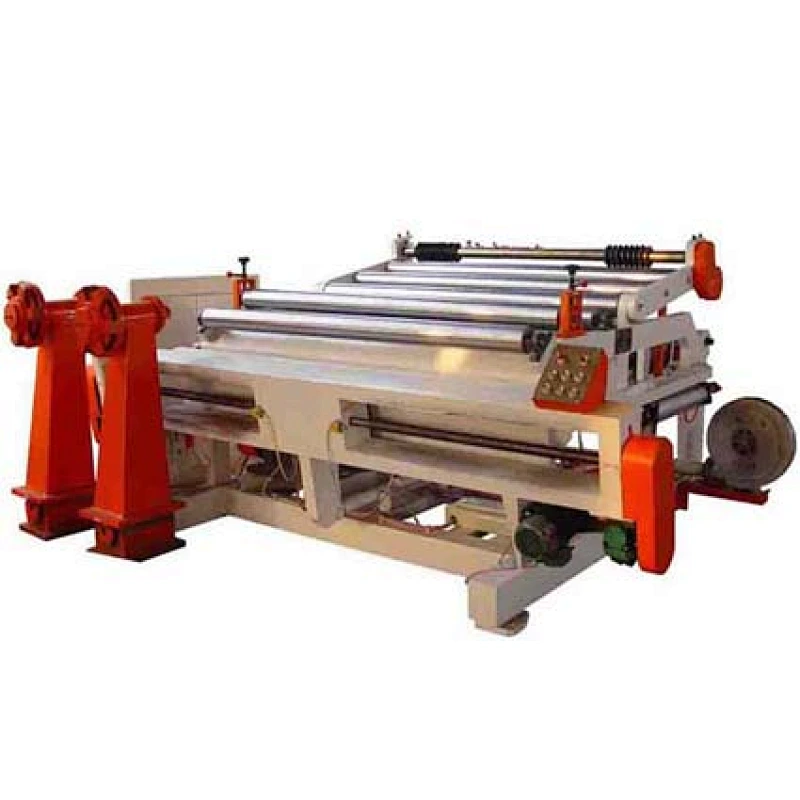

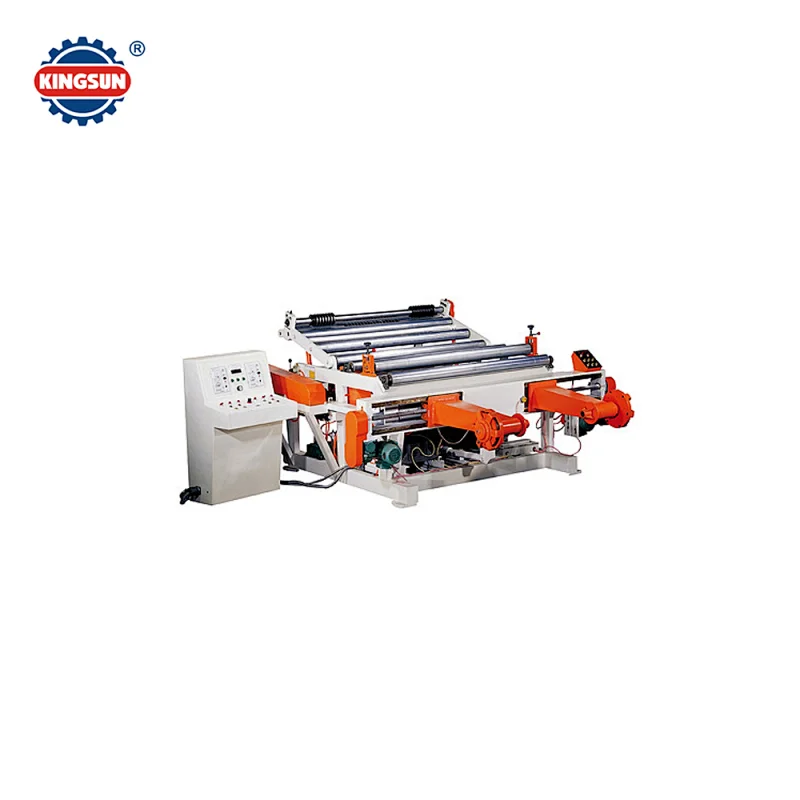

KFQ-1600 Model Thick Jumbo Roll Paper Slitter Rewinder Machine
Kingsun high quality slitter rewinder machine specially designed for slitting think paper roll for paper tube or paper core making.
Adopts lifting and clamping mechanic manipulator, electric lifting and clamping system, so improved the production efficiency.
Electric moving up and down the knife rack, it can keep the knife rack and rewinding paper a certain distance, so slit and rewind the raw paper much accurate.
Adopts the big knife shaft, it solve the problem of jumping knife thoroughly, so it can slit the paper more smooth and faster.
Adopts Japan made machine technology of unloading paper, so can avoid low efficient and save labor.
Adopts air pressure and friction plate tension control, so the raw paper tension can be stepless regulated and improve the result of rewinding.
Installed the waste paper edge absorb device.
Max paper width: 1600mm(according to different size)
Out diameter of raw paper 1200mm
Rewinding out diameter 1200mm
Min slitting width: 35MM
Shaftless clamper: 1 set(3 INCH)
Raw paper brake device: 2sets
Tension control device: 1set
Main machine power: 7.5KW
Knife rack lifting motor: 0.75KW
Raw paper lifting motor: 0.75KW
Raw paper clamping motor: 0.55KW(two sets)
Independent electric control box: 1set
Emergency dependent control box: 1set
Double circle knife unit: 17unit(standard type, can increase and decrease according to customer requirement)
Motor for absorbing waste edge paper: 4KW
Main machine size: 3200X3060X1300mm
