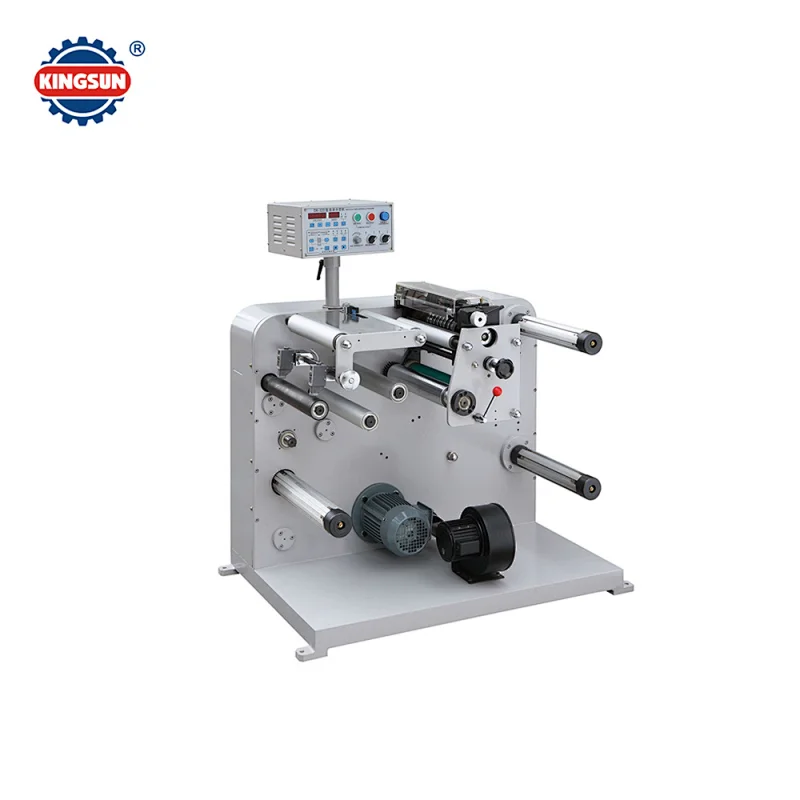

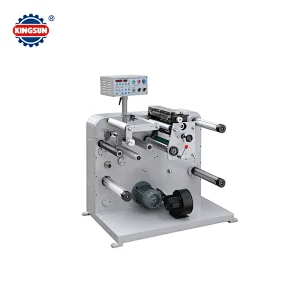

DK-320H Label slitting Machine
Product Description
This label slitting rewinding machine suitable for narrow width paper label slitting.It has the function of automatically counting length,counting number and pre-setting stop,waste edge side paper blowing out.The whole structure is compact,high efficent,simple for operation.
a. This machine is the necessary auxiliary equipment for label die cutting machine.
b. The machine used for narrow width reel material slitting.
c. Automatic meter counting and number counting.
d. Two photocell tracking web guide in unwinding unit
e. Easy adjustment for the up and down knife ( 6 sets circle knives)
f. Pre-setting automatic machine stop.
g. Waste edge-side slitting function.
h.3 inch for unwinding and rewinding air shaft. Shaft size can special made.
i. With magnetic brake and clutch for control unwind and rewinding roll.
Main specifications:
Model | DK-320H |
Slitting speed | 100m/min |
Max. web width | 320mm |
Max. unwinding diameter | 600mm |
Max. rewinding diameter | 480mm |
Slitting precision | ±0.5mm |
Overall dimensions | 1.1X0.9X1.48M |
Weight | About450kg |
