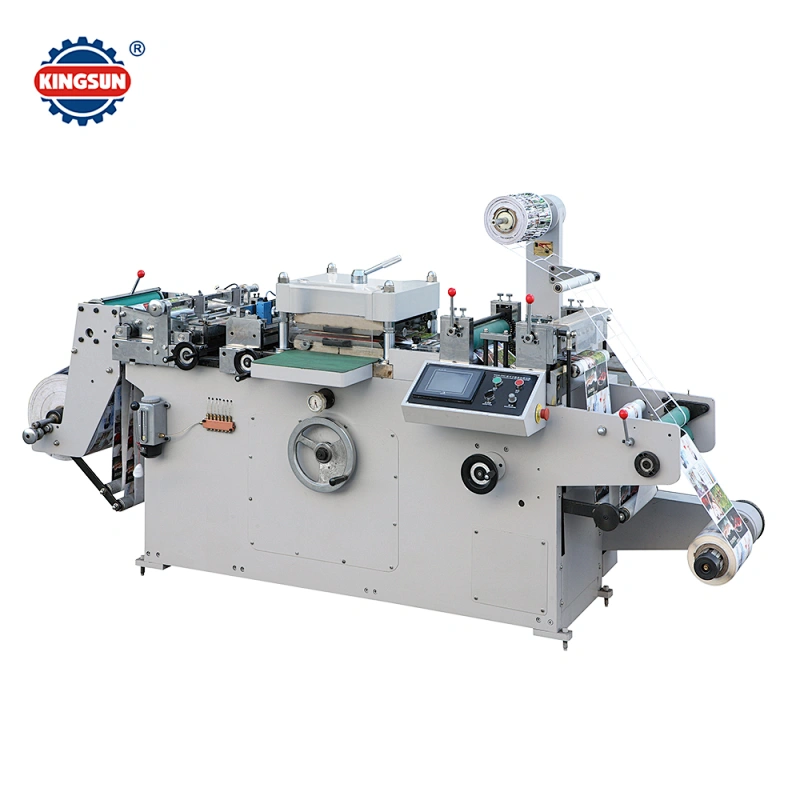

WQM-420 Label Sticker Cutting Machine
WQM-420 Label Sticker Cutting Machine
WQM-420 Label Sticker Cutting Machine
WQM-420 Label Sticker Cutting Machine
WQM-420 Label Sticker Cutting Machine
label cutting machine
WQM-420 Label Sticker Cutting Machine
WQM-420 Label Sticker Cutting Machine
WQM-420 Label Sticker Cutting Machine
WQM-420 Label Sticker Cutting Machine
WQM-420 Label Sticker Cutting Machine

WQM-420 Label Sticker Cutting Machine

Model NO.
WQM-420
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
50 set / Month
Country of Origin:
Ningbo/Shanghai
Quantity:

WQM-420 Label Sticker Die Cutting Machine

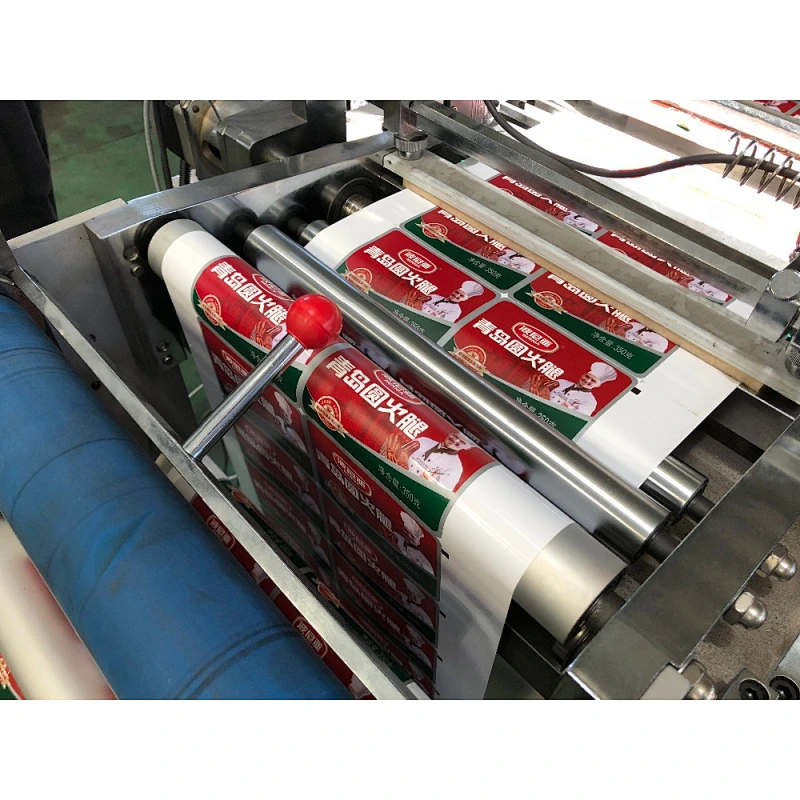

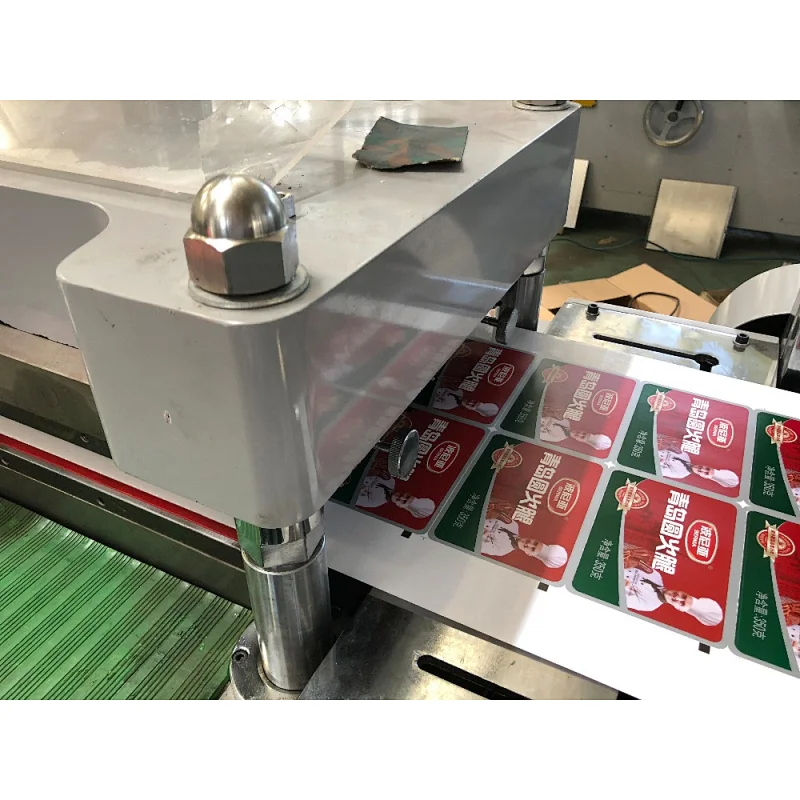

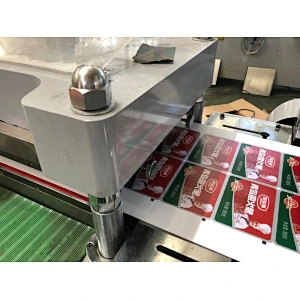

This label cutting machine adopts platen high accurate die cutting,label conveyoring and sheeting controlled by touch screen micro-computer,the two sides of printed mark and longitudinal tracked by three photoelectric eye.Die cutting rewind waste edge side paper,sheeting can finish at one time.It is suitable for die cutting paper label,film label and holographic label.etc.This machine and label slitter is necessary auxiliary machine for the flexo printing machine or continuous screen printing machine.

optional parts:laminating device,foil stamping unit,punching unit,optical-fiber tracking photocell for hologram label etc

Main technical specifications:

Model

WQM-320G

WQM-420

Die cutting speed

20-170m/min

20-170m/min

Max. unwinding diameter

500mm

500mm

Max. width of paper

320mm

420mm

Max. cutting width

300mm

400mm

Max. cutting length

300mm

400mm

Positioning precision

±0.1mm

±0.1mm

Total power

3.5kw

4.5kw

Power supply

220v±10%

380v

Overall dimensions

2.6X0.99X1.4M

2.7X1.05X1.5M

Weight

About 1700kg

About 2300kg

Send Message

*
* clear input

Related Products

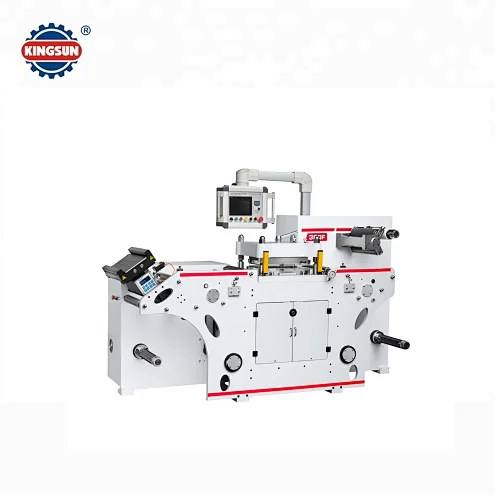

Rotary die cutting machine
