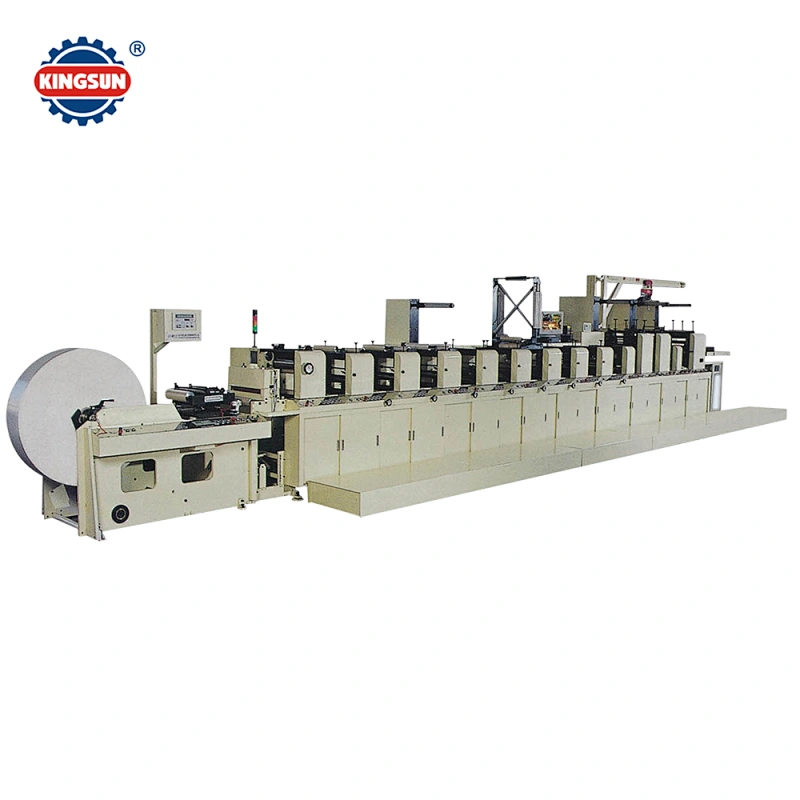

FP-1358 Series High Speed Web Flexo Label Printing Press
FP-1358 Series High Speed Web Flexo Label Printing Press

FP-1358 Series High Speed Web Flexo Label Printing Press

Model NO.
FP-1358
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
10 set / Month
Country of Origin:
Shanghai
Quantity:

FP-1358 Series High Speed Web Flexo Label Printing Press

This series multi-color flexo printing press is suitable for various roll type base materials such as paper label, film label, cardboard, plastic film, Al foil etc.

Advantage:

1. With 15 years manufacturing experience, you can get good qualiy machine.

2. Use latest technology of flexo printing.

3. Main parts world top brand.

4. Excellent after sale service and quick response.


Main specifications of 13.5inch model printing press:

Maximum Paper Width:340mm
Maximum Printing Width:330mm
Maximum die-cutting Width:330mm
Printing Repeat:178~508mm
Die-cutting Repeat Range:178~508mm
Maximum Unwinding Diameter:1016mm
Maximum Rewinding Diameter:762mm
Gearing :1/8''CP, 3. 175mm
Maximum Mechanical Speed:152m/min
Drive:7.5KW
Lubricating System :Automatic
Air Pressure: 0.6Mp

Main features of flexo press:

1.Electronic web guide, correcting continuously with great accuracy for the slightest alignment variations
2.Printing Stations (Cassette design) including and high precision ground impression cylinders
3. Self-cleaning plate feature. This system increases the efficiency of the press by removing residual ink from the plate cylinders.
4. Fast set-up for anilox cylinder replacement
5. Automatic plate roll throw-off without loss of registry when the press stops
6. Can be special made and flexible colour unit configuration.
