High Speed Paper Slitter And Rewinder Machine
High Speed Paper Slitter And Rewinder Machine
High Speed Paper Slitter And Rewinder Machine
High Speed Paper Slitter And Rewinder Machine
High Speed Paper Slitter And Rewinder Machine
High Speed Paper Slitter And Rewinder Machine
High Speed Paper Slitter And Rewinder Machine

High Speed Paper Slitter And Rewinder Machine

Model NO.
KSFQ-1300E
Minimum order quantity:
1 set
Quantity:

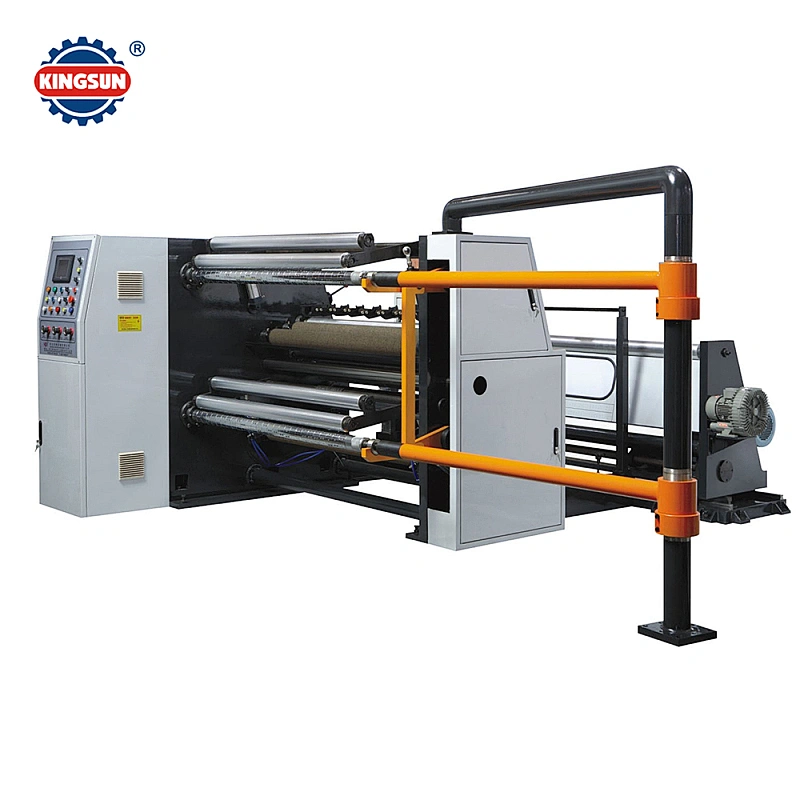

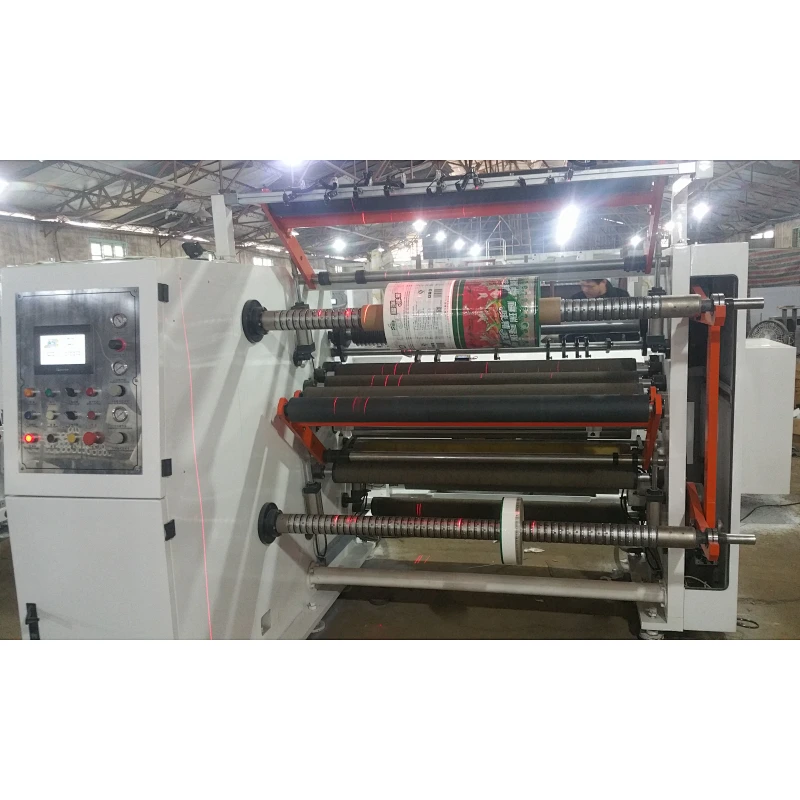

KSFQ-1300E High Speed BOPP Paper Slitter And Rewinder Machine

KSFQ series computer control paper slitter and rewinder machine is adopted most advanced technology,which is fit for slitting various plastic film such as BOPP, PET,PVC,CPP, roll paper etc.Main electric parts imported world brand and with latest technology, so can fit for various high precision slitting rewinding jumbo roll materials.

Main technical parameter

Maximum unwinding diameter

φ800mm

Maximum rewinding diameter

φ600mm

Unwinding diameter range

400-1300mm

Slitting width

30-1300mm

Paper core diameter

3″

Maximum machine speed

310m/min

Max rewinding speed

300m/min

Max slitting speed

300m/min

Deviation correct precision

≤0.40mm

Tension settting range

230kg

Unwinding motor power

5.5kw

Rewinding motor power

7.5kw

Drawing motor power

4kw

Total power of machine

18kw

Machine dimension

3600 (L) x 4500 (W) x 1850mm (H)

Machine weight

About 3500kg

Slitting material

Film and laminated film12-180um,PE PVC 40um-150um, adhesive paper,paper,etc.

Machine color

Grey white (other colors can choose)
