Model NO.
KFJ-1000
Quantity:

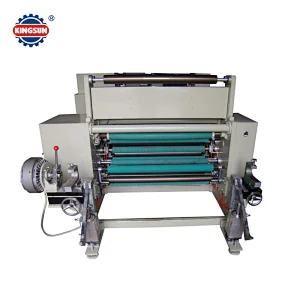

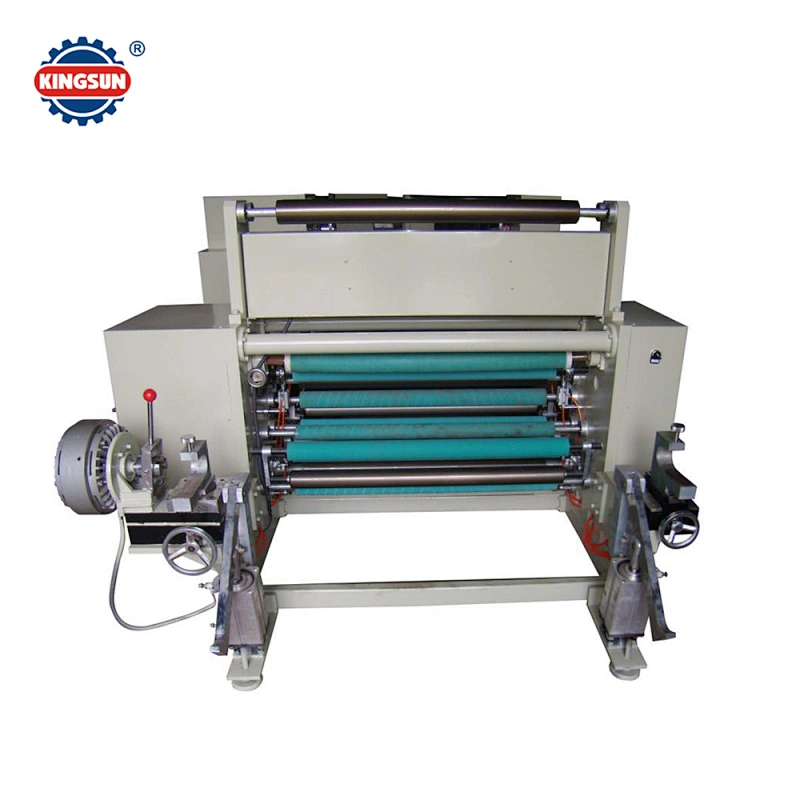

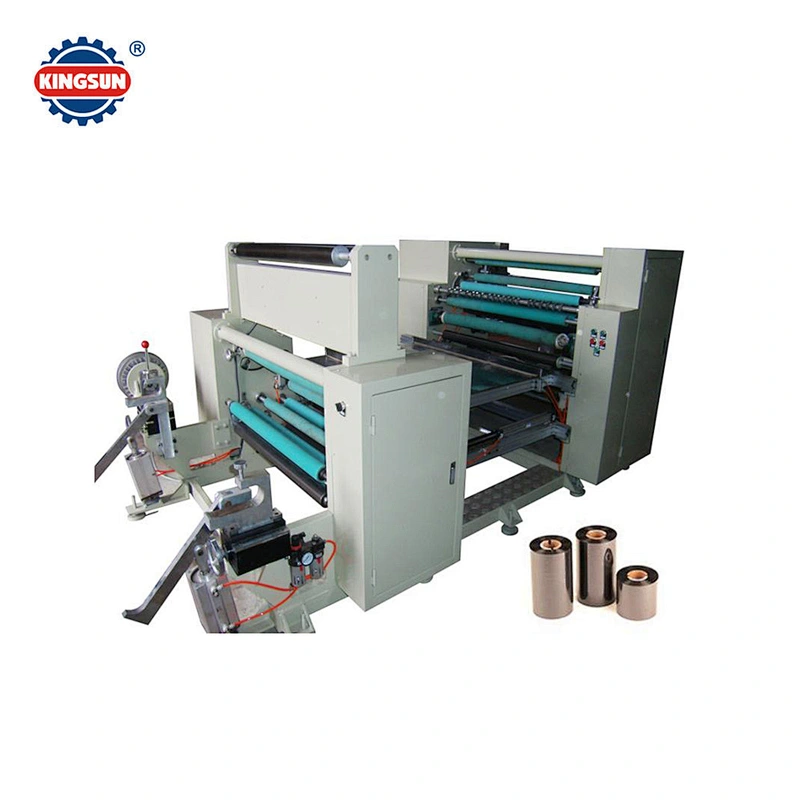

KFJ-1000 Carbon Ribbon TTR Slitting Machine

This carbon ribbon slitting machine is specially designed for the TTR carbon ribbon film slitting such as color ribbon, barcode ribbon,fax ribbon,black hot stamping foil etc. It is adopted the advanced technology from Japan, European model machine,the max mechanic speed 180m/min. It is the one of most reliable model machine for all kind of ribbon film slitting. This is new model which developed on the basis of KFJ-1000 model, more convenient for operation and efficient.

Features
1. Frequency inverter control
2. Magnetic powder brake for the control of unwinding tension, automatic tension controller
3. Rewinding controlled by frequency motor
4. Automatic counting, straight knife
5. Pneumatic material loading
6. PLC control for machine

 Main technical parameter

  Base material

PET

  Ribbon thickness

0.007-0.01mm

  Working speed

100-150m/min

  Slitting width

Bigger than 50mm

  Unwinding diameter

550mm

  Paper core

10, 12.5, 25mm
