Model NO.
QFJ-1300A
Quantity:

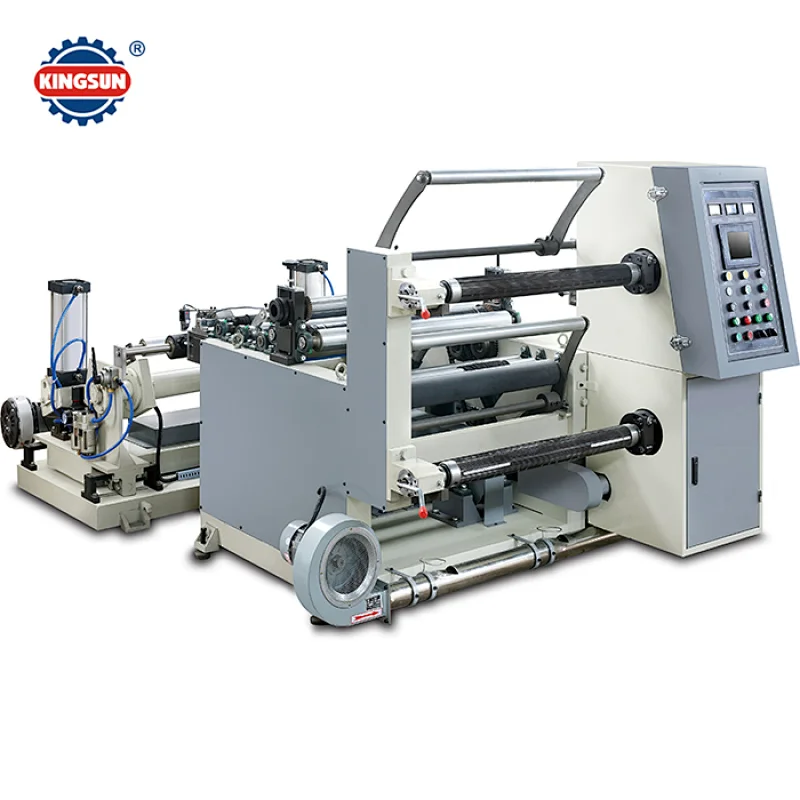

​​​​​​QFJ-1300A Multi-functional Automatic Film And Paper Slitting And Rewinding Machine

QFJ-A multi-functional automatic slitting and rewinding machine adopts integral casting technology, which is sturdy and durable, stable operation of equipment, no offset, and adopts frequency converter and computer touch screen control, with high cutting precision. The machine adopts the central winding method and automatic tension control; the whole computer touch screen is controlled and adopts frequency conversion speed regulation to maintain smooth running during acceleration; the machine can cut polypropylene, polyethylene, plastic film, composite materials for various printing and packaging, Single-layer aluminum foil, tipping paper, candy paper, electric newspaper, computer paper, cellophane, cigarette paper, toilet paper, special materials, etc.

 Main technical parameter

Model

1300A

  Maximum cutting width

800mm

  Maximum material diameter

1300mm(3 inch)

  Min slitting width

100mm

  Unwinding method

Inflatable shaft(3 inch)

  Maximum rewinding diameter

400mm

  Inner diameter of finished paper core

3 inch

  Rewinding shaft

Inflatable shaft(3 inch)

  Maximum machine speed

300m/min

  Maximum slitting speed

260m/min

  Slitting accuracy

≤±0.2mm

  Power

10kw

  Machine dimension

2900x2400x1600mm

  Machine weight

3T
