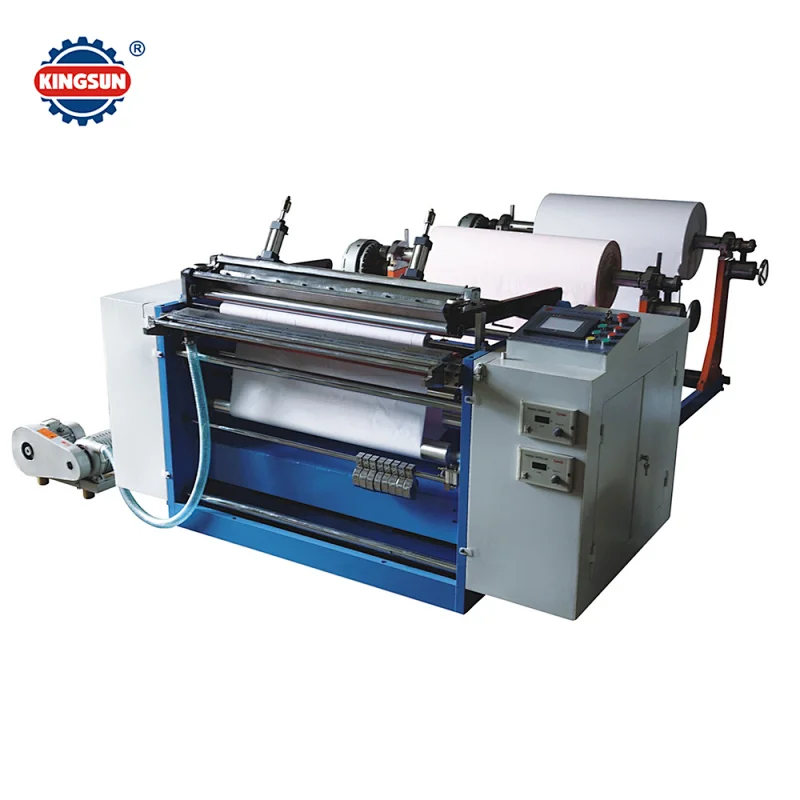

High Speed ATM Paper Thermal Roll Slitter Rewinder Machine
High Speed ATM Paper Thermal Roll Slitter Rewinder Machine

High Speed ATM Paper Thermal Roll Slitter Rewinder Machine

Model NO.
QFJ-N900
Minimum order quantity:
1 set
Quantity:

QFJ-N900 High Speed ATM Paper Thermal Roll Slitter Rewinder Machine

ATM paper roll slitter rewinder machine is suitable for slitting and rewinding record paper such as fax paper, computer print paper, electro-cardiogram printing paper, cash register roll paper etc.

Main technical parameter

Maximum slitting width

φ900mm

Maximum unwinding diameter

φ900mm

Maximum rewinding diameter

200mm(some big width roll diameter can reach 300mm)

Slitting width

210mm,216mm,257mm.(for small roll 32mm,35mm,57mm etc.)

Unwinding paper core diameter

76mm

Rewinding paper core inner diameter

0.5 inch,1 inch or special size

Maximum machine speed

180m/min

Power supply

5kw

Voltage

380V,50Hz,3P

Machine dimension

2500x1500x1400mm

Machine weight

1700kg
