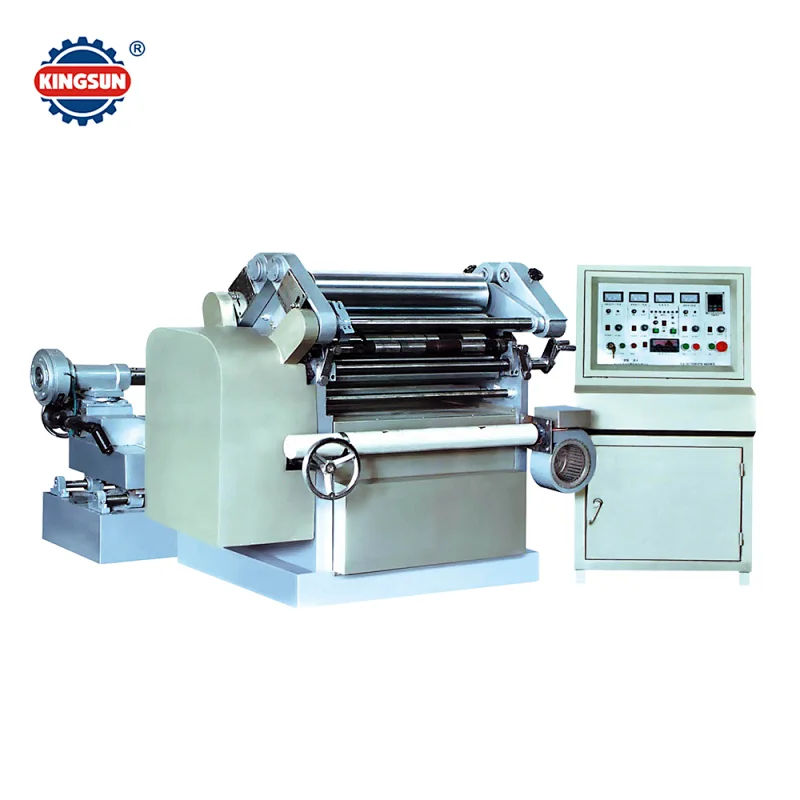

Surface Rewind Type Slitting Machine QFJ-C Series

Categories

Surface Rewind Type Slitting Machine QFJ-C Series

Surface Rewind Type Slitting Machine QFJ-C Series
CategoriesPaper Slitting Machine
AlbumView larger image
BrandKingsun paper packing machine
ModelSurface Rewind Type Slitting Machine QFJ-C Series
FOB portNingbo,China
Terms of PaymentL/C, D/P, T/T, Western Union
Update Time2019-07-23
Detail Information

This series surface rewinding type slitting rewinding machine is mainly suitable for slitting reel-shape materials such as paper, Aluminum foil and laminated materials in narrow width.
Features:
1. Disc knife for slitting, double-shaft surface rewinding, smooth and even edge side slitting.
3. Photoelectric error correction for unwinding.
4. Magnetic powder tension control for unwinding and rewinding.
5. Frequency converter for main machine speed control.
6. Especially suitable for slitting reel-shape materials with very narrow width which more than 5mm.

Main specifications:

Model

QFJ-C700

QFJ-C1100

QFJ-C1300

Material width

700mm

1100mm

1300mm

Max unwinding diameter

600mm

600mm

600mm

Max rewinding diameter

450mm

450mm

450mm

Working speed

0-180m/min

0-180m/min

0-180m/min

Total power

3kw

4.5kw

5.5kw

Dimensions

1800X1700X1200mm

1800X2100X1200mm

1800X2300X1200mm

weight

1800kg

2200kg

2500kg
