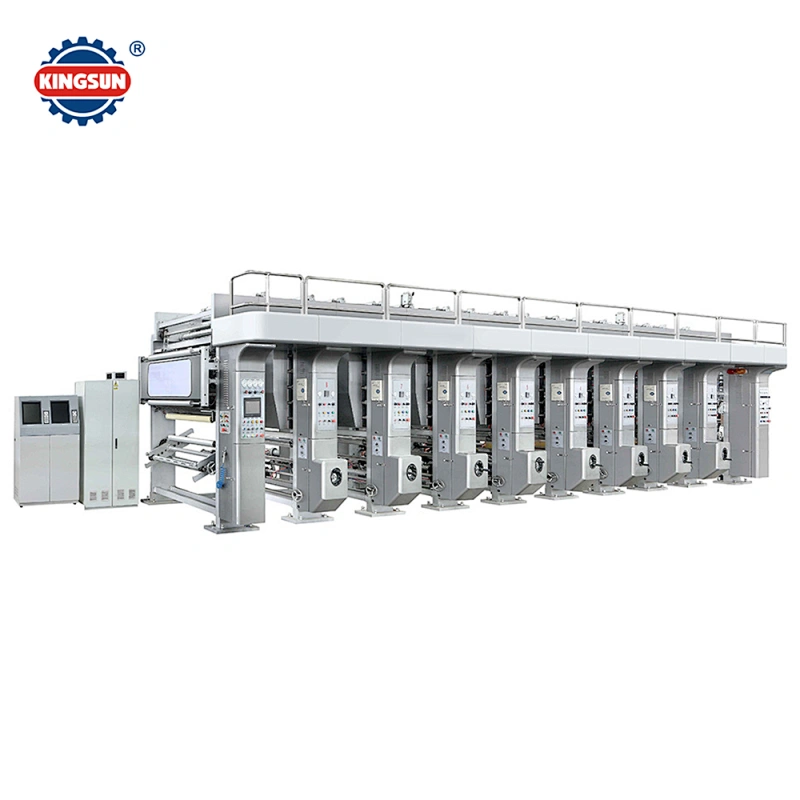

KMASY-E Series Computer Control 6 Color Plastic Bag Rotogravure Printing Machine
KMASY-E Series Computer Control 6 Color Plastic Bag Rotogravure Printing Machine
KMASY-E Series Computer Control 6 Color Plastic Bag Rotogravure Printing Machine

KMASY-E Series Computer Control 6 Color Plastic Bag Rotogravure Printing Machine

Model NO.
600 800 1000 1200
Price:
USD 75000.00-95000.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
10 set / Month
Country of Origin:
Ningbo or Shanghai
Quantity:
  • Type:Rotogravure Printing Machine
  • Place of Origin:CN;ZHE
  • Weight:19 tons
  • Usage:Label Printer
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Model Number:600 800 1000 1200
  • Brand Name:Kingsun
  • Warranty:one year
  • Color & Page:MULTICOLOR
  • Condition:New
  • Gross Power:100kw
  • Dimensions(L*W*H):15300*3750*2850mm
  • Voltage:220V/380V
  • Automatic Grade:Automatic
  • Certification:ISO9001 and CE
  • Usage:gravure printing machine
  • Plate Type:Gravure cylinder
  • driven type:electric
  • tension control:automatic
  • operation:touch screen
  • machine color:white or blue
  • motors:7 motors
  • shipping:by sea
  • loading:in container

KMASY-E Series Computer Control 6 Colors Plastic Bag Rotogravure Printing Machine

KMASY-E computer control color register 6 colors plastic bag rotogravure printing machine is suitable for multi-color continuous gravure printing for such roll film materials with excellent printing performance as BOPP film, PET film,PVC shrink film label, PE film, aluminum foil and paper, etc. It is widely use for flexible packaging making such as plastic bag or reel film materials.Economic in price and very good performance, it becomes most popluar model for the buyers.

Features of gravure machine:

1,Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of color register quickly and accurately.

2,Interactive interface:touch screen

3,Automatic tension control for unwinding,material in feeding,material out feeding and rewinding.

4,Closed oven and independent heating hot air blowing system, automatic constant temperature system.

5,Pneumatic impressing system and pneumatic doctor blade system

6,Diaphragm-type pneumatic ink auto circulating system

7, Air shaft for unwinding/rewinding material loading

8,Printing linear speed and meter counting display

9,Shaft less printing cylinder loading device,printing cylinder is fixed by shaft-less air chuck.

10,web video camera.

Main technical specifications:

Printing material

PVC 35--60μm

OPP 20--60μm

POPP 20--60μm

PET 12--60μm

PE 12-60μm

NY 15-50μm

CPP 20-60μm

Printing length

1000mm

Printing width

1000mm

Range of gravure cylinder

120mm—400mm

MAX of the machine speed

150m/min

MAX of the printing speed

120m/min

Overprint accuracy

±0.12mm

MAX DIA of unwinding

and rewinding

600mm

DIA of unwinding and rewinding roll

74mm

DIA of unwinding and rewinding paper roll

ID:76mm OD:96mm

Machine weight

About 16000kg(1000mm 6 color)

Overall dimension

13300*3750*2850mm(L*W*h)

Packaging & Shipping

All the machines are strictly checked and well packed before loading into container.


Plastic bag gravure printing machine has various model for flexible packaging printing.
