CategoriesManual Die Cutting and Creasing Machine
AlbumView larger image
BrandKingsun paper packing machine
ModelML Series Die Cutting Creasing Machine
certificateCE
FOB portNingbo
Terms of PaymentL/C, D/P, T/T, Western Union
Update Time2019-10-19
Detail Information

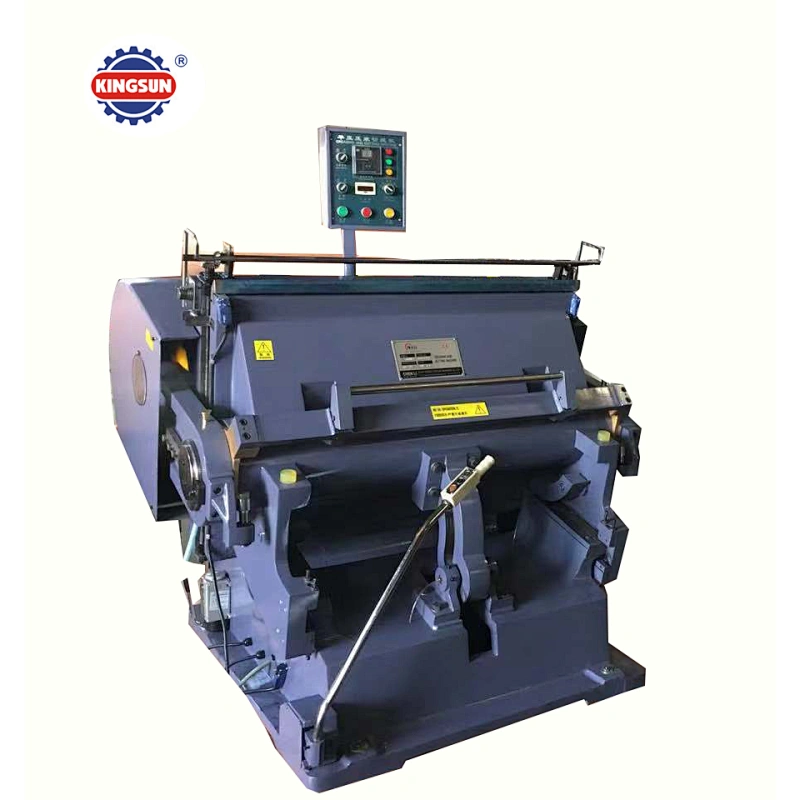

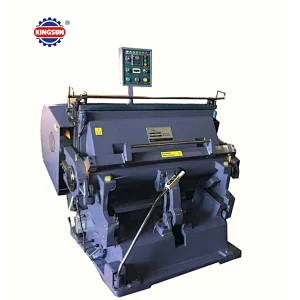

ML series hand feed die cutting & creasing machine, also called as clam shell die cutter, is a kind of special equipment for die cutting and creasing a wide range of materials, such as paper, cardboard, corrugated board, plastic sheet and leather. It is applicable to the fields of printing, packaging, decoration and plastic industries. ML series machine has been well accepted by the customers from home and abroad due to its outstanding performance, reliable in quality, easy for operating and low cost in price.
Features:
1. Sliding bearings are made of high quality alloy copper, thus to enhance the effect of anti-friction and vibration reducing.
2. Flywheel with big moment of force and large pressure.
3. High strength due to whole iron casting by using high quality material for machine body.
4. Single plate electromagnetic clutch is sensitive and reliable.
5. With functions of single piece, continuous and opening delay operating, dwell range is adjustable from 1-10 seconds.
6. Operating position is reasonably designed, moving-bed can be opened to its optimum.
7. Central lubrication system guarantees fine lubrication and reduces friction.
8. Safety protection system is reliable.
9. Adjustable chase clamp structure can adapt all kind of die mould plate.
10. Easy to operate and maintain.
11. Electric control system is in line with international standard.
12. CE standard type can be made upon request.
13. Heating plate as option for die cutting plastic sheet
Main Specifications:
Model
Inner chase
Speed
strokes/min
Rule length
Weight
Power
Overall size
ML 750
750*520mm
25±3
15m
2000kg
2.2kw
126*135*128cm
ML 930
930*660mm
25±3
25m
3200kg
4 kw
185*165*195cm
ML 1040
1040*720mm
23±3
30m
3500kg
4 kw
185*175*200cm
ML 1100
1100*800mm
23±2
32m
4500kg
4 kw(6p)
210*197*210cm
ML 1200
1200*830mm
20±2
32m
4500kg
5.5 kw
210*200*210cm
ML 1300
1300*920mm
20±2
40m
5600kg
5.5 kw
202*242*215cm
ML 1400
1400*1000mm
18±2
45m
6200kg
7.5 kw
201*240*193cm
ML 1500
1500*1050mm
18±2
48m
7500kg
7.5kw
205*262*220cm
ML 1600
16±2
50M
12000kg
11kw
212*234*213cm
ML 1700
1700*1300mm
16±2
50M
14500kg
11kw
220*280*213cm
ML 1800
1800*1300mm
16±2
52M
15500kg
11kw
234*292*220cm
ML 2000
2000*1400mm
16±2
58M
16500kg
15kw
234*310*220cm
ML 2500
2500x1400mm
13±2
75M
19000kg
18.50kw
234*360*220cm
ML3000
3000x1450mm
12±2
