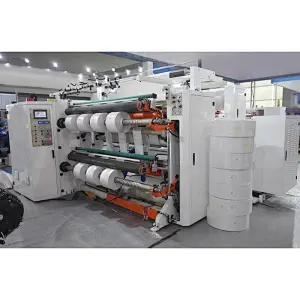

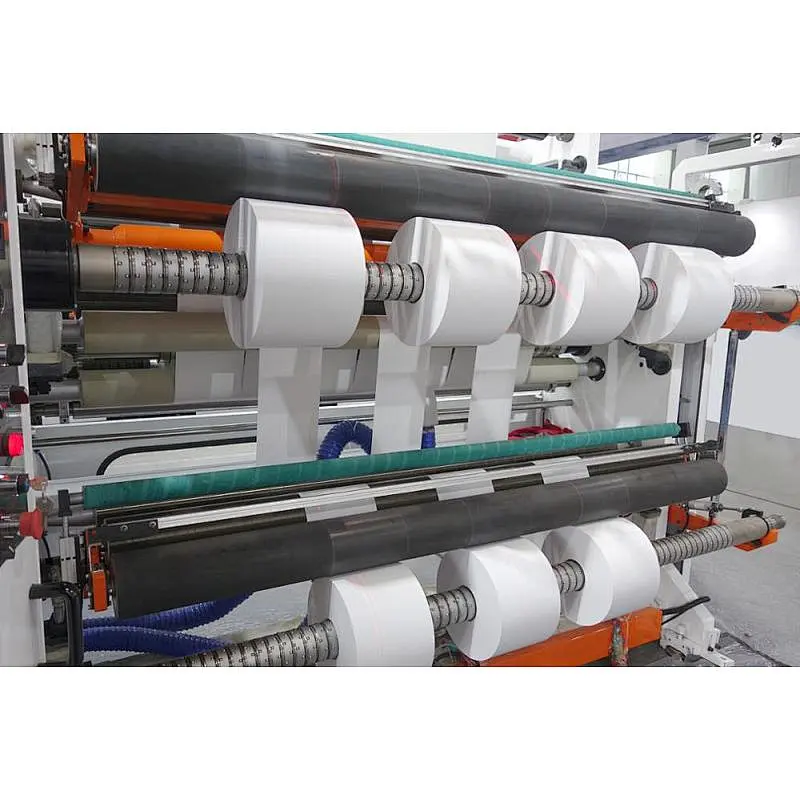

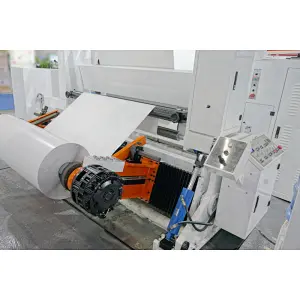

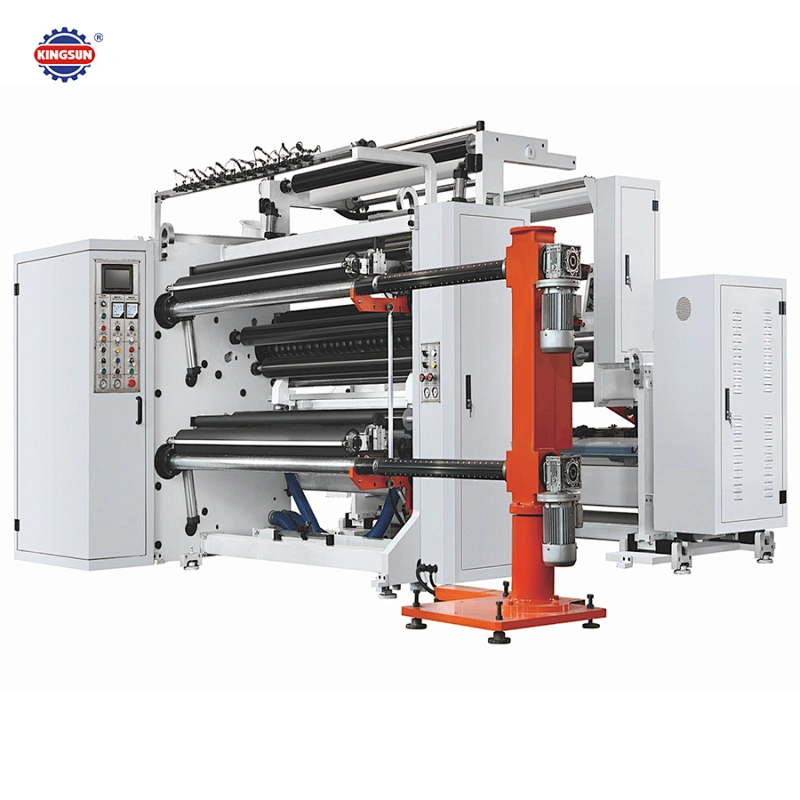

High Speed Jumbo Roll Paper Adhesive Label Sticker Automatic Slitter Rewinder Machine
High Speed Jumbo Roll Paper Adhesive Label Sticker Automatic Slitter Rewinder Machine
High Speed Jumbo Roll Paper Adhesive Label Sticker Automatic Slitter Rewinder Machine
High Speed Jumbo Roll Paper Adhesive Label Sticker Automatic Slitter Rewinder Machine
High Speed Jumbo Roll Paper Adhesive Label Sticker Automatic Slitter Rewinder Machine
High Speed Jumbo Roll Paper Adhesive Label Sticker Automatic Slitter Rewinder Machine
High Speed Jumbo Roll Paper Adhesive Label Sticker Automatic Slitter Rewinder Machine
High Speed Jumbo Roll Paper Adhesive Label Sticker Automatic Slitter Rewinder Machine
High Speed Jumbo Roll Paper Adhesive Label Sticker Automatic Slitter Rewinder Machine
High Speed Jumbo Roll Paper Adhesive Label Sticker Automatic Slitter Rewinder Machine
High Speed Jumbo Roll Paper Adhesive Label Sticker Automatic Slitter Rewinder Machine

High Speed Jumbo Roll Paper Adhesive Label Sticker Automatic Slitter Rewinder Machine

Model NO.
KSFG-1300
Quantity:

KSFG-1300 High Speed Jumbo Roll Paper Adhesive Label Sticker Automatic Slitter Rewinder Machine

This series paper slitter rewinder machine is mainly for jumbo roll paper or film slitting into small reels material,fast speed and reliable, main parts all world famous brand.

Main technical parameter

Maximum unwinding diameter

φ1200mm

Maximum rewinding diameter

φ600mm

Slitting width

50-1300mm

Rewinding paper core diameter

3″

Unwinding paper core diameter

3/6″

Maximum machine speed

500m/min

Rewinding motor power

4.5kw ( 2 sets)

Unwinding motor power

5.5kw （2 sets）

Drawing motor power

6.5kw

Total power of machine

33kw

Machine dimension

4100 (L) x 4700 (W) x 2150mm (H)

Machine weight

About 4200kg

Machine color

Black white (other colors can choose)
