Price:
USD 60,000.00-210,000.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
30 set / Month
Country of Origin:
Ningbo
Quantity:
  • Condition:New
  • Type:Paper Cutting Machine
  • Automatic Grade:Automatic
  • Place of Origin:CN;ZHE
  • Warranty:1 YEAR
  • After-sales Service Provided:Online support
  • After-sales Service Provided:Free spare parts
  • After-sales Service Provided:Field installation, commissioning and training
  • After-sales Service Provided:Field maintenance and repair service
  • After-sales Service Provided:Video technical support
  • Brand Name:KINGSUN
  • Voltage:380V 3Phase (customizable)
  • Dimension(L*W*H):7700*5200*2600mm
  • Weight:16 Tons
  • Certification:CE Certificate
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Optional:Stripping
Product Description

 MHK-1050CE Paper Carton Box Flat Automatic Die Cutting Machine with Stripping

 The MHK series fully automatic die cutting machines can efficiently complete the die cutting and embossing of products,as well as maintaining the highest precision and product quality.The MHK series full-automatic/hot foil stamping/stripping/creasing die-cutting machines are well equipped and almost can adapt to all die cutting requirements of products.



Main features:

1. High quality feeder made in Taiwan with 4 suction nozzle for stack paper and 4 suction nozzle for delivering paper , ensures stable and fast paper feeding .

2. Pre-loading unit , non-stop feeding , with Max pile height to 1600mm.

3. The pre-loading unit is equipped with guiding rails , operator move the stack paper to feeder accurately and conveniently .

4. Side and front guiding have sensor which can adjust the sensitivity.

5. The anti-obstacle device prevent the machine damaged.

6. Paper feeding will be slow down when the paper reach the front guiding , achieve more accurate location .

7. Japanese NITA convey belt , the speed can be adjusted .

8. Germany made stainless steel is used for convey board in order to achieve smooth and quick paper delivery .

9. Pneumatic cutting plate lift for easy slide in and out .

10.Easy way to turn over and change die cutting chase and plate with short time .

11.High quality gripper bars made in Japan with long life time .

12.High quality U.K imported chain ensure stability and accuracy in long time running .

13.Automatic lubrication and cooling system for main drive and automatic lubrication for main chain .

14.Overload protection device with torque limiter in index box for the highest safety of operator and equipment .

15.Crank shafts and worm rod is made of 40 Cr with heating handling . Turbine is made of copper .

16.High quality imported air clutch .

17.SMC pneumatic components .

18.The upper , middle and lower stripping frames are controlled by 3 GPRS of cam wheels respectively.

19.Match with the centerline registration system in die cutting unit , the same system also apply to the stripping station to minimize changeover time , Accurate positioning can increase production efficiency .



Main technical specifications:



ModelMHK-1050T/TCMHK-1050 MHK-1050CE
Max.Sheet size1050*750 mm1050*750 mm1050*750 mm
Min. Sheet size400*360 mm400*360 mm 400* 360 mm
Max.Die cut size1040*720 mm1040* 720mm1040*720 mm
Max Hot stamping size1040*720mm nono
Inner chase size1080*745mm1080*745 mm1080*745 mm
Paper thickness

80-600g/m2

corrugated less than 4mm

80-600g/m2

corrugated less than 4mm

80-600g/m2

corrugated less than 4mm

Accuracyless than 0.1mmless than 0.1mmless than 0.1mm
Max. pressure300T300T300T
Max die cut speed7500s/h7500 s/h7500 s/h
Max feeder pile height1600mm(include pallet)1600mm(include pallet)1600mm(include pallet)
Max delivery pile height1400mm(include pallet)1400mm(include pallet)1400mm(include pallet)
Max.foil diameter250mm(vertical) 200mm(horizontal)NoNo
Foil width20-1020 mmNo No
Main motor11Kw11Kw11Kw
Overall size7700*5200*2600mm6300*4600*2400mm7700*4600*2400mm
Machine weight18.5 Ton16 Ton17 Ton
Full power52 Kw16 Kw16.9 Kw

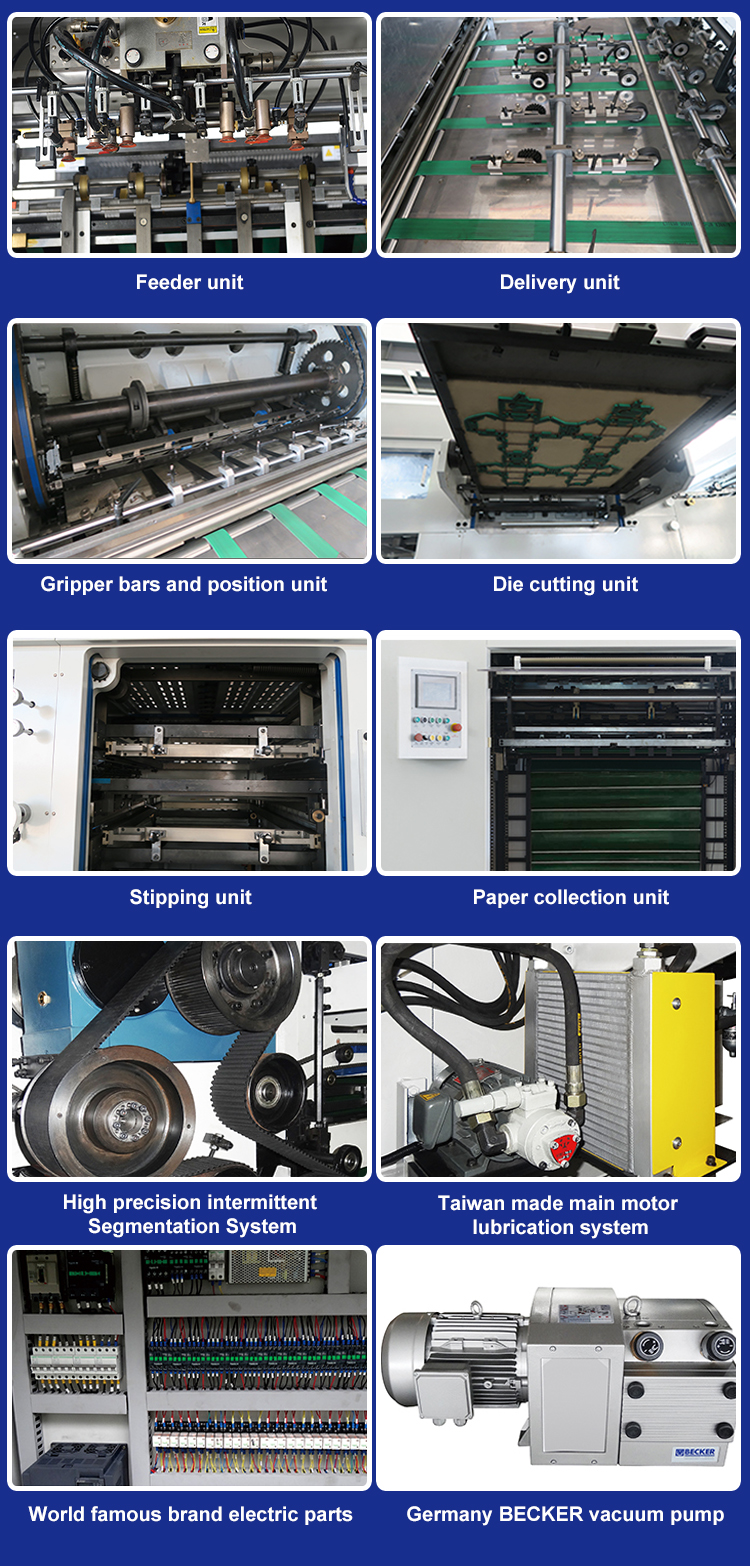

Detail of the machine  :
