Model NO.:
KSM-1500/1700/1900
Quantity:

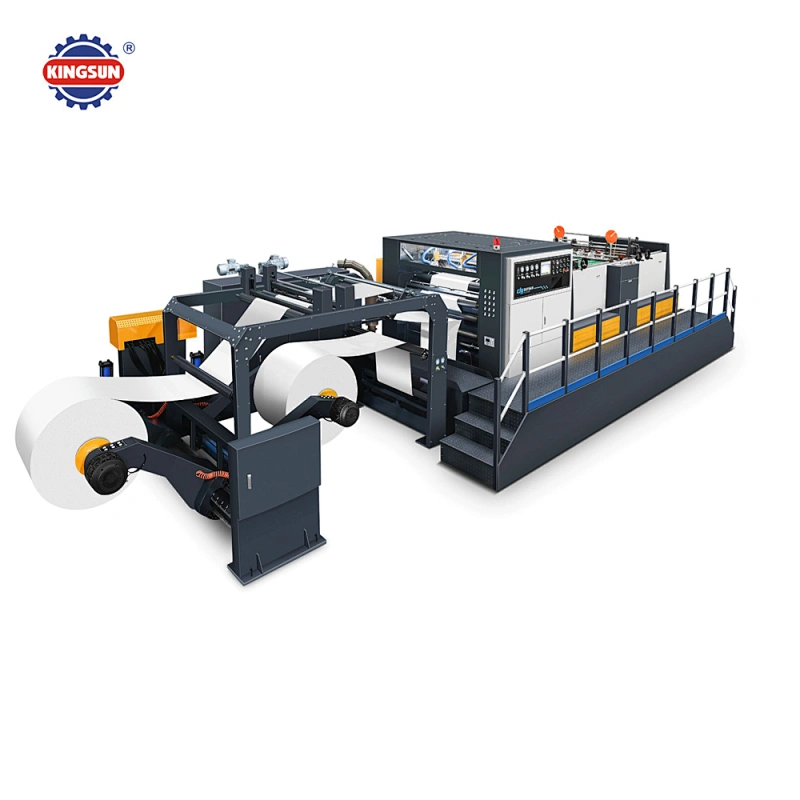

KSM Series Servo Precision High Speed Automatic Paper Roll to Sheet Cutting Machine

It can efficiently complete paper slitting, trimming and sheet cutting, as well as maintaining the highest precision and product quality. The KSM series paper roll sheet cutting machines are well equipped with two rotary cutting knives,automatic lubrication system, world top brand electric control componnents, to make sure this paper processing equipment meet the world top level paper roll to sheet cutter machine.

Main features:

(1)Adopt steel plate-Q335, the mainframe wallboard has precision manufacturing and high strength, thus will never-deformed.

(2)The whole machine all uses SKFNSK Original imported bearings.

(3)The whole machine uses original parts imported from France Schneider, Japanese OMRON and Japanese SMC, etc.

(4)The conveyor belt is imported from Japan.

(5)The back cutter is adopt Germany Ni-Cr-Mo metal steel, with high precision and will never- deforms; the knife edge is easy to adjust and calibrate.

(6)Use the automatic angle-aligning system to realize fast angle aligning of worksheet.

(7)Equipped with anti-curve automatic regulation device, ensure fast and smooth when adjustment of anti-curved paper.

(8)Paper feeding part adopts pre-pressing device, to ensure that the paper is not wrinkled.

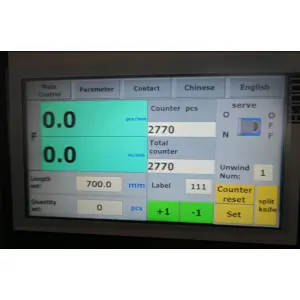

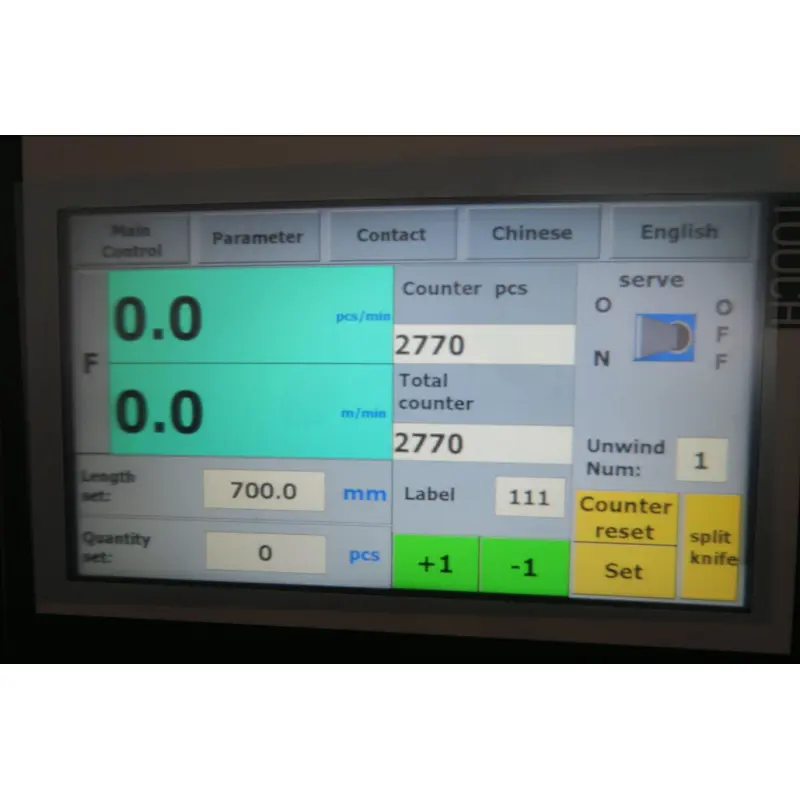

(9)Equipped with touch-screen operation interface in both Chinese and English.

(10)All adopt Taiwan AIRTAC's pneumatic components to ensure every pneumatic action performs accurately.

Technical specifications:

Model

KSM-1500/1700/1900

Model of cutting paper

Double rotary knife

Thickness of cutting paper

60-1000GSM

Max. unwinding diameter

1700mm(KSM-1100)

450-1600MM(KSM-1400/1700/1900)

Max. paper cutting width

1100mm(45")/1400mm(55")/1700mm(67")/1900mm(75")

Cutting length width

450-1600MM

Format of sheeting

2 sheets

Cutting precision

Cutting length 1000mm : ±0.2mm

Cutting length >1000mm:±0.1%

Max. cutting speed

300 cuts/min

Max. cutting line speed

300 sheets/min

Max. paper piling height

1300mm(KSM-1100)

1500MM(KSM-1400/1700/1900)

Request of air compressor

0.8Mpa

Power consumption

380V/220V x 50Hz

Machine weight (G.W)

12000/16000/18000/20000KGS
