v grooving machine
v grooving machine

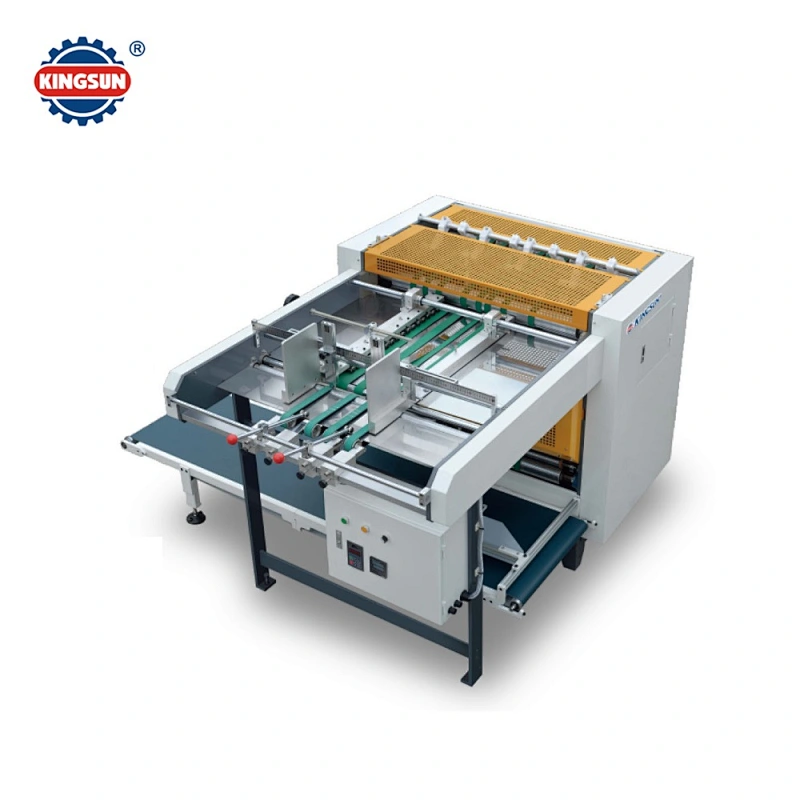

KZ-900 Automatic V Grooving Machine

Model NO.

KZ-900 Automatic V Grooving Machine

This automatic grooving machine for rigid box making is new improved, also we do have the other models for options, this machine is aimed to notch groove V or groove U (optional) onto kinds of materials, like cardboard, MDF board, etc.


1. Easy for operation, high efficient.

2. Wide application, it works for cardboard, MDF board, etc.

3. With adjsutable cutting angle (80-140 degree).

4. Perfect finished effect, clean and no dust left.

5. Widely applied to make hard cover, paper box, etc.

Main specifications:

  • Width of cardboard: 130-850mm
  • Length of cardboard: 130-500mm
  • Distance of each groove: 0-800mm
  • Thickness of cardboard: 0.5-2.5mm.
  • Grooving degree:80-140° Adjustable
  • Total cutting knives: 9 pcs
  • Production speed: 26m/min, i.e.100pcs/min(size:200x200mm)
  • Dimensions: L2100 x W1350 x H1400mm
  • Weight: 1580Kg
