Model NO.
KTM-320D
Quantity:

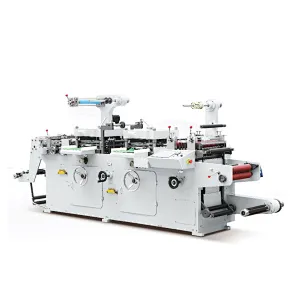

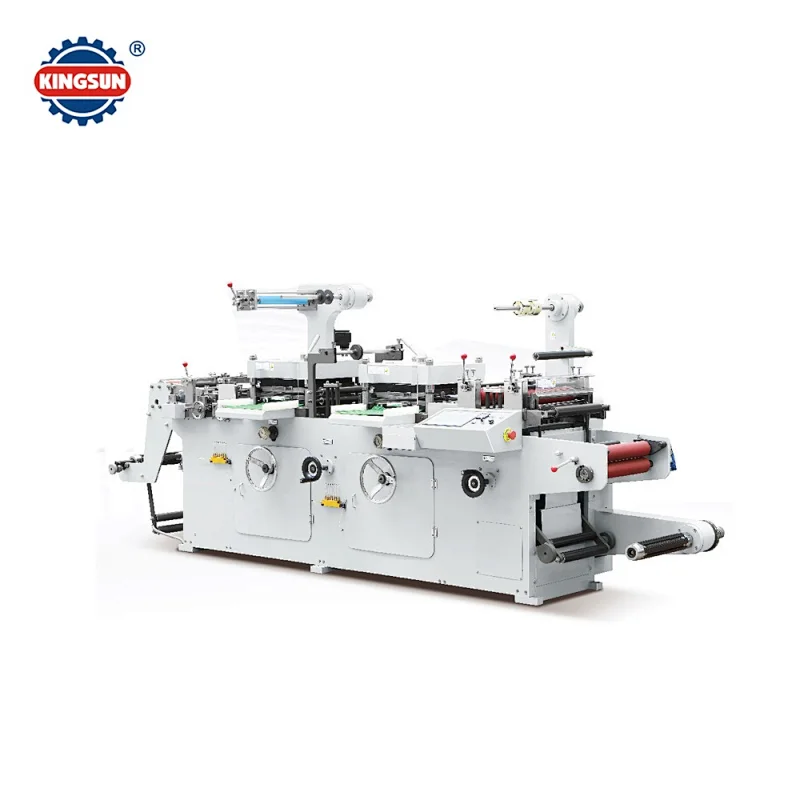

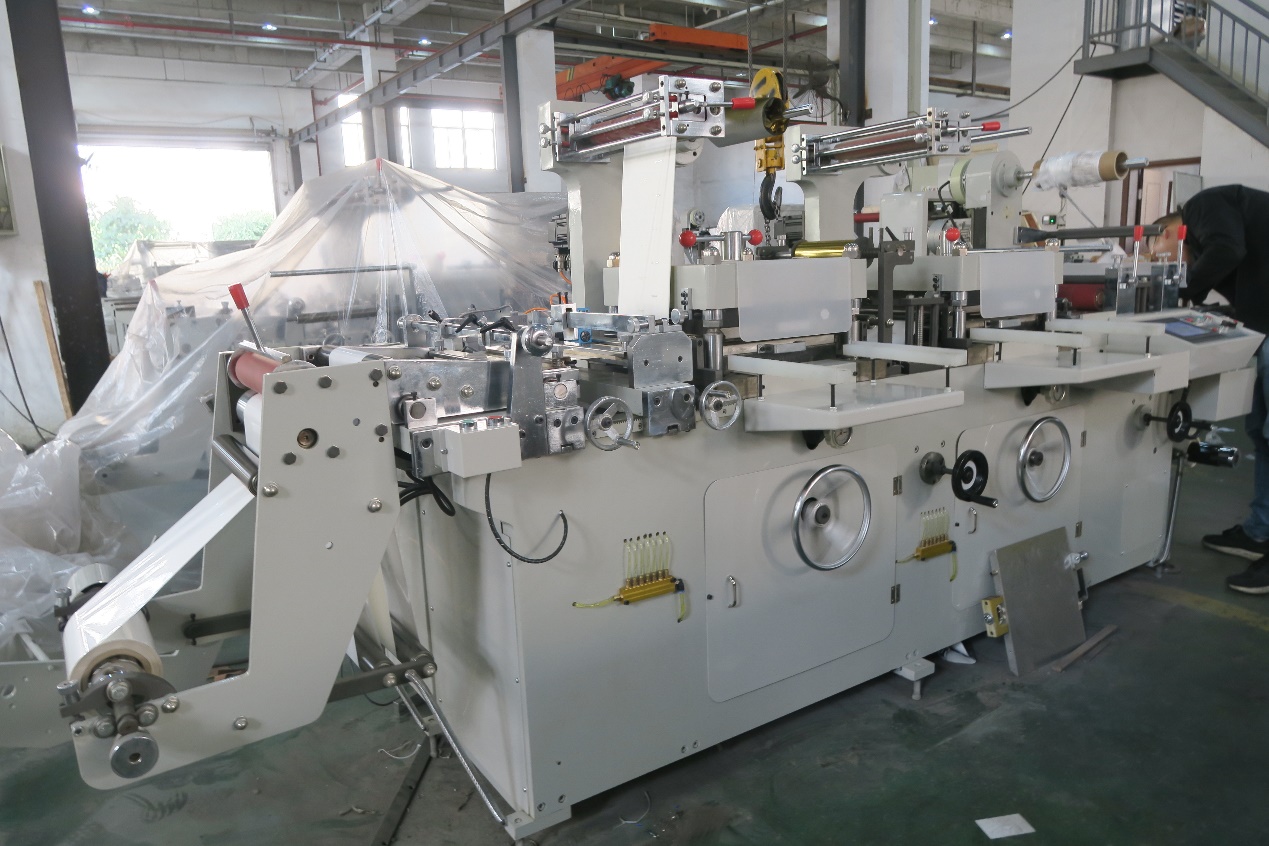

KTM-320D/420D Two-Station Type Label Die Cutting Machine

Main Characters:
1. The machine is to add one hot stamping station on the basis of the standard single station label die cutting machine, which can realize the hot stamping and die-cutting at one time, and can also complete two times die-cutting work.
2. The machine is flat-pressed and high-precision die-cutting, with latest technology for transmission. The material and the die-cutting are controlled by the servo controller, so it is reliable and efficient.

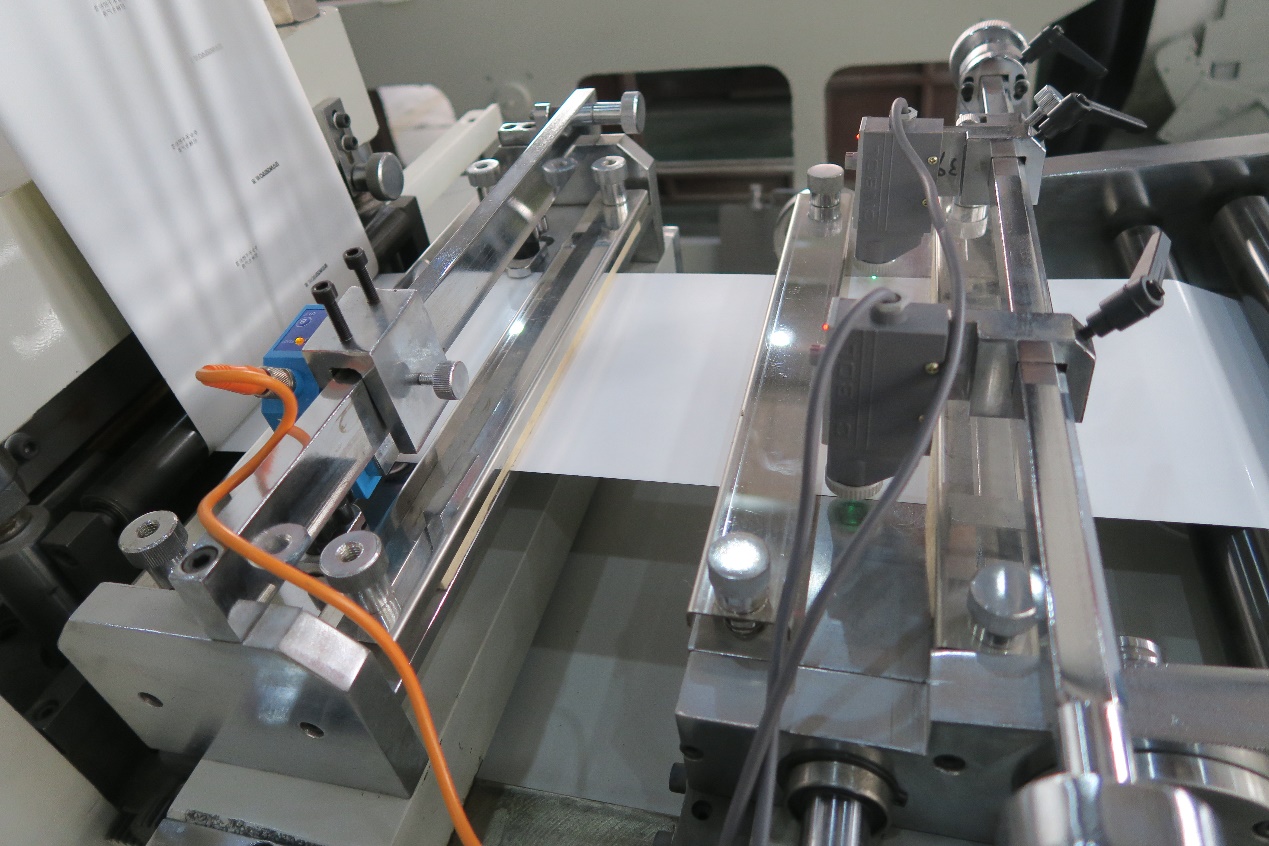

3. The two sides of the printing mark and the longitudinal color mark are accurately tracked and positioned by three photoelectric eyes. The machine completes the roll of die cutting, hot stamping, waste rewinding, sheeting at one time which can make rolls to fit for automatic labeling machine.
4. It is very suitable for die-cutting and foil stamping of paper self-adhesive labels, polyester film labels and anti-counterfeiting hologram labels.
5. This machine is the best auxiliary converting equipment for high-speed reel label printing machine, flexographic printing machine, continuous screen-printing machine, gravure printing machine and anti-counterfeiting label embossing machine etc. It is the most ideal and efficient model for all label making company.


ModelKTM-320D
Die Cutting Speed20-200 times/min
Max. Web Width320mm
Max. Die Cutting Width310mm
Max. Die Cutting Length300mm
Max. Feeding Diameter600mm
Positioning Precision+/-0.1mm
Main Motor Power5.5KW
Machine Weight2650kgs

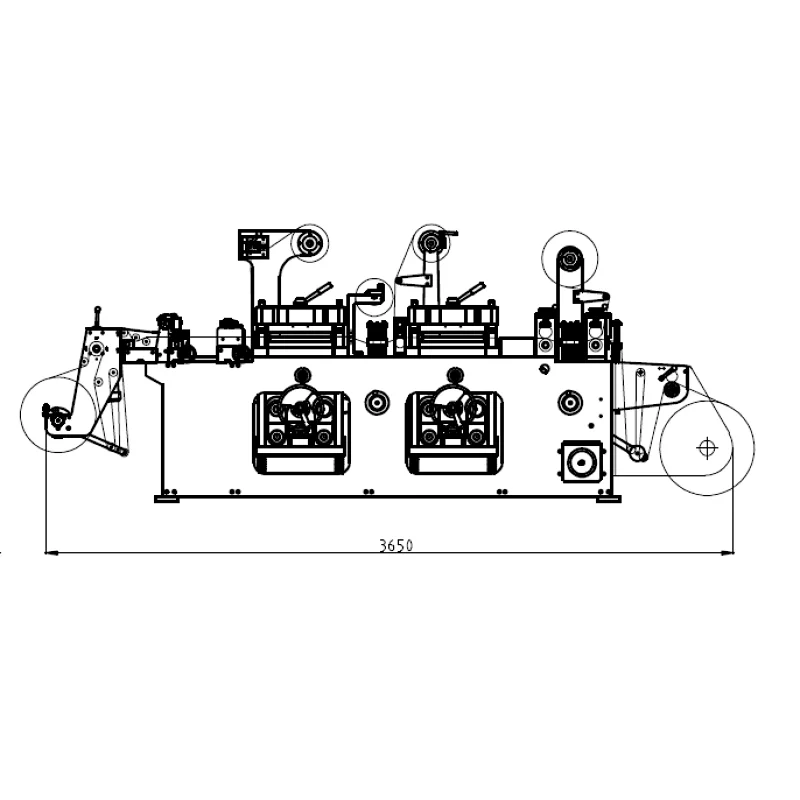

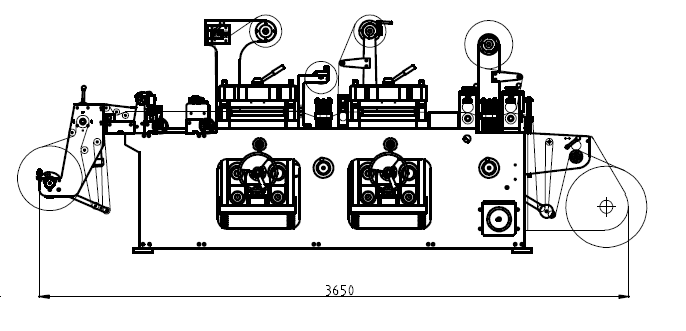

Dimensions (L x W x H)3700 x 1200 x 1660mm
