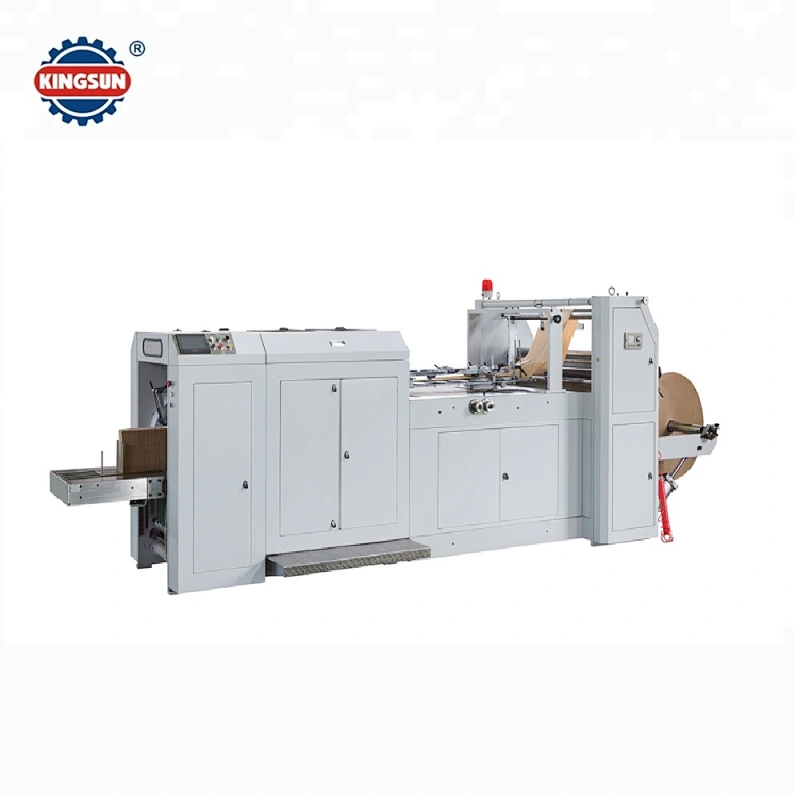

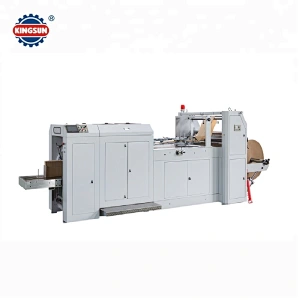

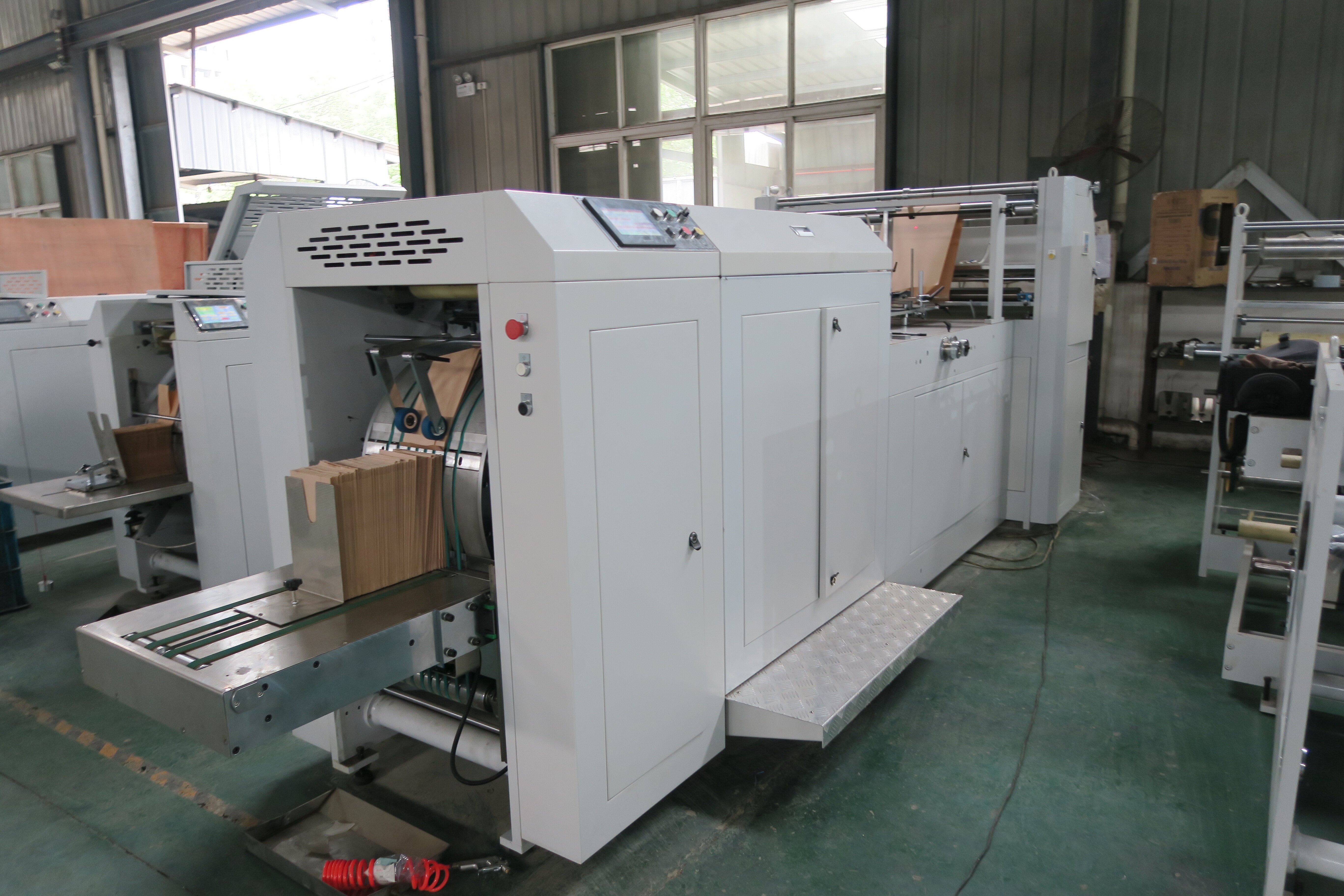

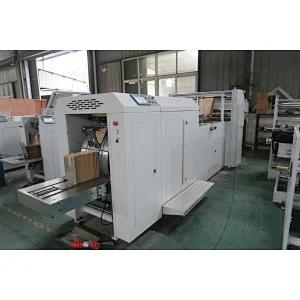

LSD-700 Automatic High Speed Paper Bag Making Machine
Introduction

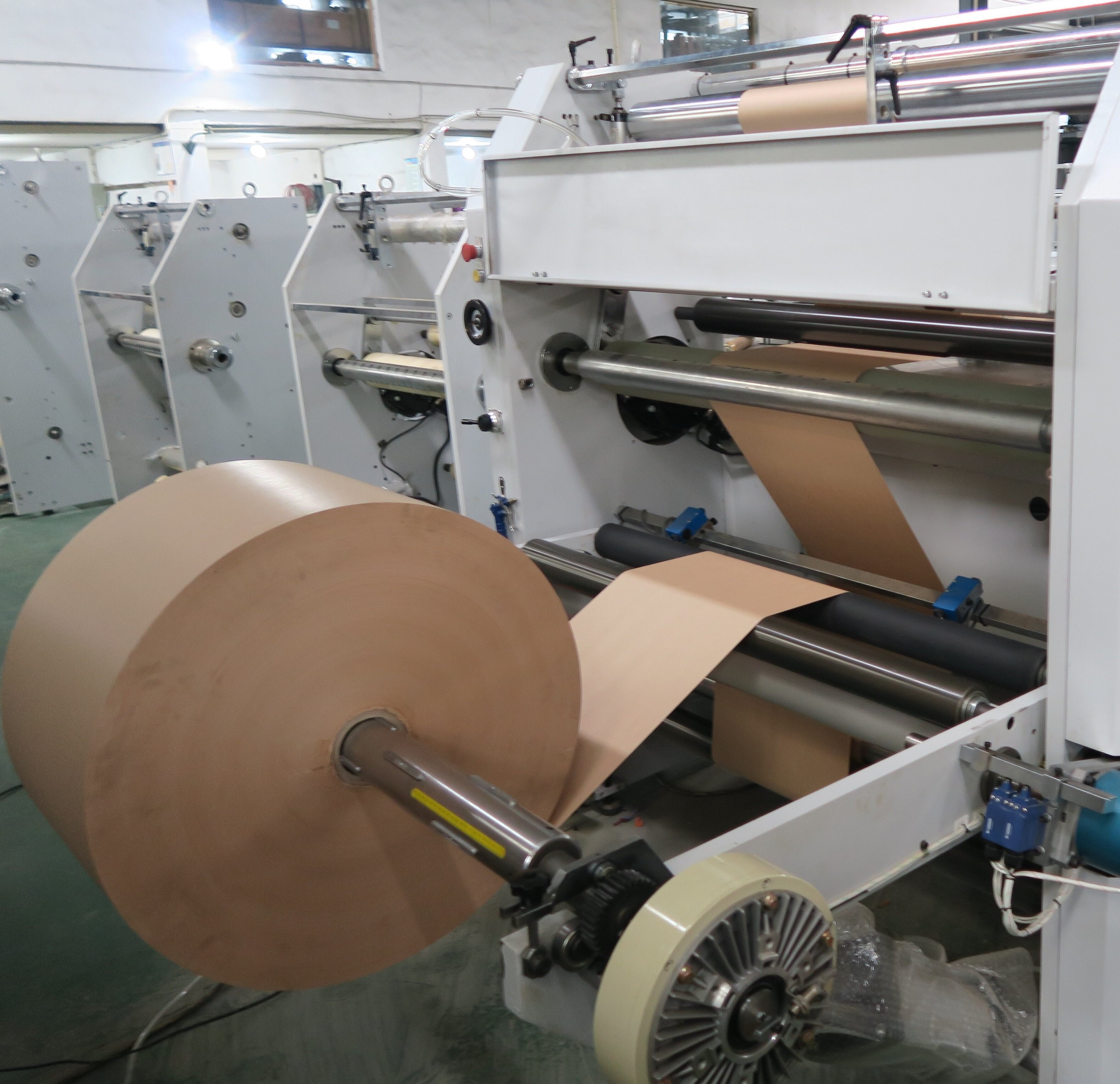

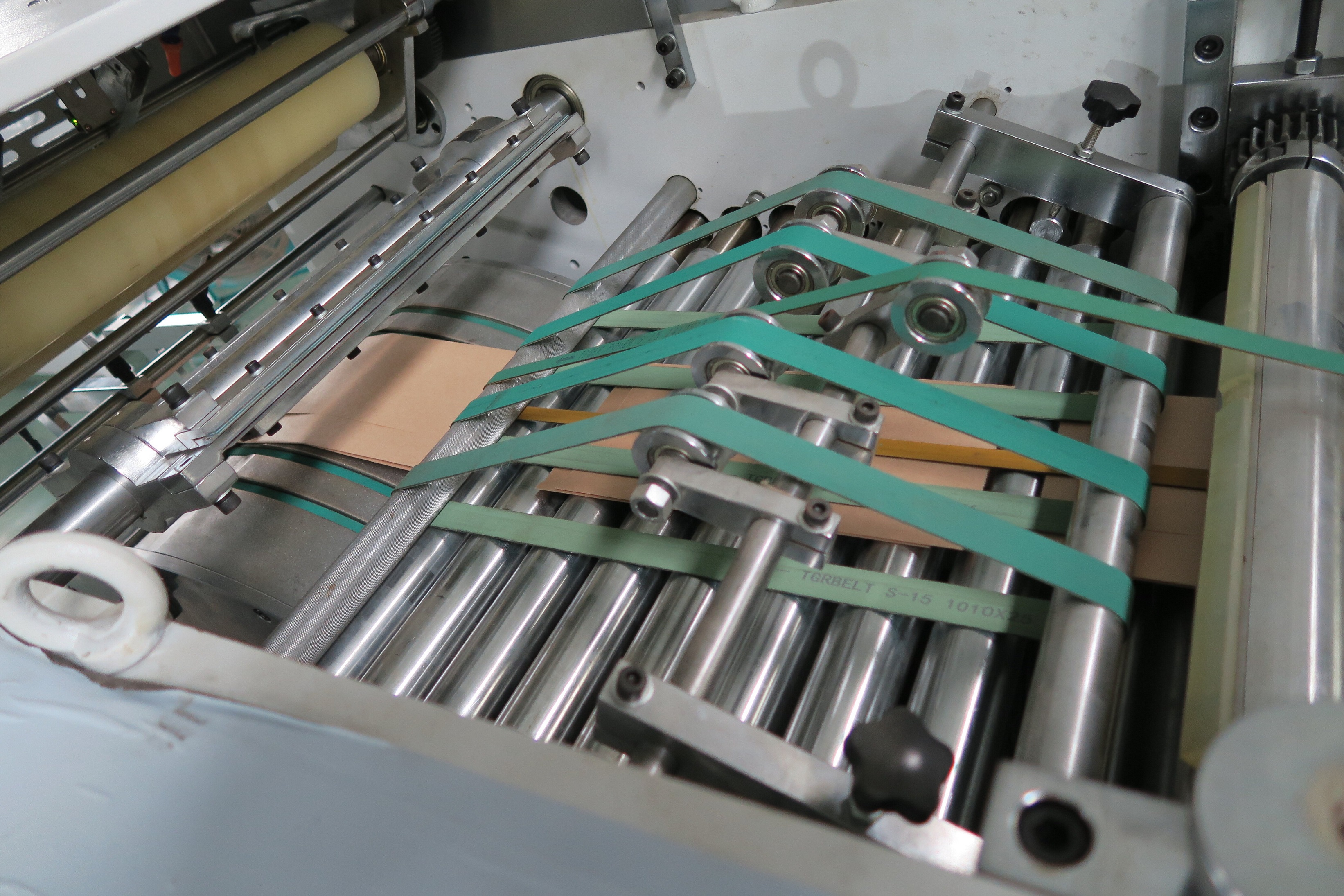

This machine forming the paper bag in one process from roll paper, feeding, transfer, die cutting mouth shape piercings, automatic glue, frilled M above, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag. Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald’s bags.
Features
1.Adopt touch screen and PC control system, the work condition can be shown real time.
2.Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3.Material lifting adopts pneumatic lift structure.
4.Automatic constant tension control system. The tension will be just right from beginning to end.
5.Double photoelectric sensor limit automatic correction control system
6.The machine has automatic counting system.
2.Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3.Material lifting adopts pneumatic lift structure.
4.Automatic constant tension control system. The tension will be just right from beginning to end.
5.Double photoelectric sensor limit automatic correction control system
6.The machine has automatic counting system.

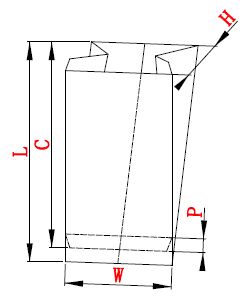

| Type | LSD-700 | |
| Cutting Length(C) | 170-710 mm | |
| Bag Length(L) | 160-700 mm | |
| Bag Width(W) | 80-350 mm | |
| Gusset Highly(H) | 0-120 mm | |
| Standard flap(P) | 15-18 mm | |
| Max. Speed | 600 pcs/min | |
| Max. reel weight | 600 Kg | |
| Max.Roll Diameter | 1200 mm | |
| Reel inner diameter | 76 mm | |
| Paper specification | 30-100 gsm | |
| Web edge control system | Double photoelectric automatic correction control system | |
| Web tension control system | Automatic constant tension control system | |
| coating way | Coated with cold glue | |
| Air pressure | ≥0.12cmm, 0.4~1Mpa | |
| Driven motor | three servo motor | |
| Electric | 380V, 50Hz, 3 phase | |
| Power | 11 KW | |
| Weight | 4200 Kg | |
| Overall dimension | 5400×1800×1700 mm | |
