R18 Smart Case Maker

Model NO.: R18

Quantity:

Product Description
Application Description

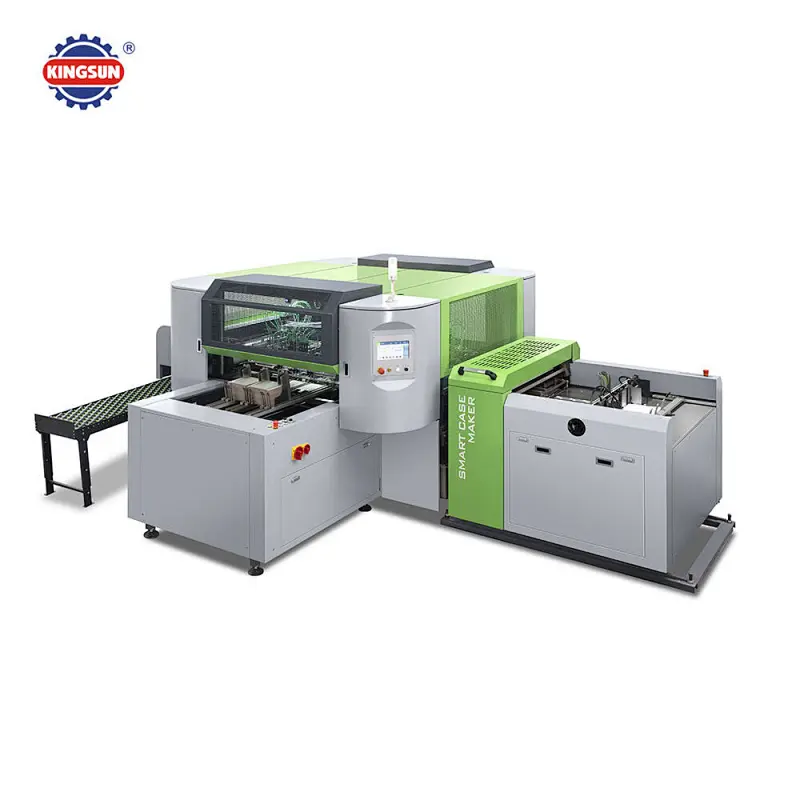

R18 Smart Case Maker

Function
R18 smart case maker(nickname is little cyclone)has the characteristics of intelligence, high speed, and easy operation. It is mainly suitable for packaging, books and magazines and other industries. It is widely used in the packaging of mobile phones, electronics, electrical appliances, cosmetics, food, clothing, footwear, tobacco and alcohol.

Technical parameter

Case size(opened size) L×W
Standard case	Min: 200 × 100mm Max: 800 × 450mm
Round corner case	Min: 200 × 130mm Max: 550 × 450mm
Soft ridge case	Min: 200 × 100mm Max: 680 × 360mm
Facial paper (including coated paper, special paper, cloth, leather, PVC, PP and other materials)
Width	130-480mm
Length	230-830mm
Thickness	120-300g/m2
Cardboard(including industrial cardboard, density board, wood board, plastic board and other materials)
Thickness	1-4mm (thickness less than 1mm needs to be customized)
Quantity of sheet	1-6 pieces
Machine speed	38 pcs/min (machine speed depends on size, material, etc.)
Working power	15.6kw (time-sharing work)
Heating power	2*4.5kw (two heating rods work at 4.5kw time-sharing, when the temperature reaches the set temperature, the heating rod will stop working)
Machine size (Length * Width * Height)	4600×3300×1800mm
