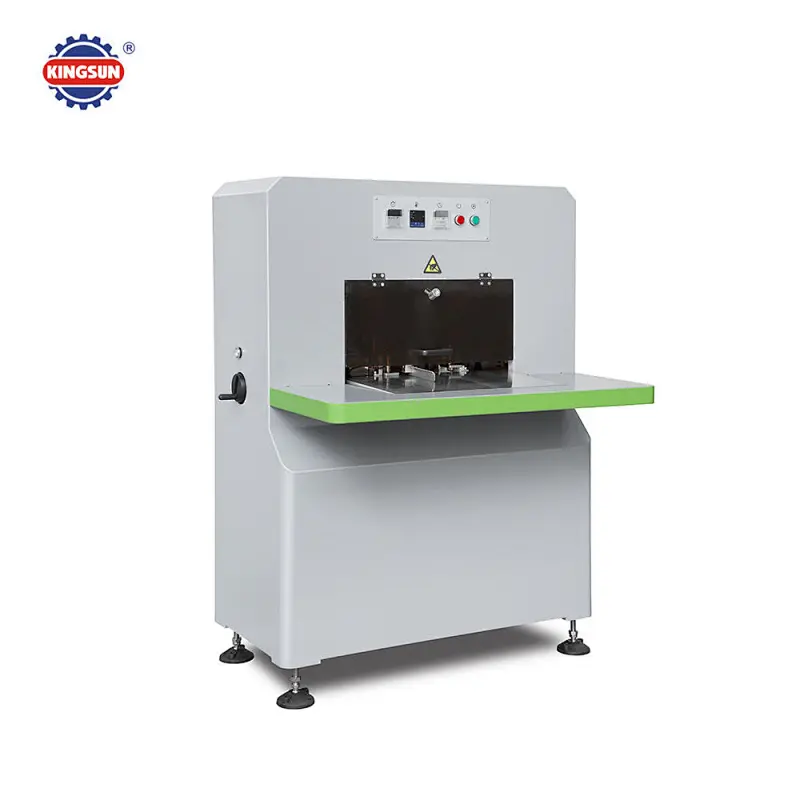

RC19 Round Corner Machine
RC19 Round Corner Machine

RC19 Round Corner Machine

Model NO.
RC19
Minimum order quantity:
1
Quantity:

RC19 Round Corner Machine

Introduction
The right angle case is pressed into a rounded case without changing the production process of the original case machine.
Different rounded case only need to replace the rounded mold, and the size adjustment is very convenient. It only takes 1 minute to change the size.

Technical parameter

Case width

Min: 125mm

Max: 415mm

Round corner size

R6, R8, R10, R12

Production speed

15-25 pcs/min

Voltage

220V/50HZ, 1 phase

Air supply

0.6Mpa

Machine dimension(L*W*H)

1000x780x1370mm

Note: Machine speed depends on material, size etc.
