QDF-H Series High Speed Dry Laminating Machine for Flexible Packaging
QDF-H Series High Speed Dry Laminating Machine for Flexible Packaging

QDF-H Series High Speed Dry Laminating Machine for Flexible Packaging

Model NO.
USD 30,000.00-55,000.00 / set
Minimum order quantity:
1 set
Supply Ability:
60 set / Year
Country of Origin:
  • Type:laminating machine
  • Place of Origin:CN;ZHE
  • Weight:8500KGS
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Dimension(L*W*H):9,600 x 1,000 x 3,000mm
  • Model Number:800,1000,1200,1300,1500
  • Brand Name:Kingsun
  • Packaging Type:BAGS
  • Packaging Type:Film
  • Packaging Type:FOIL
  • Packaging Type:Pouch
  • Packaging Type:Stand-up Pouch
  • Power:48kw
  • Condition:New
  • Packaging Material:Metal
  • Packaging Material:PAPER
  • Packaging Material:plastic
  • Driven Type:PNEUMATIC
  • Voltage:380v
  • Automatic Grade:Automatic
  • Application:BEVERAGE
  • Application:commodity
  • Application:Medical
  • Certification:ISO9001
  • Type:Special
  • Usage:Outer

This QDF-H series high speed dry laminating machine or dry laminator machine is used for laminating roll materials such as BOPP, PET, CPP, PE, aluminum foil and paper. It is a necessary machine for flexible packaging converting.

1) Imported tension control, anilox roller with blade for coating glue, with many
different anilox roller options for different application
2) Laminating pressure roller as well as coating roller with pneumatic cylinder control
3) Air cylinder push-up style oven and crossing film operation worktable
4) In the oven the transmission roller with active driven
5) The unwinding is adopted with photo-electricity EPC
6) Winding and rewinding are both double working mechanisms to make the material
operating with non-stop function
7) Laminated finished product with water cooling system

1) Laminating layer: 2 layers/time
2) Laminating width: 600 - 1,300mm
3) Diameter of unwinding: 500mm (or special)
4) Working speed: 5 - 120m/min
5) Oven temperature: 0 - 120°C
6) Max. power of machine: 48kW (according to specification)
7) External dimensions: 9,600 x 1,000 x 3,000mm
8) Weight: 8,500kg (according to specification)

Special specifications of dry laminating machines or dry laminators are also welcome!

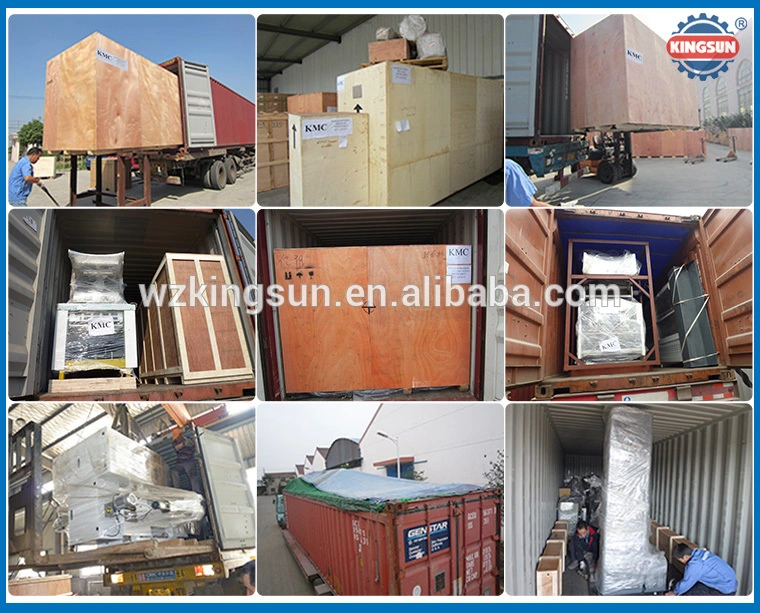

Packaging & Shipping

All our exported machines are strictly test by our professional egineers and well packed to load into containers.


Company Information

Wenzhou Kingsun Machinery Industrial Co.,ltd is China leading professional supplier and manufacturer of printing and packaging machines & materials. We provide a wide range of high quality equipment and service for printing and packaging industries, including post-press equipment such as flatbed automatic die cutter, hot foil stamping machine, folder gluer, paper guillotine, thermal laminator, flute laminator, slitter rewinder, paper sheeter, automatic case maker and label making machine such as flexo printing press, label die cutting machine, and flexible packaging equipment such as rotogravure printing machine, dry laminating machine or dry laminator machine, plastic bag making equipment, packing machine and other paper converting machinery etc. Our factories have 10-20 years of manufacturing experience, Kingsun company focus on R&D, quality control and after sale service, so we have the ability to provide high quality, reasonable priced products. Since so many years our products have been well accepted by customers from more than 65 countries.

Kingsun Company also boasts its 12 more years of experience, we deliver goods worldwide, our teams are all university graduated and constantly with professional training with energetic and positive attitude

Kingsun Company has 15 more manufacturing factory bases, each factory focus on only one or a few kind of specific printing and packaging machines production, as a result, we have the ability to meet different needs from different buyers, this way can take advantage of our machinery group and each of factory can play its own marketing or manufacturing strengths.

Our team has accumulated huge experience for this industries, we also have established a specialized after-sales service team and R&D team, so that we can create more value for our buyers.

Looking forward to work with you to create a more successful business together!
