Multi-functional Automatic Paper Slitter And Rewinder Machine

Multi-functional Automatic Paper Slitter And Rewinder Machine

Model NO.: QFJ-1100A

Quantity:

Product Description
Application Description

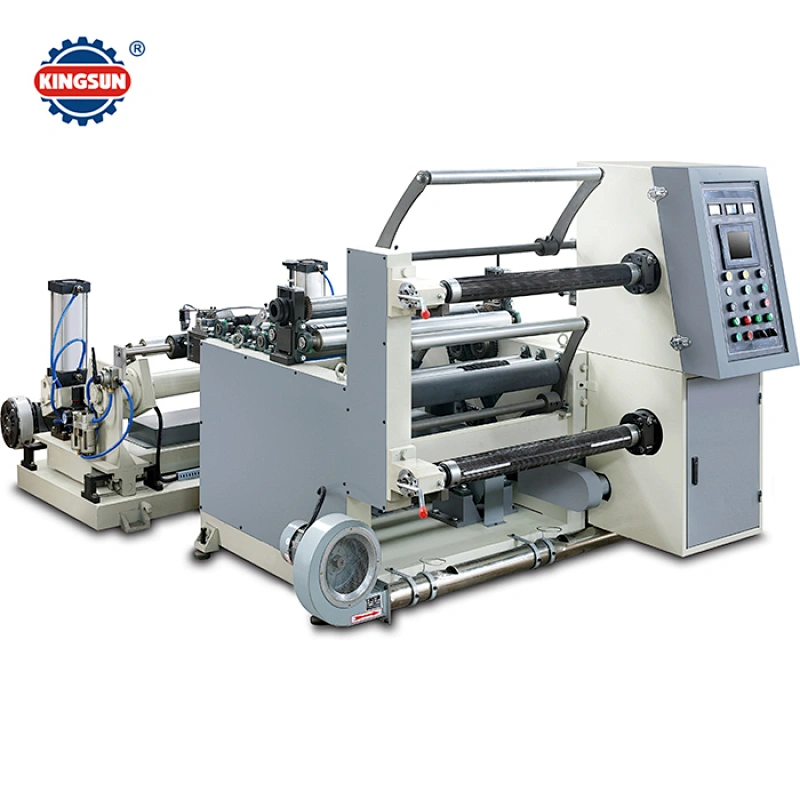

 QFJ-1100A Multi-functional Automatic Paper Slitter And Rewinder Machine

QFJ-A multi-function automatic slitter and rewinder machine adopts integral casting technology, which is strong and durable, stable and non-offset, and is controlled by frequency converter and computer touch screen, with high slitting precision. The machine adopts central winding mode, tension automatic control; Full computer touch screen control and frequency conversion speed regulation, maintain the smooth operation in acceleration; The machine can cut all kinds of polypropylene, polyethylene, plastic film, composite material, single layer aluminum foil, water-pine paper, candy paper, electric newspaper, computer paper, glass paper, cigarette paper, toilet paper, special materials, etc.

Main technical parameter

Model	1100A
Maximum cutting width	1100mm
Maximum roll diameter	800mm(3 inch)
Min slitting width	100mm
Unwinding method	Inflatable shaft(3 inch)
Maximum rewinding diameter	200mm
Inner diameter of finished paper core	2 inch/ 35mm
Rewinding shaft	Inflatable shaft(2 inch/35mm)
Maximum machine speed	200m/min
Maximum slitting speed	180m/min
Cutting accuracy	≤±0.2mm
Power	10kw
Machine dimension	2900x2200x1600mm
Machine weight	3T
