Model NO.
QFJ-1200F
Quantity:

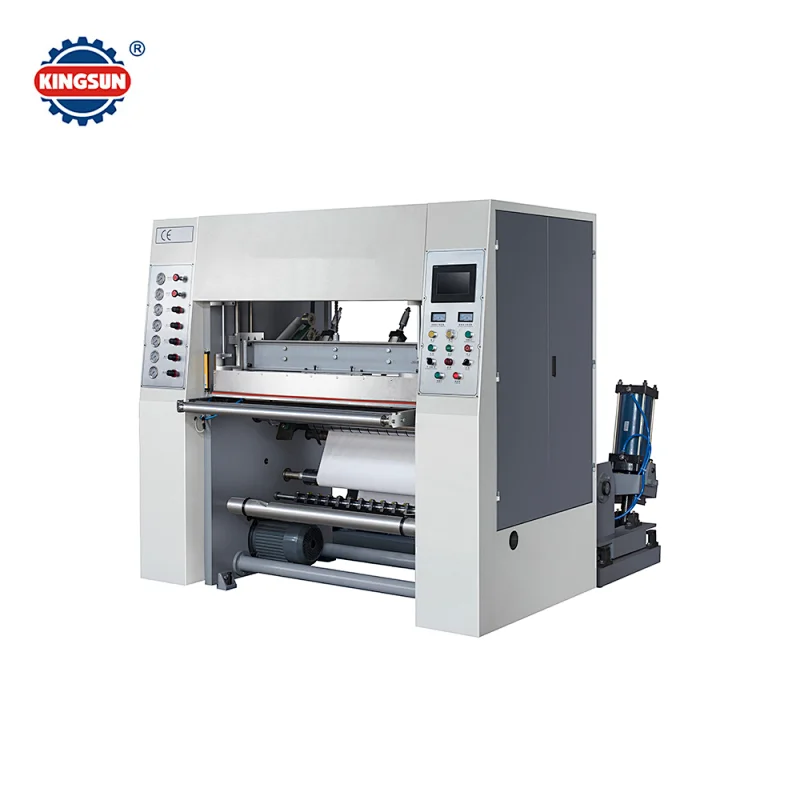

QFJ-1200F Thermal Paper Slitting And Rewinding Machine

QFJ-1200F thermal paper slitting and rewinding machine is a kind of cutting equipment, which mainly cuts various kinds of professional paper such as thermal sensitive paper, fax paper, cashier paper, carbon-free paper and less than 250g paper. The product operating system is simple and easy to operate. The paper cutting speed of the product is fast and stable, cutting precision is high, the defective rate is less than three parts per thousand, improve the production efficiency, is the current processing and production of small roll paper products the most ideal cutting equipment.

Main technical parameter

Model

1200F

Max unwinding width

1200mm

                Max unwinding diameter

1200mm/40”

 Max rewinding diameter

240mm/9”

Slitting width

57mm 79mm (Other size could be customized)

Paper thickness range

Less than 250gsm

Max machine speed

250m/min

Max slitting speed

220m/min

Total power

4kw

Inner diameter of finished paper core

Φ12.7mm,Φ25.4mm

Slitting accuracy

≤±0.15mm (It depends on the raw material roll)

Overall dimension(L×W×H)

                    Slitting part: 2200×1250×1800mm

                   Feeding part: 2100×1500×1200mm

Weight

3.5T
