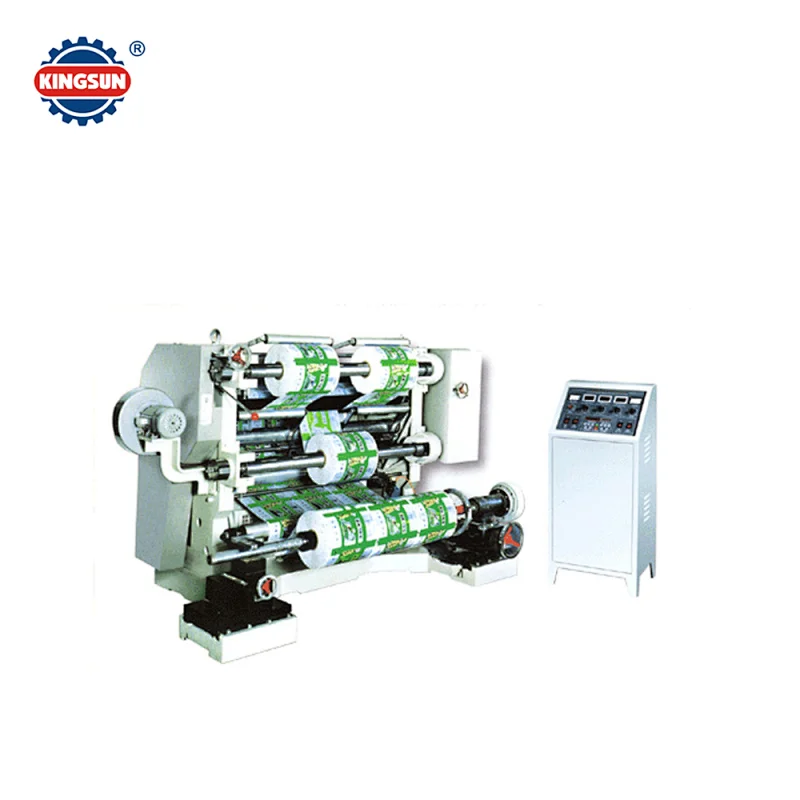

QFJ-600 Plastic Film Slitting Machine
This kind of machines are widely used in many areas for slitting and rewinding plastic film, aluminum foil, paper and other special materials.
Features
1. This machine is a vertical type; it is efficient and can save space.
2. Independent master control system makes its more flexible and easy to operate.
3. The unwinding unit adopts automatic EPC controller, the photocell can trace transparent materials and color line.
4. The unwinding unit adopts magnetic powder brake to control the tension.
5. The rewinding unit adopts magnetic powder clutch to control the tension.
6. Waste film blowing pipe or rolling device can be chosen by buyer.
7. Automatic meter counter.
8. Air shaft for rewinding roller.
Main technical parameter
Maximum unwinding diameter | 600mm |
Maximum rewinding diameter | 450mm |
Slitting width | 30-600mm |
Slitting speed | 5-160m/min |
Slitting accuracy | <0.5mm |
Machine power | 2.2kw, 3kw |
