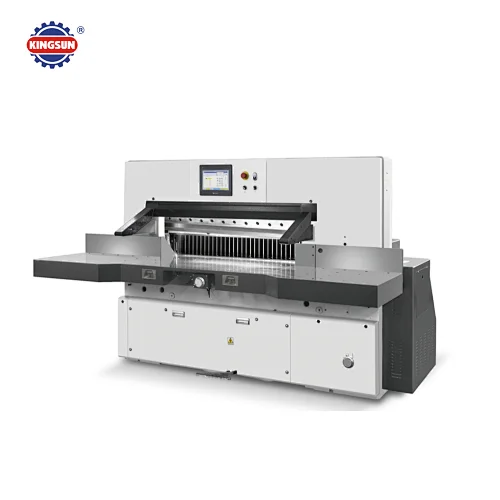

QZYK-C115F1 CIP4 Hot Sale Intelligent Paper Cutting Cutter Machine
QZYK-C115F1 CIP4 Hot Sale Intelligent Paper Cutting Cutter Machine

QZYK-C115F1 CIP4 Hot Sale Intelligent Paper Cutting Cutter Machine

Model NO.
​​​​​QZYK-C115F
Quantity:

​​​​​QZYK-C115F1 CIP4 Hot Sale Intelligent Paper Cutting Cutter Machine

Product Description:

CIP4 is the computerization and automation of the printing industry. The code is to develop a common file exchange and data sharing format. Japan alternative digital servo control technology; 22-inch colorful touching LCD; double hydraulic system. The data resolution rate is 0.01mm. It has self-diagnostic function of troubles and displays the operating pattern, and has 1000 program units, over 100000 different cutting positions, dynamic display of cutting and running, dynamic tracking, max feeding speed 8-25m/min.Powerful computer operating system with more functions and it can store and memorize things. The storage time can be up to 300,000 hours with self-maintenance of the operating system. Hydraulic components are adopted from Italy, electrical components from France, Germany, Japan, Korea, Taiwan ball lead screw,linear double guide rails, PLC control system are adopted to monitor all mechanical implementation, Its key parts adopt imported bearing of low maintenance, automatic fueling, automatic maintenance function.

Technical Parameter:

Model / SpecificationsQZYK-C115F1
Cutting width(cm)115
Max. cutting height without assistance pressing plate(cm)16
Max. cutting depth(cm)115
Min. cutting depth without assistance pressing plate(cm)2.5
Extended length of working table(cm)73
Height of working table(cm)88-92
Machine width including side working table(cm)266
Total length of working table(cm)226
Cutting speed(r/min)45
Max. paper pressure(n)40000
Power of main motor(kw)4
Motor for paper feeding(kw)0.75
Air pump(kw)0.75
Machine weight(kg)4000
Overall dimension (Length x width x height)(cm)255x160x215
