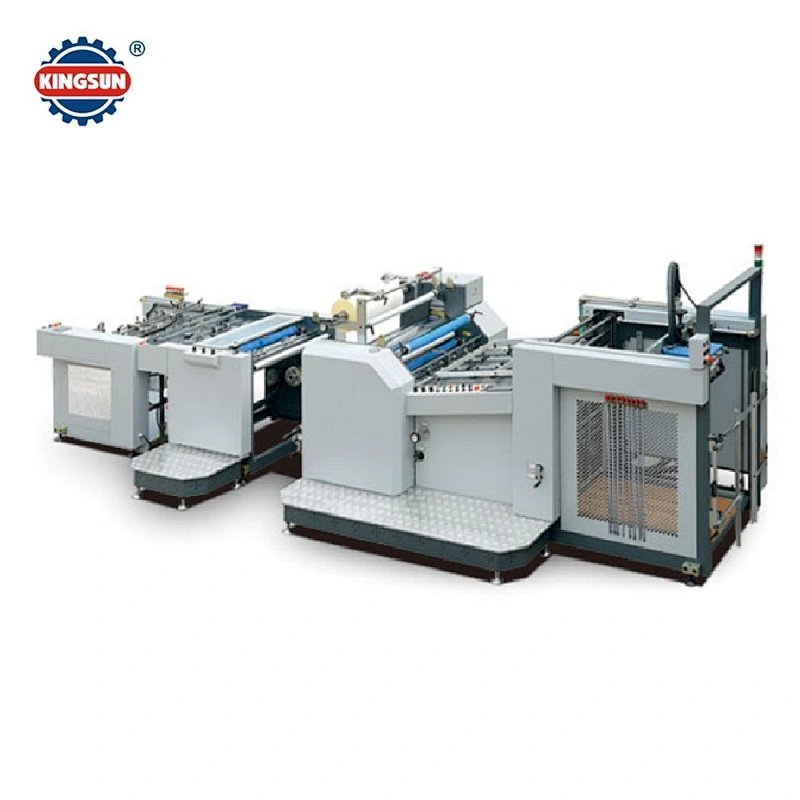

SAFM-800B Fully Automatic Double Side Thermal Film Laminating Machine
Features:
1. Suitable for BOPP thermal film.
2. Composed of feeding system, heating,laminating system and cutting system and paper collecting and rewinding system.
3. Automatic paper feeder with oil-free vacuum pump to ensure the automatic paper feeding.
4. Photoelectric controlled protector makes an automatic stop of the machine when it detects paper shortage and paper breaking.

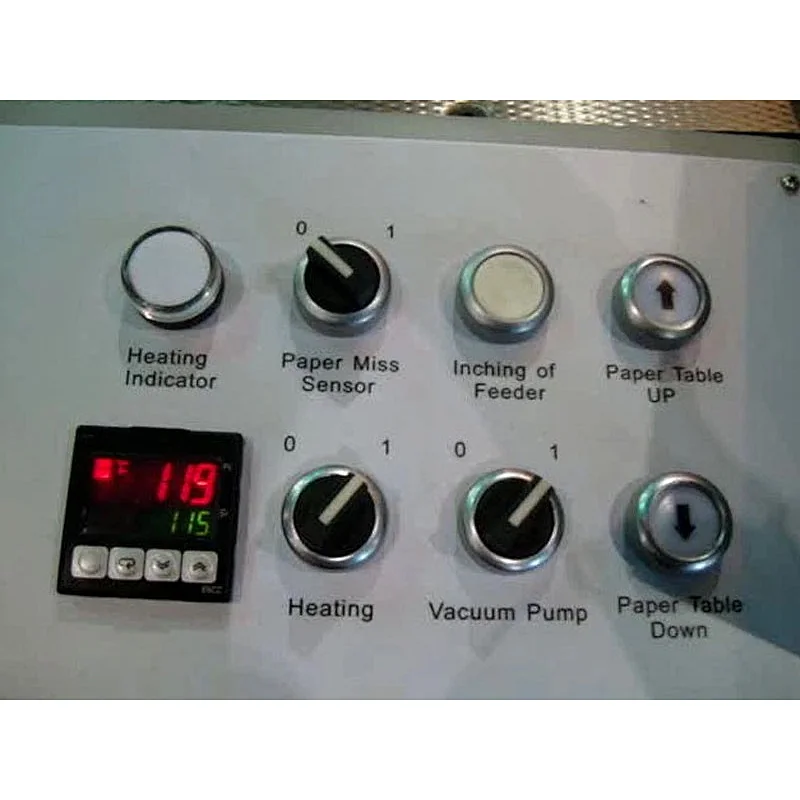

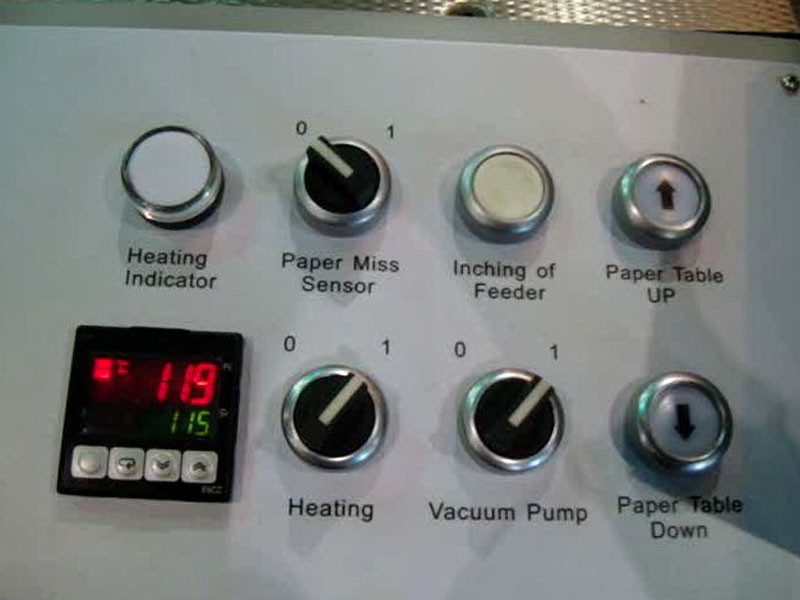

5. The electric and pneumatic device are controlled by PLC.
6. Fast electric-magnetic heating system that ensures an excellent constant temperature.

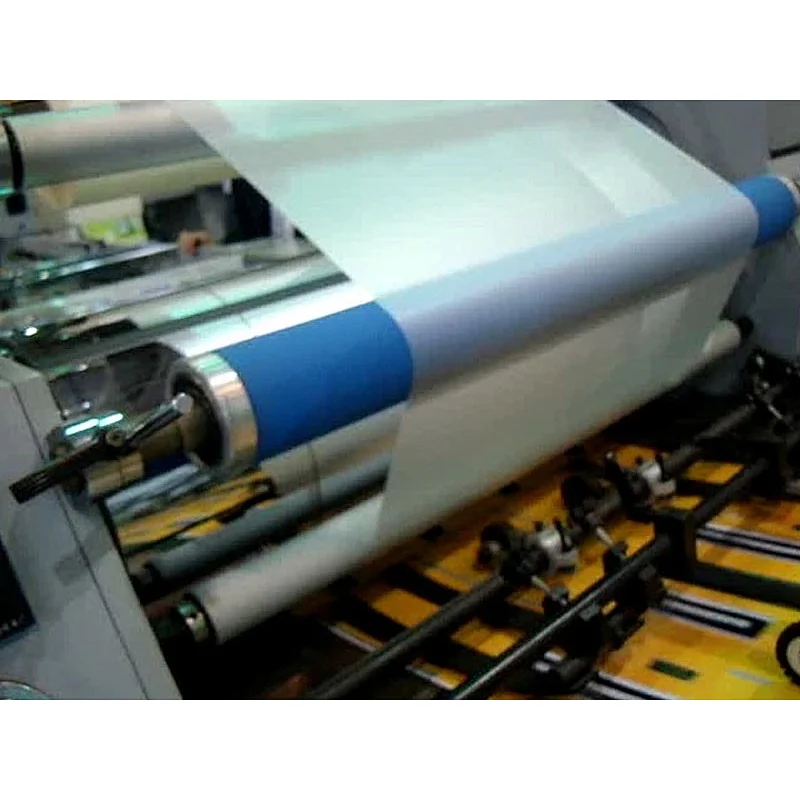

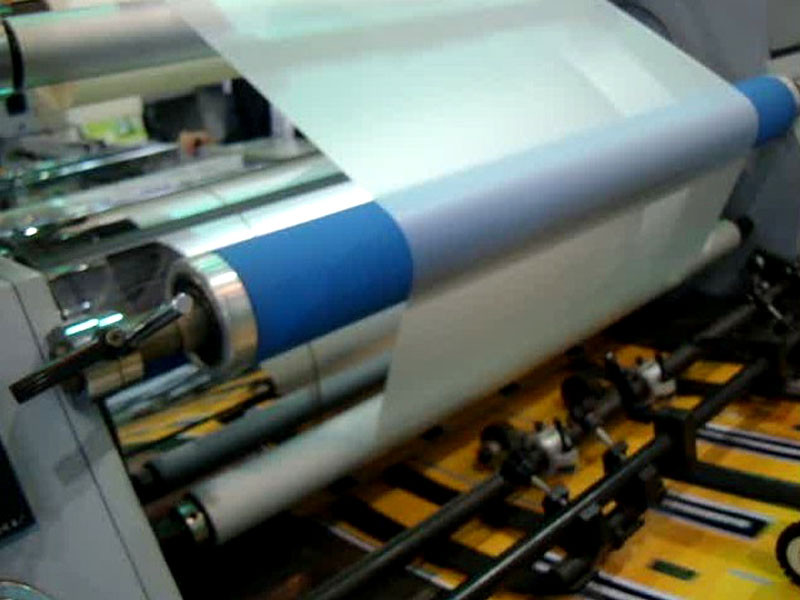

7. Air shaft equipped with braking device that is easy to release the film at a proper tension and speed, and convenient for film loading and unloading, also ensures a accurate film location.
8. Film cutter is used to wide cut the film to fit the size of paper.
9. Film perforating wheel is used to perforate the film edge to make the automatic cutting of laminated paper to be much smoother.
10. Anti-curved device ensures a smooth laminated surface.
Technicalspecifications:
Model | SAFM-800B |
Max. paper | 780 x 1040mm |
Min. paper | 350 x 300mm |
Laminating speed | 0-65m/min |
Paper thickness | 105-500g/sqm |
Power | 31kw |
Overall dimensions | 6000X2500X1900mm |
Machine weight | 3300kgs |
