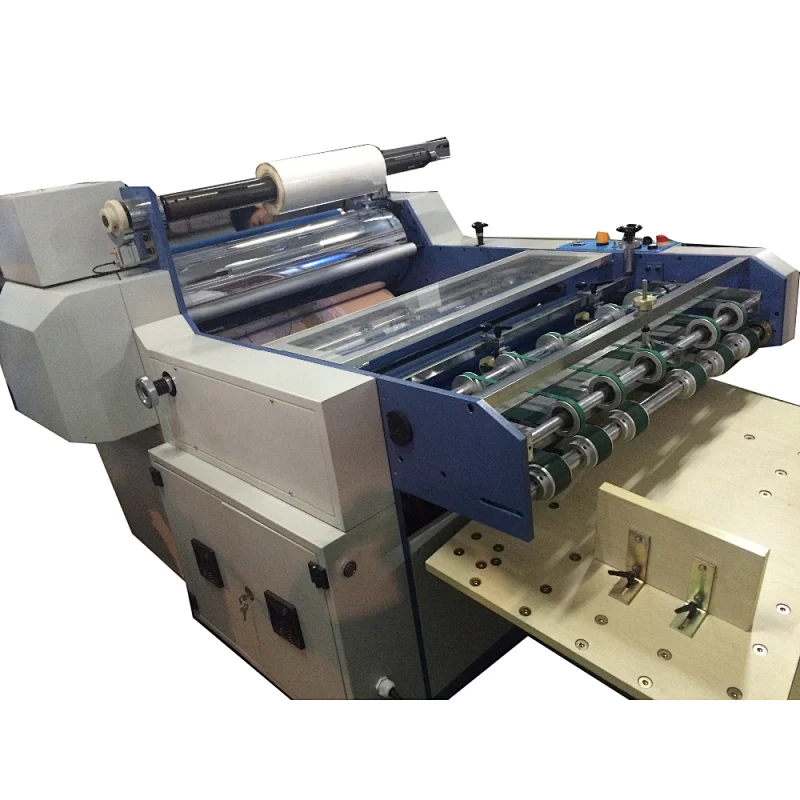

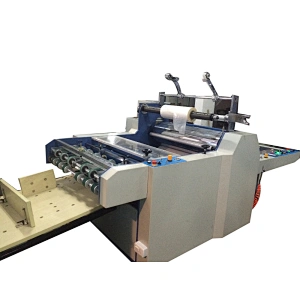

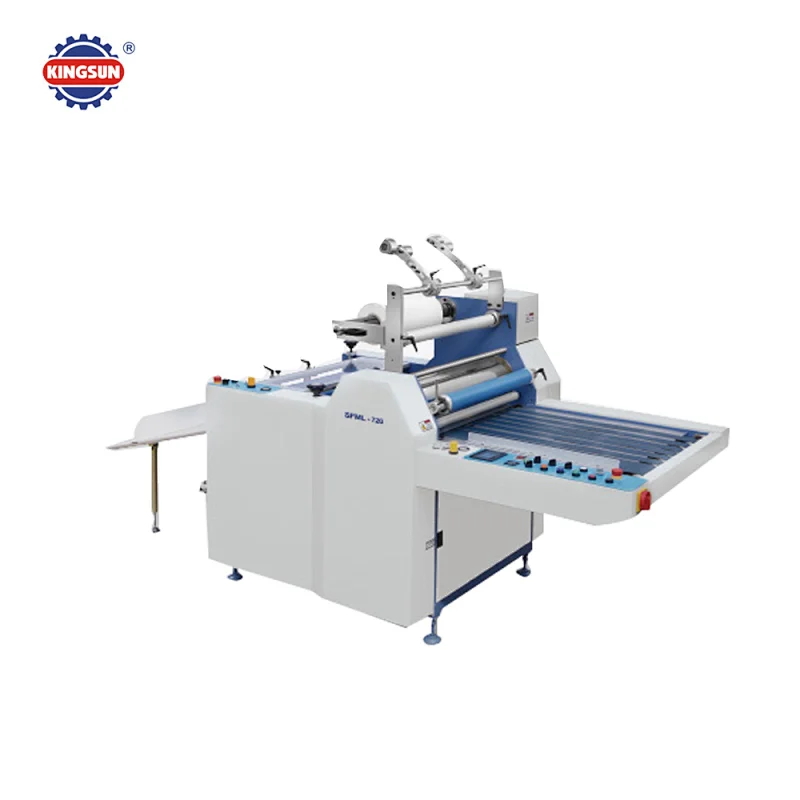

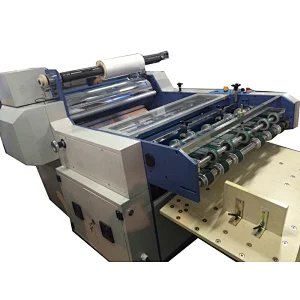

SFML-720 Semi-automatic Thermal Film Laminating Machine
Features:
1. Smooth operation with frequency conversion.

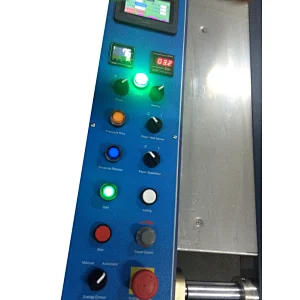

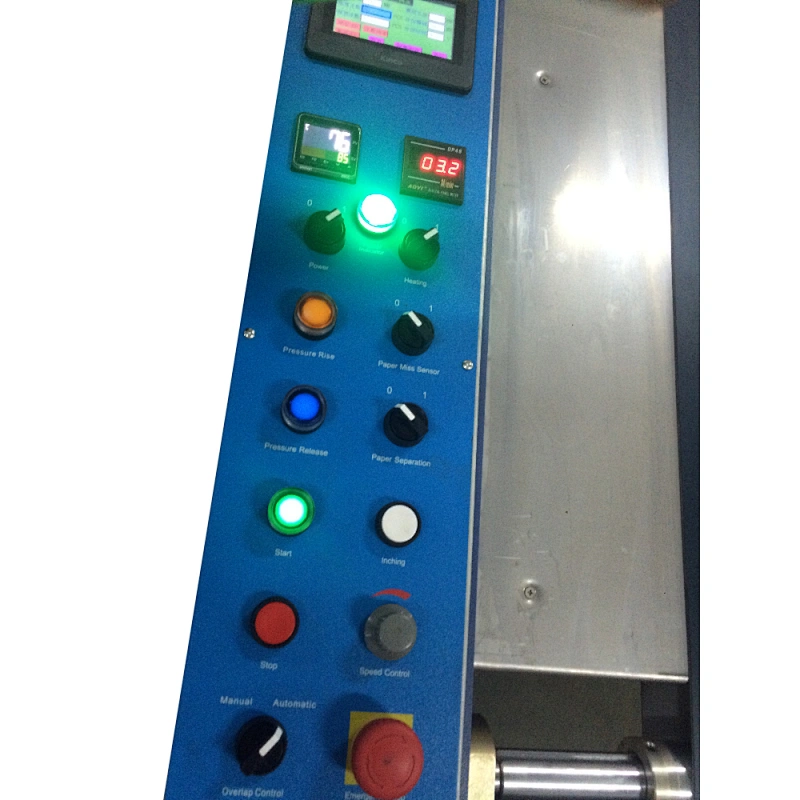

2. The PLC system ensures automatic paper separation,Self-protected fault alert.
3. Built-in chrome oil, higher machine precision Heating system and temperature control.

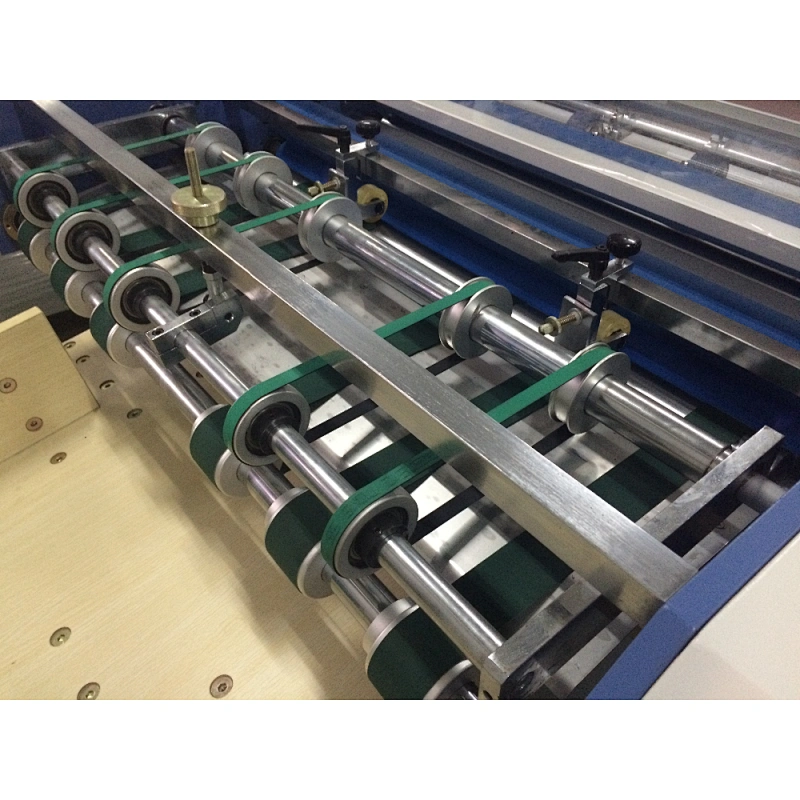

4. Ventilation shafts provide accuracy during loading and unloading,Position the laminated film roll.
Technical Parameter
Model | SFML-720 |
Max Paper Size | 680mm |
Paper Thickness | 100-500g/m2 |
Laminating Speed | 0-25m/min |
Gross Power | 13 kw |
Total Weight | 1000 kg |
Overall Dimensions | 3100*1450*1600mm |
