shrink packing machine (sleeve sealing machine)
shrink packing machine (sleeve sealing machine)

shrink packing machine (sleeve sealing machine)

Model NO.
TF6540+BS5540
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
50 set / Month
Country of Origin:
Shanghai or Ningbo
Quantity:

shrink packing machine (sleeve sealing machine)

Product Feature:

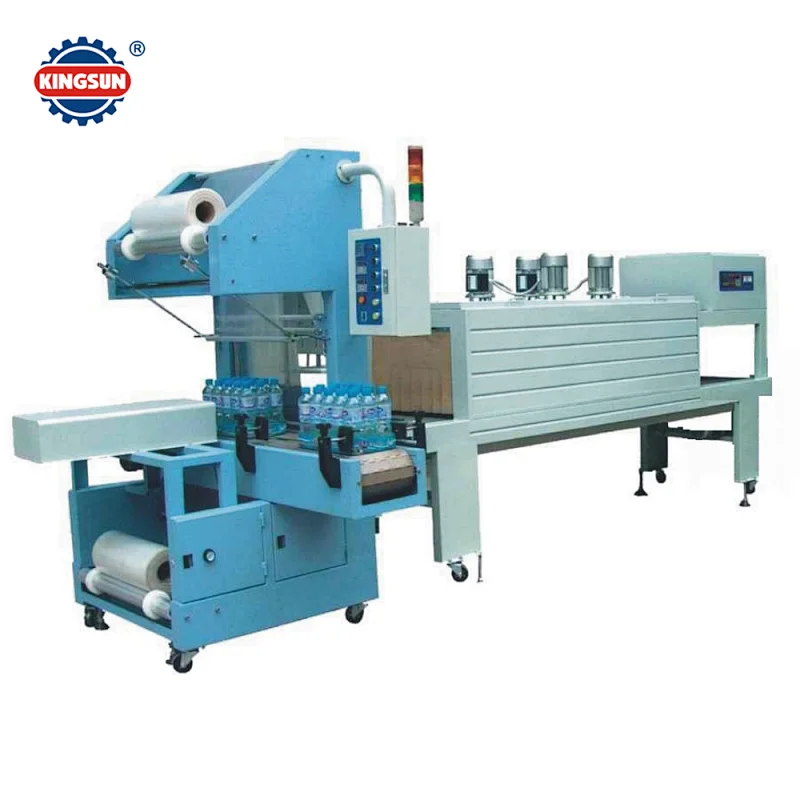

shrink packing machine (sleeve sealing machine) is a fully automatic production line integrated with automatic convey , feeding, sealing, cutting, and shrinking, especially suitable for large, unitary counted case(box or can)bottom tray packaging such as can, bottle etc When encased with PE or PVC shrink film, and complete its shrink packaging. Conveyor is alternative with roller or mesh. Also we can design requirement of the customer. After finished the packaging, the products appeared neatness, compact and good for long transport.

Specification

Model

TF6540

Voltage

AC 220V/50HZ or 110V/50HZ

Power

1.5 Kw

Max. Packing Dimension

530×330×380 (mm)

Packing Speed

12Tray/min

Max. Sealing Length

650mm

Working Air Pressure

6~8kgf/cm2

Dimension (L×W×H)

1550×1400×1920 (mm)

Net Weight

400 Kgs

Model

BS5440L

Voltage

380V/50HZ or 220V/60HZ (3 Phase)

Loading

80Kgs

Conveying Speed

0~10m/min

Tunnel Size(L×W×H)

1950×550×400(mm)

Dimension(L×W×H)

3100×850×1500(mm)

Net Weight(kg)

400 Kgs
