Model NO.
KP403
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
100 set / Day
Country of Origin:
ningbo/shanghai
Quantity:
Product Description

Application of plastic film shrink wrapping machine:

It is mainly used to shrink plastic films on the lid of bottle

It is used to shrink bottle labels.

Descriptions of plastic film shrink wrapping machine:

This series PVC Cap Shrinking machines are mainly used to shrink label of product in bottle shape, can shape or barrel shape with glass bottle, plastic bottle or paper cup. The label is shrinking on the top or wrapping the whole bottle neck is able to be shrank with different type model. It is widely applied in the industry of food, medicine, cosmetic and pesticide, etc.

Intelligent shrink temperature control.

Model KP403Z: Steam heating (Steam heating, the product is packaged, more smooth, not wrinkled)
Model KP403: Ordinary electric heating

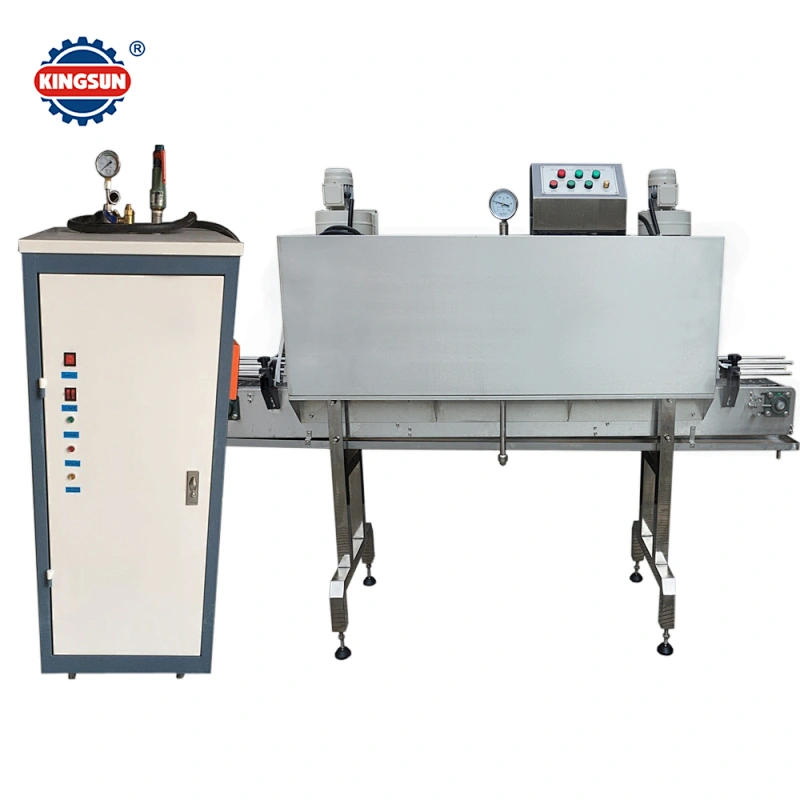

Steam heating machine


Our machines can be customized according to the size of the bottle.

Specification:

Model

KP403

KP403Z

Power Supply

AC380V 50/60hz

AC220v/380V 50/60hz

Heater Power

8kw

24kw

Conveyor Speed

0-10m/min

0-10m/min

Tunnel Size

1200X140X400mm

1200X140X400mm

Shrink Product Size

Φ120mm H400mm

Φ120mm H400mm

Conveyor Loading

8kg

10kg

Tunnel Temperature

0-250

0-250

Machine Size

2200×520×1600mm

2200×520×1600mm

Machine Weight

130kg

160kg

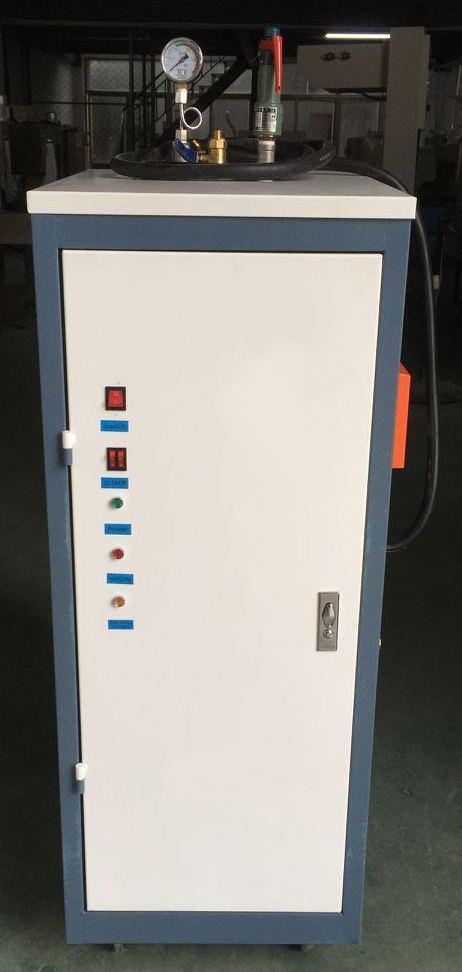

Name

Steam heating machine

Voltage

380V 50/60HZ

Power

24KW

Steam Vapour Volume

32KG/H

Steam Pressure

0.45MPA

Steam Temperature

155.3 DEGREE

Effective Water Volume

27L

Weight

84KGS
