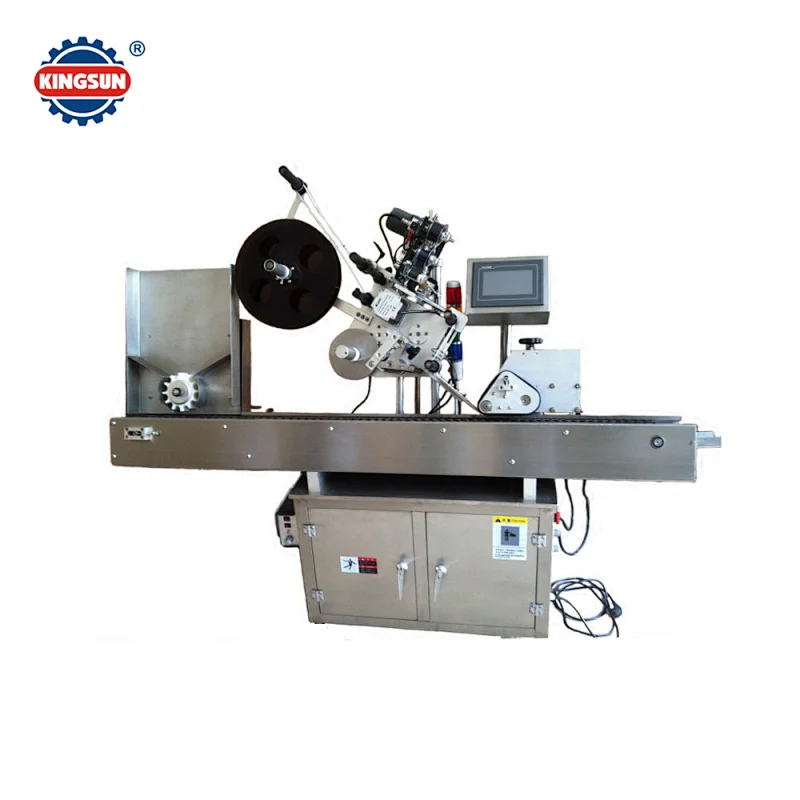

MT-300 automatic labeling machine
Sticker labeling machine is widely used in the industries of food, medicine, stationery and electronic etc, and it’s suitable for smaller products that is hard to stand, such as small bottles, ampoule bottles, batteries, ham, sausages, cuvette, and pens etc.
Product Feature:
High speed, adopt roller transmission sideling conveyor, bottles be putted on the right place automatically, labeling steadily, speed can catch to 400pcs/min. Saving large labor and material.

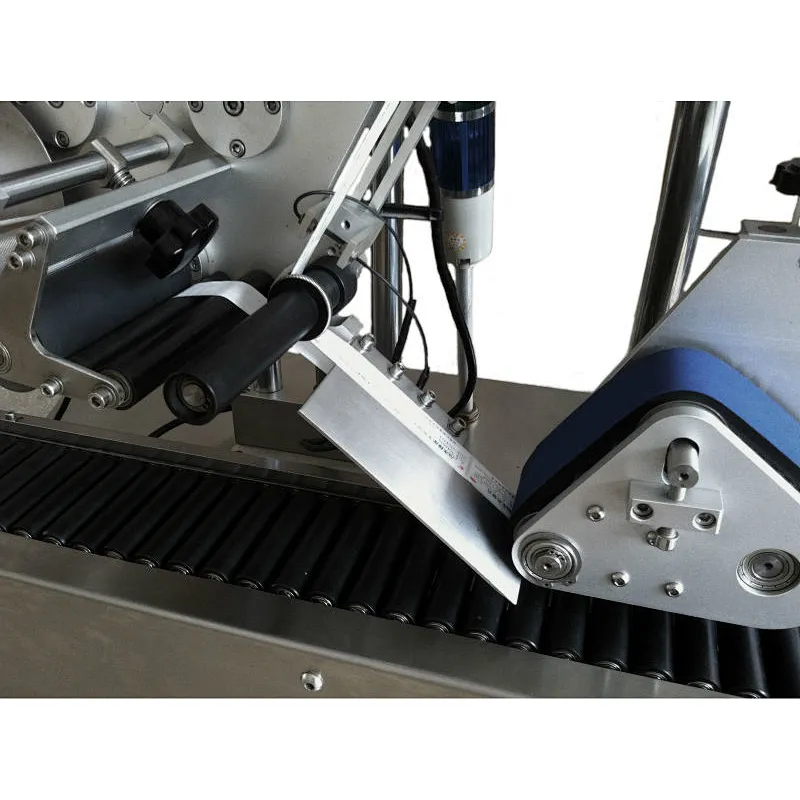

High quality labeling, correct label belt be in right position, label cover label accurate, rolling and nobbing press label result in an even, no scrape, no air bubble on ever product. Improve packing quality.
High stability,Panasonic PLC + KUNLUN TONGTAI Screen + Panasonic needle electronic eye + Leuze label testing electronic eye as the high grade electronic control, support equipment working at 7*24hours;
Intelligent control,Automatic photoelectric tracing, no label for when product didn’t come, automatic correct, automatic testing, can avoid leaking and wasting.
Specification
Model | MT-300 |
Drive | step motor driven |
Direction | right/left |
Labeling Speed | 0-220pcs/minute |
Label size | width:10-90mm length:20-300mm |
Precision | +1mm |
Label roll | MaxΦ300mm |
Label core | StanderΦ75mm |
Dimension | 1600×600×1400mm |
Weight | 150kg |
Power | AC 110V/220V 50/60HZ 2.5KW |
