Model NO.
SW-820
Quantity:

  • Condition:New
  • Automatic Grade:Automatic
  • Place of Origin:CN;ZHE
  • Warranty:1 YEAR
  • Brand Name:KINGSUN
  • Voltage:380V
  • Dimension(L*W*H):6200*2000*1900 mm
  • Weight:4000kg
  • Certification:CE ISO9001
  • Type:Laminating Machine
  • Key Selling Points:Easy to operate
  • Color:Gray

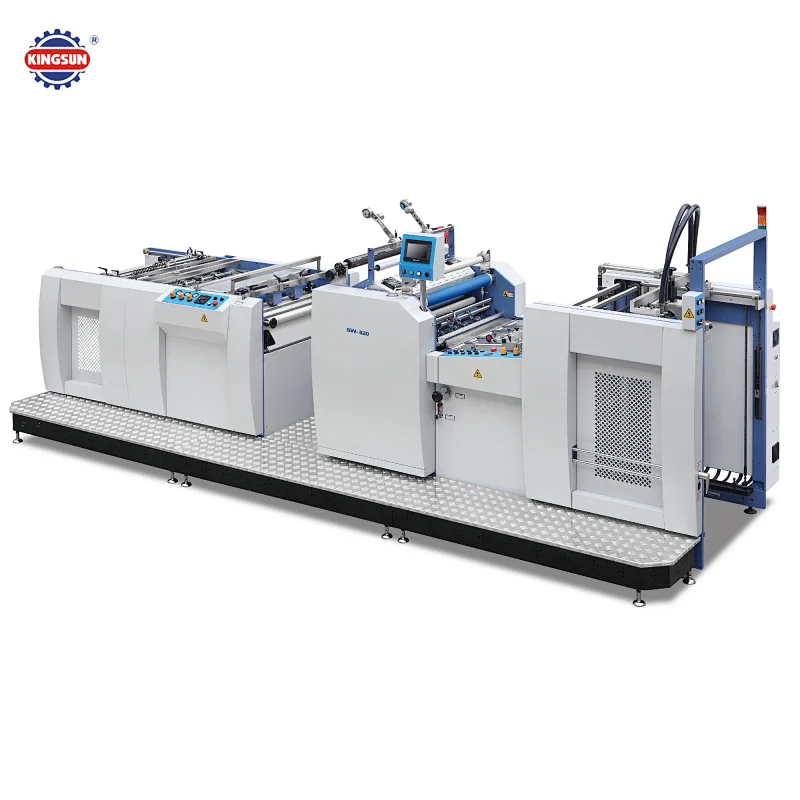

SW-820 Model Automatic BOPP Thermal Film Lamination Machine

Introduction:

This model is one of high-end thermal laminating machine, uses the world latest advanced technology which fit for high level post printing finishing. Machine working reliable and convenient, it is best choice for thermal film lamination.

Main features:

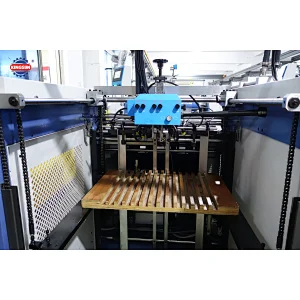

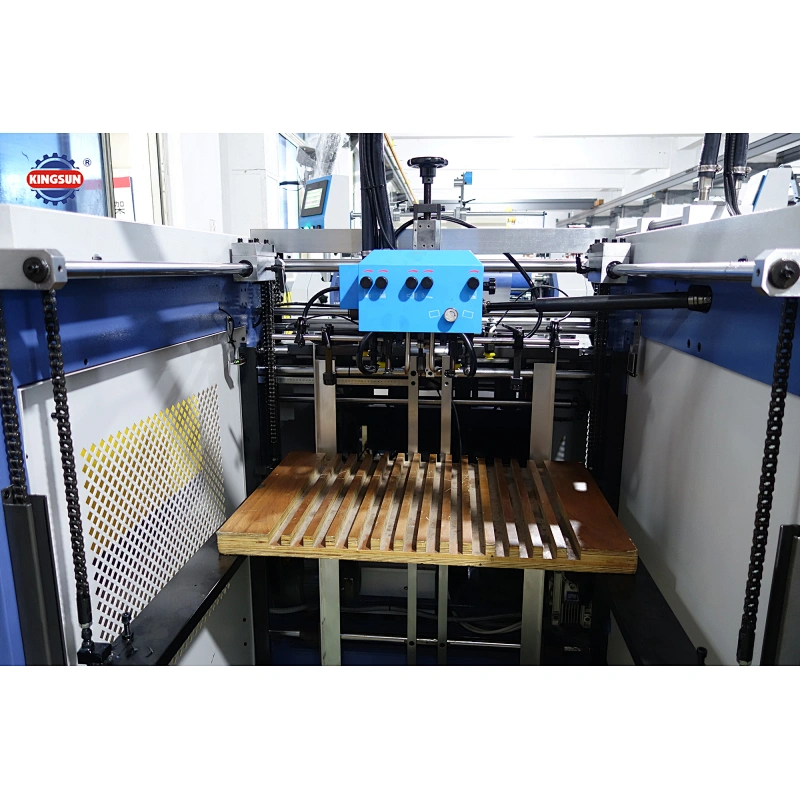

1.Auto-feeder:This machine is equipped with a paper pre-stacker, servo controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine.

2.Electromagnetic heater: equipped with advanced electromagnetic heater. Fast pre-heating., energy saving, environmental protection.

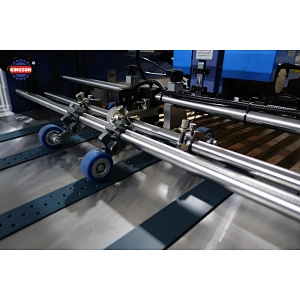

3.Side lay regulator: the servo controller and side lay mechanism guarantees precise paper alignment at all times.

4.Human-computer interface: a user-friendly interface system with a color touch-screen simplifies the operation process. The operator can easily and automatically control paper sizes, overlapping and machine speeds.

5.Separation system: pneumatic separation system to separate the paper stably and quickly.

6.Anti-curvature device: the machine is equipped with and anti-curl device, which ensures that paper remains flat and smooth during the lamination process.

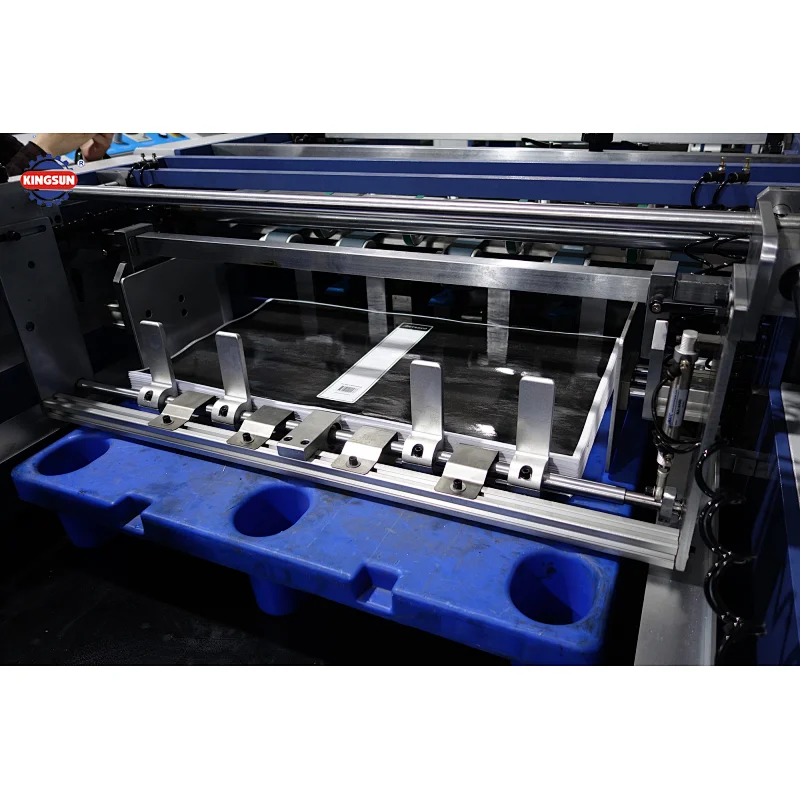

7.Automatic stacker: automatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets.

Technical Parameters:

Model

SW-820

Max paper width

820×1050mm

Min paper size :

300×300mm

Paper thickness

100-500g/m2

Max Laminating Speed

0-65m/min

Laminating Temperature

80-110℃

Gross Power

21 kw

Machine weight

4000kg

Out dimensions

6200×2000×1900 mm
