Model NO.
SWAFM- 1050
Quantity:

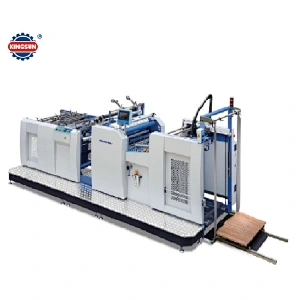

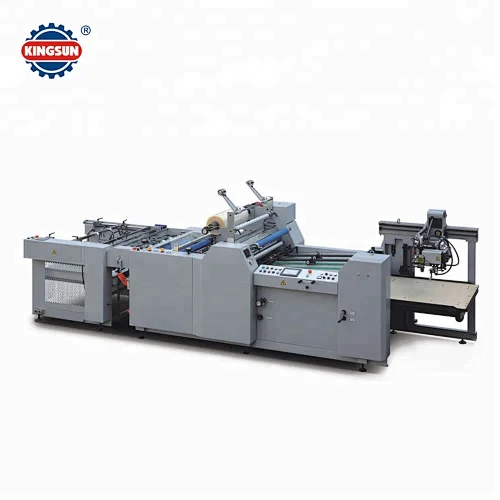

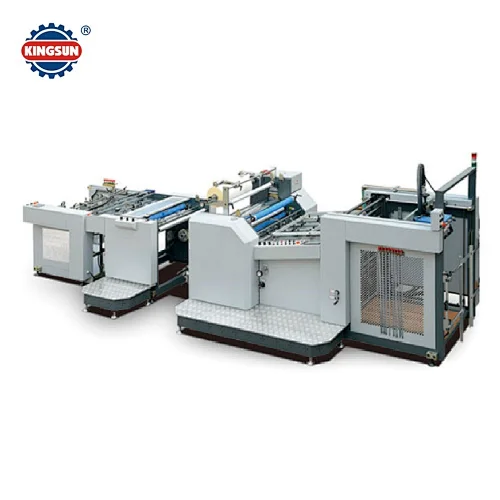

SWAFM-1050 Model Automatic BOPP Thermal Film Laminator Machine

This model is one of most advanced type of BOPP thermal film laminator machine, adpots the latest world technology, with our factory 30 years manufacturing experience, it is high precision and reliable working machine, so it is most ideal film finishing machine for printing house or packaging converting company.

Features:

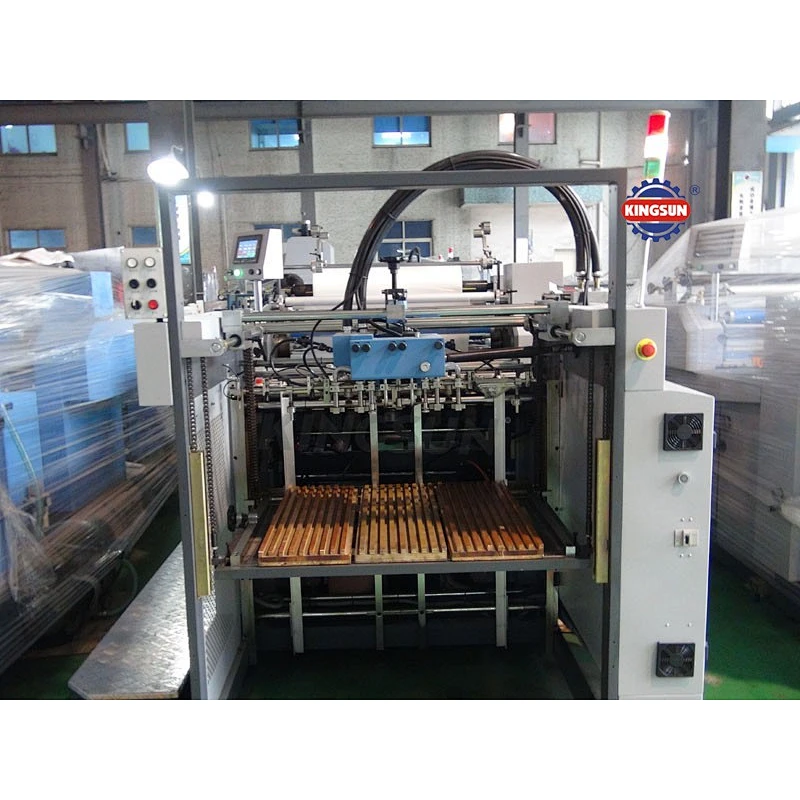

1.Automatic paper feeder with oil-free vacuum pump to ensure the automatic paper feeding.

2.Man-machine interface system: color touch screen, easy for operation; it realizes automatic operation after directly data input for paper size, overlap length and working speed, working status can be tracked via the screen.

3.Automatic paper feeding system equipped with photocell detector and machine automatic stops to self- protection while short of paper, dual paper or paper breaks.

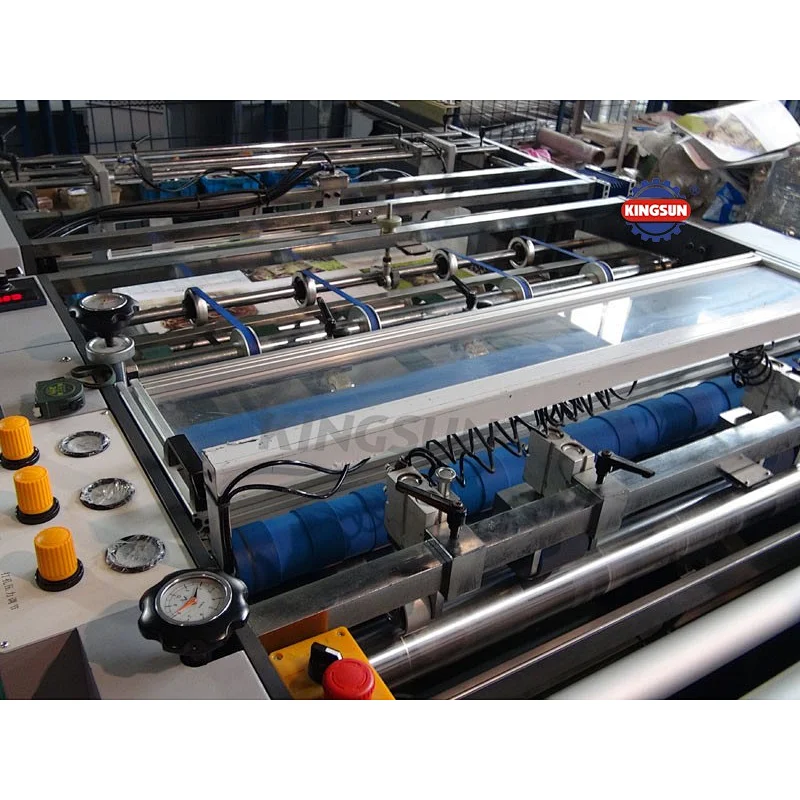

4.Conveying table with air aspirator and front guide to ensure paper conveying and overlap to be stable and neat, and improve the lamination precision as well.

5.Electro-magnetic heating system ensures lamination temperature constantly and makes it precise while for the lamination.

6.Automatic hydraulic system ensures the stable pressure and the lamination quality.

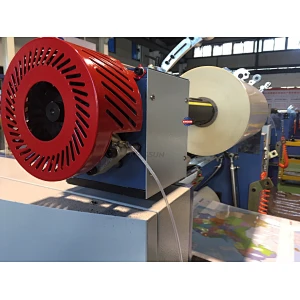

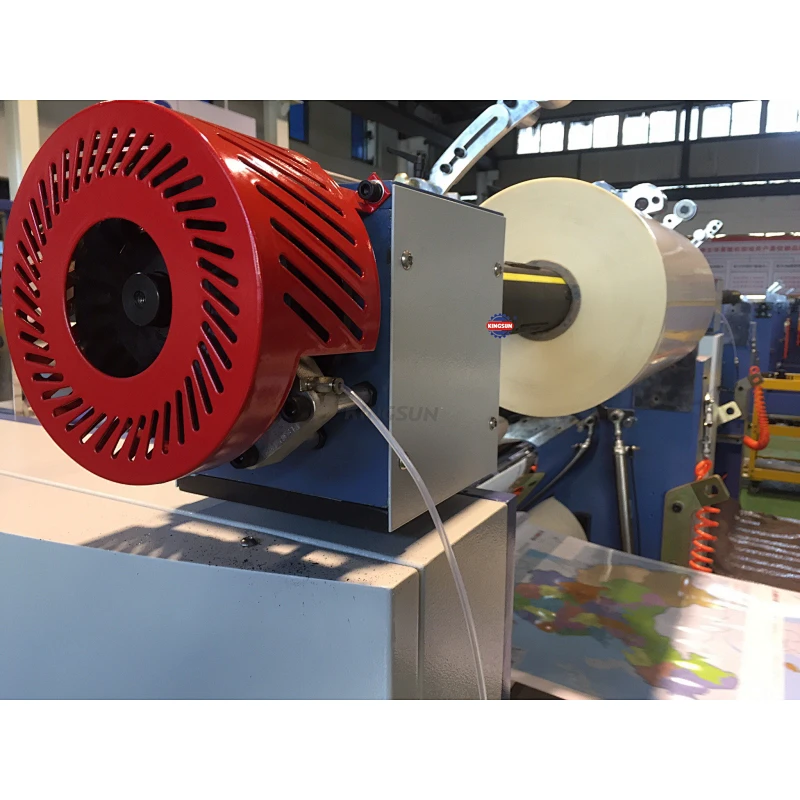

7.Air shaft convenient for film loading & unloading, and accurate for film release.

8.Film shaft equipped with braking device to control the tension and speed of the film.

9.The cutting unit and paper receiving unit can be easily moved away from the laminating unit, which makes the maintenance more convenient.

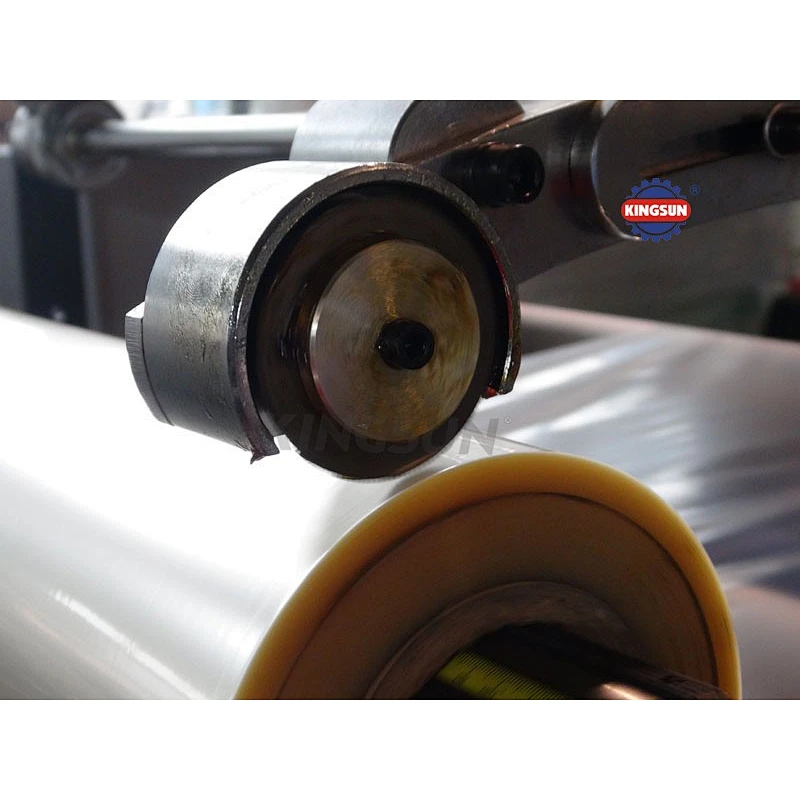

10.Pneumatic cutting system realizes automatic paper cutting after paper size data input. With anti-vurve roller.

11.The paper delivery stacker equipped for the sheet laminated paper

Technical specifications:

Model

SWAFM- 1050

Max paper size

1040 x 820mm

Min paper size

350 x 400mm

Working speed

80m/min

Total power

26kw

Overall dimensions

4900 x 2260 x 1900mm

Weight

4000kg
