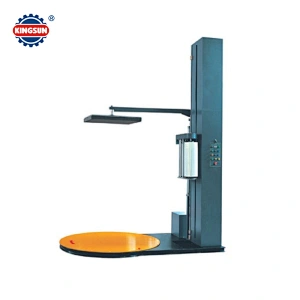

T1650H Pallet Stretch Film Wrapper machine, pallet wrapping machine with CE
T1650H Pallet Stretch Film Wrapper machine, pallet wrapping machine with CE
T1650H Pallet Stretch Film Wrapper machine, pallet wrapping machine with CE

T1650H Pallet Stretch Film Wrapper machine, pallet wrapping machine with CE

Model NO.
T1650H
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
15 set / Month
Country of Origin:
SHANGHAI
Quantity:

T1650H Pallet Stretch Film Wrapper machine, pallet wrapping machine with CE

Product Feature

T1650H Pallet Stretch Film Wrapper machine, pallet wrapping machine with CE are used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported to protect them from tip, spill or from being damaged. Additionally, wrapped loads can easily be separated and identified. Stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances papermaking foodstuff and drink etc.

Controls

OMRON PLC

Photo-eye pallet height sensor

0-9 separate top, bottom and up-down wrap count selectors

Photo-eye sensing delay

Reinforce wrap allow more wrap on same location

Film Tension Control adjustment on the panel

3-12 RPM variable carriage up-down speed

Cycle pause capability

Separate start, reset and emergncy stop buttons

Manual carriage up-down switch

Turntable jog button

Turntable

650mm Diameter Structural Steel Plate

85mm low profile turntable

Soft start, soft stop

Heavy duty chain drive

Film carriage

Powered pre-stretch system up to 200% to min film consumption (Pre-stretch ratio can be Specially made according your requirements.)

Carriage door opens for effortless roll change and thread film

Film delivery variable speed by separate DC Drive Motor

Film dancer-bar with variable speed output

Heavy duty double-chain carriage lift, calm and safety

Other

Hinged mast for easy handling

Rear Forklift transportable

Option

Ramp

Pneumatic top plate

Pneumatic film grabs and cut off system

Packing height: 2800mm

Turntable diameter: 1800mm, 2000mm

Turntable capacity: 2500kgs, 3000kgs

Machine color

Technical Specification

Model

T1650F

Wrapping Size(L×W)(mm)

(500-1200) ×(500-1200)

Wrapping Height(mm)

L Type:(800-1800) / H Type:(800-2400)

Wrapping Efficiency(loads/hour)

20-40

Turntable Speed(rpm/min)

3 - 12

Turntable Diameter(mm)

Φ: 1650 / H: 85

Turntable Loading(max)(kg)

2000

Electrical Requirement

Single Phase 220V / 50HZ / 20A

Power(kw)

Turntable:0.75; Film Carriage:0.4; Steel Tower:0.37

Film Carriage

Pre-Stretch Type

Machine Weight(kg)

900

Machine Dimension(mm)

L Type:2545×1650×2280 / H Type: 3500×1800×980
