T400CS Horizontal wrapping machine machine
T400CS Horizontal wrapping machine machine
T400CS Horizontal wrapping machine machine
T400CS Horizontal wrapping machine machine
T400CS Horizontal wrapping machine machine
T400CS Horizontal wrapping machine machine
T400CS Horizontal wrapping machine machine

T400CS Horizontal wrapping machine machine

Price:
USD 9000.00-12000.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
10 set / Month
Country of Origin:
ningbo
Quantity:
  • Type:Wrapping Machine
  • Condition:New
  • Application:commodity
  • Application:Food
  • Packaging Type:Film
  • Packaging Material:plastic
  • Packaging Material:wood
  • Automatic Grade:Automatic
  • Driven Type:Electric
  • Place of Origin:CN;ZHE
  • After-sales Service Provided:No overseas service provided
  • Voltage:220V
  • Power:0.75kw
  • Brand Name:Kingsun
  • Dimension(L*W*H):1000X1740X1800mm
  • Weight:1000
  • Certification:CE
  • Application:Other
  • Packaging Type:wooden case
  • name:T400CS Horizontal wrapping machine machine
  • body material:paint

T400CS Horizontal wrapping machine machine



Products Feature:

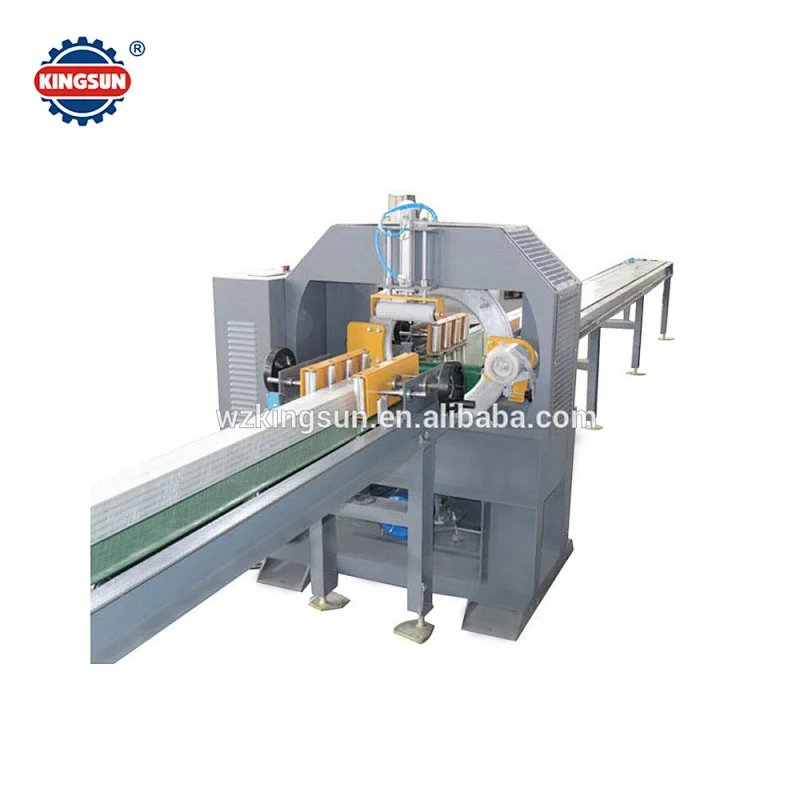

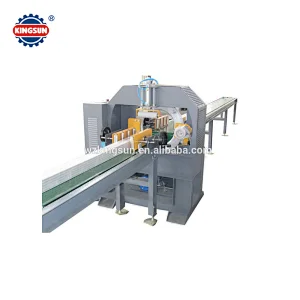

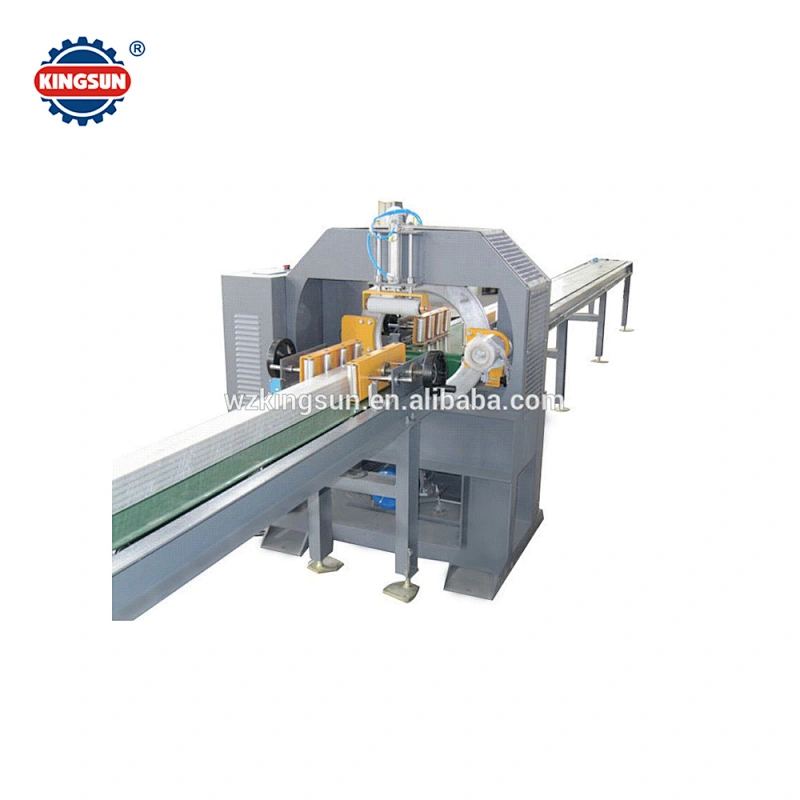

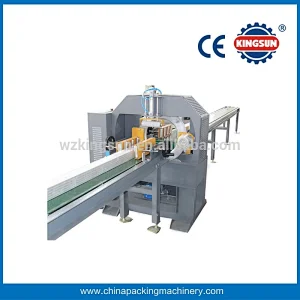

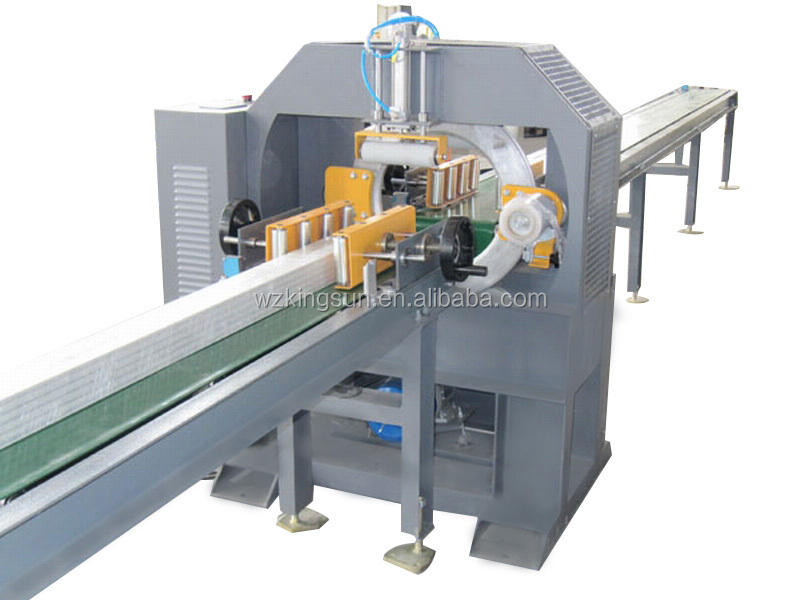

T400CS Horizontal wrapping machine machine is an ideal solution for wrapping stretch film on the length product similar Aluminum shape, timber, textiles etc. Stretch film wrapping provide a perfect tightness, protect the product from damage during transportation.



Technical Specification



Model

T400CS

Inner diameter

Φ400mm

Wrap speed

80rpm

Wrap size(W×H×L)

250 × 250 × ≥600mm

Transport speed

8-15 m/min

Dimension and material of packing

Material

LLDPE stretch film,VCI Anti-rust Film,woven belt,Plastic film etc.

Bore

Φ38,Φ50,Φ75mm

External diameter

Φ200mm

Breadth

150mm

Power

0.75Kw

Pneumatic system

0.4-0.8Mpa,800ml/min

Conveyor(Optional)

Roller conveyors,Rubber belt conveyors,Chain conveyors,Chain-plate conveyors etc.





is an ideal solution for wrapping stretch film on the length product similar Aluminum shape, timber, textiles etc. Stretch film wrapping provide a perfect tightness, protect the product from damage during transportation.



Technical Specification

Model

T400CS

Inner diameter

Φ400mm

Wrap speed

80rpm

Wrap size(W×H×L)

250 × 250 × ≥600mm

Transport speed

8-15 m/min

Dimension and material of packing

Material

LLDPE stretch film,VCI Anti-rust Film,woven belt,Plastic film etc.

Bore

Φ38,Φ50,Φ75mm

External diameter

Φ200mm

Breadth

150mm

Power

0.75Kw

Pneumatic system

0.4-0.8Mpa,800ml/min

Conveyor(Optional)

Roller conveyors,Rubber belt conveyors,Chain conveyors,Chain-plate conveyors etc.
