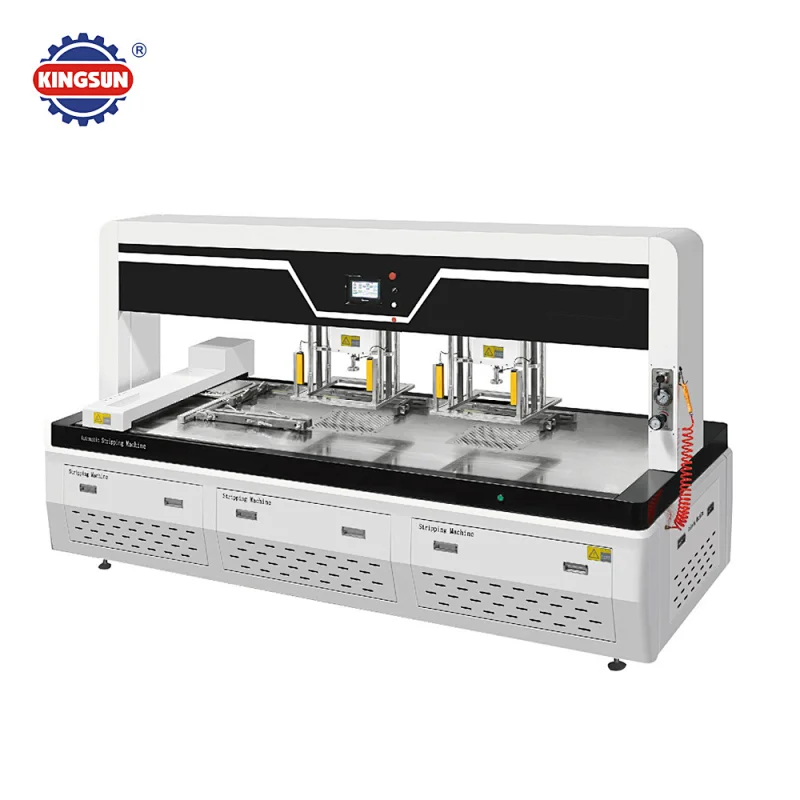

TM-1080 High Quality Double Station Plastic Waste Stripping Machine
Characteristics:
The automatic stripping machine replaces manual demolition, saving manpower and improving product quality and enterprise efficiency.
1·Professional equipment for automatic edge-cutting and taking of other small packages such as automatic die-cutting and semi-automatic die-cutting, such as cardboard, trademark (tag), plastic sheet.
2·The machine adopts the latest hydraulic cylinder system, high-precision screw guide and modern program controller to ensure the durability and safe operation of the machine.
3·The worktable is chrome-plated and the thimble is automatically locked for easy adjustment.
Technical parameters:
| Model | TM-1080 |
| Maximum stack size | 1080X780mm |
| Minimum stack size | 600X400mm |
| Maximum stack height | 100mm |
| Minimum stack height | 40mm |
| Table height | 850mm |
| Maximum stripping size | 550X550mm |
| Minimum stripping size | 30X30mm |
| Stripping speed | 25 Times/min |
| Maximum pressure | 90 Bar |
| Overall dimensions | 3750X1800X1900mm |
| Machine net weight | 2400kg |
| Power voltage | 360-420V |
| Frequency | 50/60Hz |
| Maximum power consumption | 5.5kw |
| Insurance maximum current | 10A |
| Air consumption | 2L/min |
| Compressed air | 4-7 Bar |
| Input power | 3 Phase |
1.How to place an order with Kingsun Machinery
It is quite easy for the procedures of placing an order with Kingsun machinery. 1) Firstly our sales team (together with engineers) will discuss with you about the technical requirement, 2) After finalized the specification, we will issue you a proforma invoice or contract, then you make deposit and we start the production. 3) When we finish the production, we will send you video or photos for check, if everything is fine, we test run the equipment again before shipment and then prepare the shipment for you. 4) You make the payment, we ship the goods to the address you given. 5) You receive the machines, we start after sale service. For example, we send technician to visit your factory for installation etc.
2.What are the customers more care about?
Kingsun machinery has established good relationship with thousands of buyers from all around the world since 12 year ago. Good service and quality of equipment is most important for the buyers, we are focus on providing first class service for the buyers.
3.How does Kingsun company help you ?
We help you to choose suitable models, fit for your production. We are trust worthy company so you no need to worry about the safe of payment, no worry about machine quality and after sale services etc.
4.Why choose Kingsun company as your partner in China?
Professional service, honesty and reliable is our philosophy, win-win cooperation, we take much care of you and in view of long term relationship!
