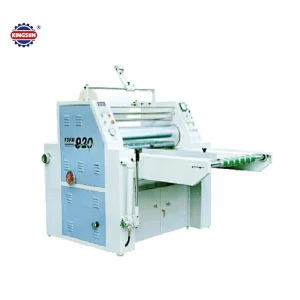

YDFM Series Hydraulic Type Manual Thermal Film Laminating Machine
YDFM Series Hydraulic Type Manual Thermal Film Laminating Machine

YDFM Series Hydraulic Type Manual Thermal Film Laminating Machine

Model NO.
YDFM-720/920/1200
Quantity:

YDFM Series Hydraulic Type Manual Thermal Film Laminating Machine

YDFM series of hydraulicThermal Film laminating machine is compact and economic model laminator machine. It adopts the designs of manual feeding, manual hydraulic pressuring system, automatic lamination and auto paper winding. Laminated paper shall be cut by manual work. The reasonable structure saves the occupation of floor area so much. Manual hydraulic pressuring system provides big pressure to guarantee good laminating quality. Excellent laminating performance solves completely the problem of snowflake spots in traditional lamination, and perfects products quality and also reduces users’ production costs so much. So this type of laminator is a wonderful choice for laminating process to medium and small enterprises.

Features

1. One-piece construction design makes the machine run more stably, and lengthens the machine’s lifetime.

2. Manual paper feeding.

3. Regulating plate can be adjusted easily to regulate manual paper feeding.

4. High precision of chrome plated heating roller is equipped with built-in electrical tube heater which makes temperature rise quickly. The laminating temperature is adjustable upon applications.

5. Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.

6. Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.

7. Film perforating wheel perforates film edge to make the separation of laminated paper easy.

8. Laminated paper is rolled up automatically by the winding spindle. Winding speed is adjustable upon requests. Winded paper shall be cut by manual work.

Model

YDFM-720

YDFM-920

YDFM-1200

Max Laminating Width

600mm

800mm

1080mm

Laminating Speed

0-30 m/min

0-30 m/min

0-30 m/min

Laminating Temperature

60-130

60-130

60-130

Motor Power

1.1kw

1.5kw

2.2kw

Heating Power

8kw

8kw

10kw

Total Weight

470kg

520kg

600kg

Overall Dimensions

1900*1300*1600mm

1900*1500*1600mm

1900*1700*1600mm
