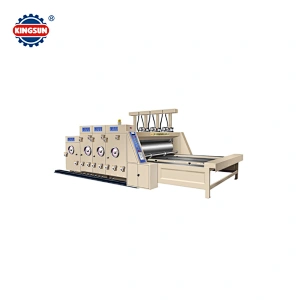

YKMZ-2500 Flexo Printer Slotter
YKMZ-2500 Flexo Printer Slotter

YKMZ-2500 Flexo Printer Slotter

Model NO.
YKMZ-2500
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
15 set / Month
Country of Origin:
Shanghai
Quantity:

YKMZ-2500 Flexo Printer Slotter

Main Mechanism Function:

1.Semi-automatic flexo printing & slotting machine is feeding by chain pushing in transverse direction; printing, pressing, slotting, trimming and die-cutting just in one step.

2.Auto-counting production units.

3.Mechanism unit uses pneumatic inter lock and can be separated.

4.The transmission gears made of high quality steel under accurate treatment. Spraying circulation is adopted to lubricate the gears, reducing noise and prolonging the service life.

5.The anilox roll with automatic pressing up and down feeding system; the automatic idle-running function of the rubber roll can prevent the ink from drying when the operation is paused.

6.Printing and slotting phase adjustment, harmonic device and transducer control the dynamic and static 360ℴ electric adjustment, fast and convenience.

7.Using hanging style controlled by foot switch, convenience and fast.

8.Manual control of printing cylinder transverse register (20mm)

Main Specifications:

Machine model

2200

2500

2800

Max speed (pcs/min)

70

70

70

Max feeding size(mm)

2270×1370

2600×1370

2900×1370

Max printing area(mm)

2100×1300

2400×1300

2700×1300

Min paper size(mm)

650×380

650×380

650×380

Min slotting depth(mm)

350

350

350

Min slot distance(mm)

150

150

150

Machine power (kw)

8.45

8.45

8.45
