YT Series Flexographic Printing Machine

• Type:Flexographic Printer
• Place of Origin:China
• Weight:4500KGS
• Usage:Paper Printer
• After-sales Service Provided:Engineers available to service machinery overseas
• Model Number:YT series
• Brand Name:kingsun
• Color & Page:MULTICOLOR
• Condition:New
• Gross Power:35KW
• Dimensions(L*W*H):2,300 x 1,660 x 2,950mm
• Voltage:380v
• Automatic Grade:semi-automatic
• Certification:ISO9001
• Plate Type:letterpress
• Usage:shopping bag printer

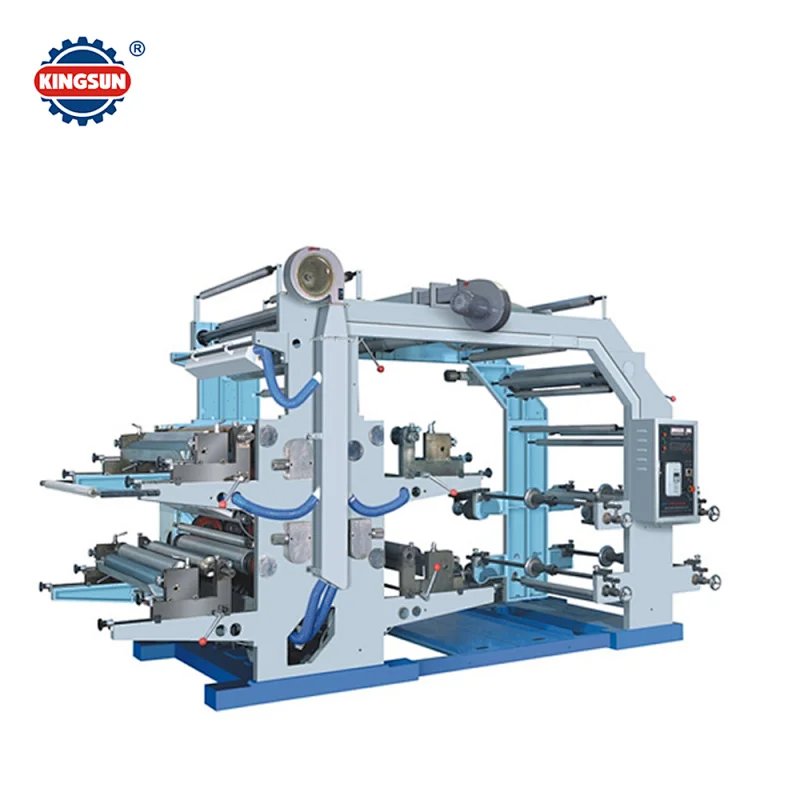

YT Series Flexographic Printing Machine

Features of machine:
1) Easy operation, flexible starting, accurate color register structure
2) The meter counter can set printing quantity according to the requirements. Stop the
machine automatically when reach the quantity or when the material is cut off
3) Lift and lower the printing plate cylinder manually, it will automatically stir the
printing ink after lifting
4) The printing ink is spread by the anilox cylinder with even ink color
5) Reliable drying system coordinated with high-speed rotation, it will automatically
break circuit when the machine stops
6) 360-degree continuous and adjustable longitudinal register device
7) The imported frequency inverter for motor speed control can adapts to different
printing speeds
8) There are inching and stopping buttons on the plate roller base and material rolling
rack so as to make it easy operate the machine when the plate is installed
9) There are two colors, four colors, and six colors machine, 600/800/1,000mm width
available

Specifications of machine:
1) Model of machine: YT600, YT800, YT1000
2) Max. printing width: 560mm, 760mm, 960mm
3) Range of printing length: 191 - 914mm
4) Max. diameter of material: 450mm
5) Printing speed: 5 - 50m/min
6) Plate thickness (both-side adhesive tape included): 2.38mm
7) Total power: 13kW, 15kW, 18kW
8) Weight of machine: 3,500kg, 4,200kg, 5,000kg
9) Overall dimensions: 2,300 x 1,660 x 2,950mm, 2,300 x 1,860 x 2,950mm, 2,300 x 2,060 x 2,950mm
