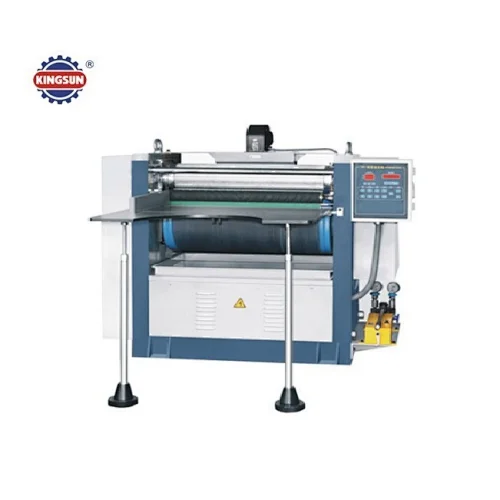

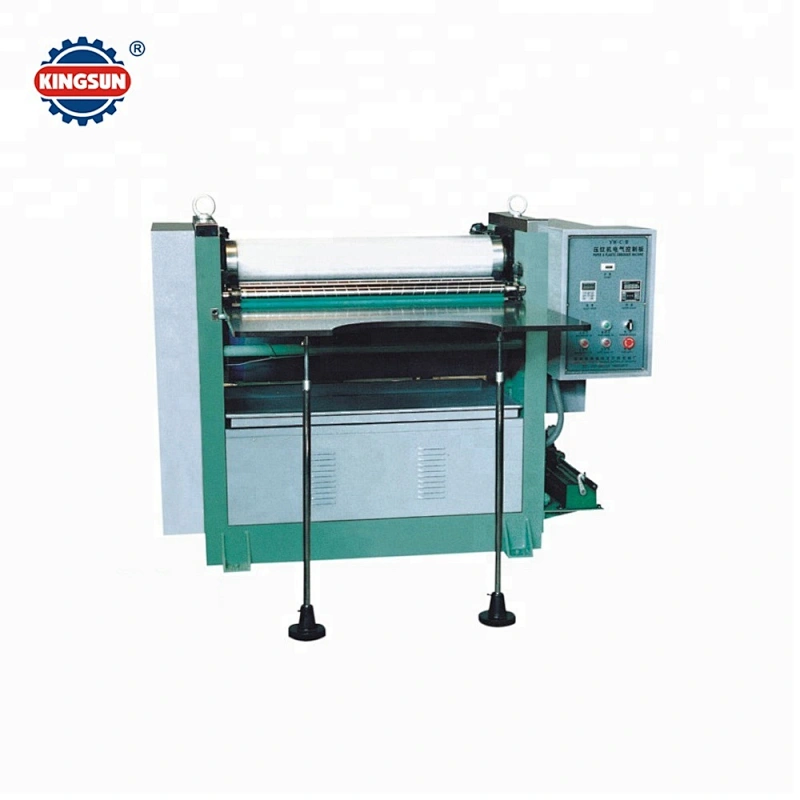

YW-C Series Sheet Feed Paper Embossing Machine
YW-C Series Sheet Feed Paper Embossing Machine

YW-C Series Sheet Feed Paper Embossing Machine

Model NO.
YW-720/920/1200/1300
Quantity:

YW Series Sheet Feed Paper Embossing Machine

This machine is a new kind of embossing equipment. It is apply for surface embossing for various packaging decoration, invitation card, name card, book cover, calendars,as well as leather and plastic products etc, the embossed products will have tridimensional result, increase the beauty appearance, improve the grade of the products.


Features:

1.Anti-wrinkle curved roll pressure mechanism.

2.It will stop automatically when becoming abnormal super-thickness

3.It will release the pressure when stopping;

4.Automatic photo-electricity to count;

5.Stop automatically by brake system when emergency

6.With alarming system.

7.Different texture design for option

Main specifications:

Model

Line-impressing

(mm)

Paper Range(g/m)

Working Pressure

(Mpa)

Motor Power

(kw)

Heat

Power

(kw)

Total

Weight(kg)

Dimensions (mm)

YW-720C

720

>80

5-10

3

2

1500

1700×970×1850

YW-920C

920

>80

5-10

4

3

1800

1900×970×1850

YW-1150C

1150

>80

5-10

4

3

2200

2100×970×1850

YW-1300C

1300

>80

5-10

5.5

3

2600

2300×970×1850
