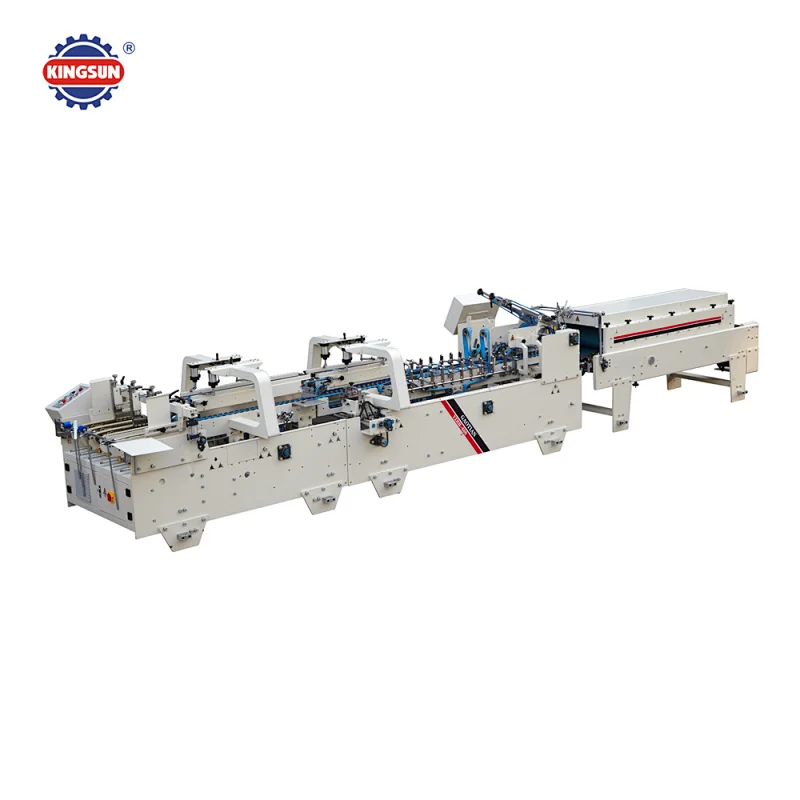

YZHH Series High Speed Pre-folding Automatic Carton Folder Gluer
YZHH Series High Speed Pre-folding Automatic Carton Folder Gluer
YZHH Series High Speed Pre-folding Automatic Carton Folder Gluer

YZHH Series High Speed Pre-folding Automatic Carton Folder Gluer

Model NO.:
YZHH-600 800
Quantity:

YZHH Seies High Speed Pre-folding Automatic Folder Gluer

This series machine with pre-folding function is suitable for making medicine paper
box, cosmetic box, electric components box, CD case. With features
of high speed, reasonable design, wide width and adoption of latest technology,
it is an ideal machine for printing and packaging industries.
The machine consists of vibration motor, control unit, feeding unit, pre-folding
unit, folding unit, gluing unit, pressing unit, conveyor, counting, and delivery
unit.

Specifications:
1) Speed: 0 - 220m/min

2) Suitable paper: 210 - 600gsm board
3) One-fold 180 degrees and three-fold 90 degrees
4) Gluing type: side gluing or two side gluing
5) Voltage: one phase AC 220V/5kW or specially made
6) Weight: about 2,500kg
7) Outer dimensions: 8,000 x 1,200 x 1,300mm
8) Counting range: 0 - 999,999pcs (automatically)

Packing: pallet or wooden case
